Miniature Quick Wire Thermocouple Connector Socket AM-E-FQ Type E ANSI

Miniature Quick Wire Thermocouple Connector Socket AM-E-FQ Type E ANSI

Details

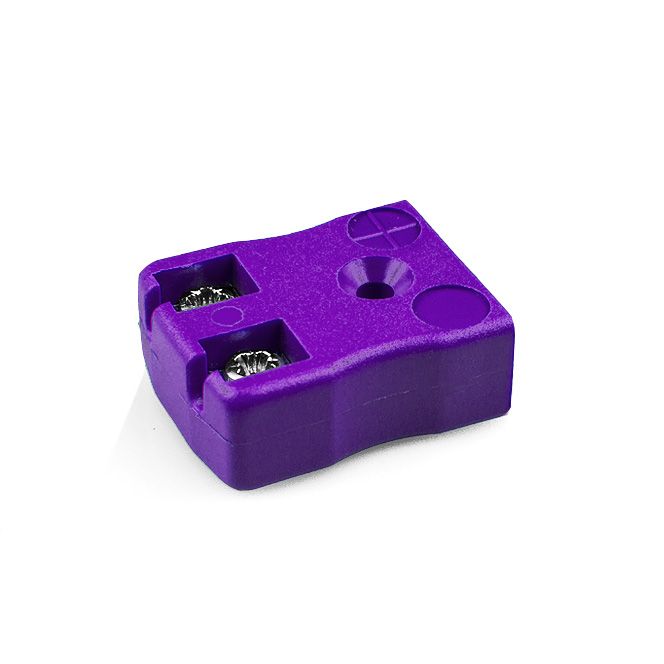

Miniature Quick Wire Connector Thermocouple Socket AM-E-FQ Type E ANSI

Easy jab-in connection, just push in wire & tighten screw. Contacts are polarised to prevent incorrect termination.

*** See specifications tab for full details ***

General Description Easy jab-in connection, just push in wire & tighten screw.
Thermocouple Type E ANSI
Connector Type Quick Wire Socket
Connector Size Miniature
Colour Violet
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
+Positive Contact Nickel Chromium
-Negative Contact Copper Nickel
Standards Met BS EN 50212:1997. RoHS
Data Sheet & Schematic - AM-E-FQ Data Sheet & Schematic - AM-E-FQ
Frequently Asked Questions Frequently Asked Questions
Colour Chart - Thermocouple Cable Colour Chart - Thermocouple Cable
Brochure - Connectors Brochure - Connectors
Product Focus - Connectors brochure Product Focus - Connectors brochure
Wall Chart Wall Chart
Colour Chart - Connectors Colour Chart - Connectors
GBP EUR USD JPY
Excl. VAT: £2.62 Incl. VAT: £3.14
  • Buy 2+ for £2.01 (£2.41 incl. VAT) each
  • Buy 10+ for £1.85 (£2.22 incl. VAT) each
  • Buy 50+ for £1.55 (£1.85 incl. VAT) each
Labfacility Part No:
XE-9042-001
Lead Time:
In-Stock
Tariff Code:
90330000
Product Code
AM-E-FQ
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
RoHS
