Miniature Thermocouple Connector Plug FMTC-CU-M Type Cu

Change Currency

SKU
XE-1370-001
£3.86 £3.22
  • Buy 2 - 9 for £3.23 £2.69 each
  • Buy 10 - 99 for £2.75 £2.29 each
  • Buy 100+ for £2.58 £2.15 each
Series:
Miniature Connector
Lead Time:
In-Stock
Weight:
6g
Tariff Code:
85369010
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

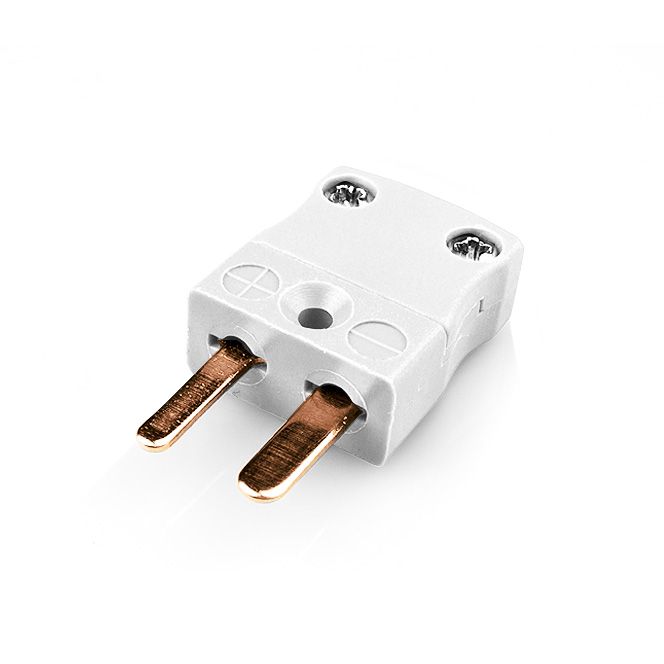

Miniature Thermocouple Connector Plug FMTC-CU-M Type CU

With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.

Specifications

General Description Ideal for general purpose use. Contacts are polarised to ensure correct connection.
Thermocouple Type IEC, ANSI, JIS Type CU
Connector Type Plug
Connector Size Miniature
Colour White
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
Pins Flat Pins
+Positive Contact Copper
-Negative Contact Copper
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature IEC Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
