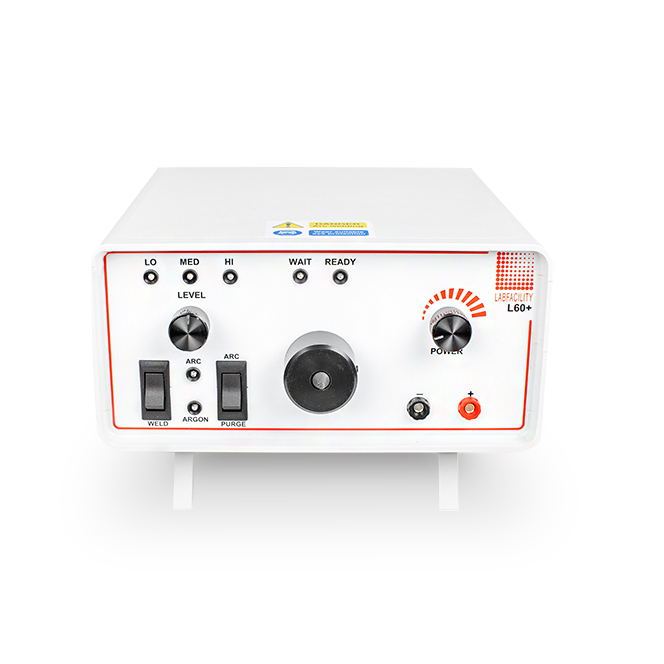

L60+ Thermocouple Welder & Accessories

The Thermocouple Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.

The L60+ Thermocouple & Fine Wire Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.

It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions; it is ideal for producing large numbers of exposed junction thermocouples for test and development laboratories. The L60 Thermocouple Welder is ideally suited to transducer and RTD extension lead attachment.

Use of the Thermocouple Welder does not require special skills and most operatives will be capable of producing quality work with little practice. The instrument is supplied with a full range of user accessories including a footswitch.

Suitable for use with wires of up to 1.1mm diameter an argon gas shield facility is included but a satisfactory thermocouple junction is produced without the need for argon. The output energy of the L60 Thermocouple Welder can be varied up to 60 Joules.

  • Simple to use Thermocouple Welder
  • Designed for the production of commercial grade thermocouple junctions
  • Also suitable for other fine wire work
  • Front panel or footswitch operation
  • Argon gas shield facility

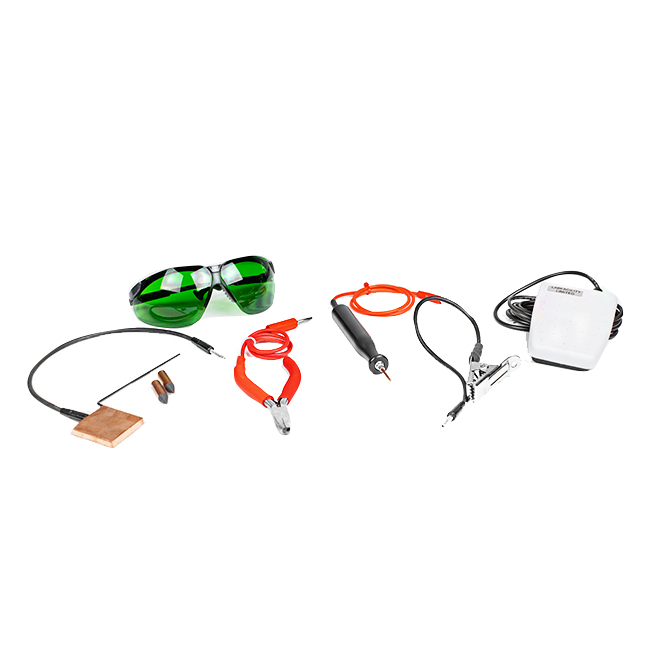

Supplied complete with the following accessories, or available separately:

Impact Clip
Wire Holding Pliers & Lead Safety Glasses Magnifying Eyeglass
Argon Hose Carbon Electrodes Spare 2A Fuse & Mains Lead
Footswitch for greater ease of use

Welder Pen & Plate



Frequently Asked Thermocouple Welder Questions

It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions - ideal for producing large numbers of exposed junction thermocouples for test and development laboratories.

Use of the Thermocouple Welder does not require special skills and most operatives will be capable of producing quality work with little practice. The instrument is supplied with a full range of user accessories including a footswitch.

The Thermocouple Welder is supplied with a full range of accessories including the foot switch, safety glasses, carbon electrodes, pliers, argon hose, spare fuse and mains lead.

Labfacility offer a bundle page option allowing customers to add extra accessories, cable and connectors to use with the Thermocouple Welder.

See our product page for demonstration video and PDF data sheets / instruction manuals for the Thermocouple Welder.
