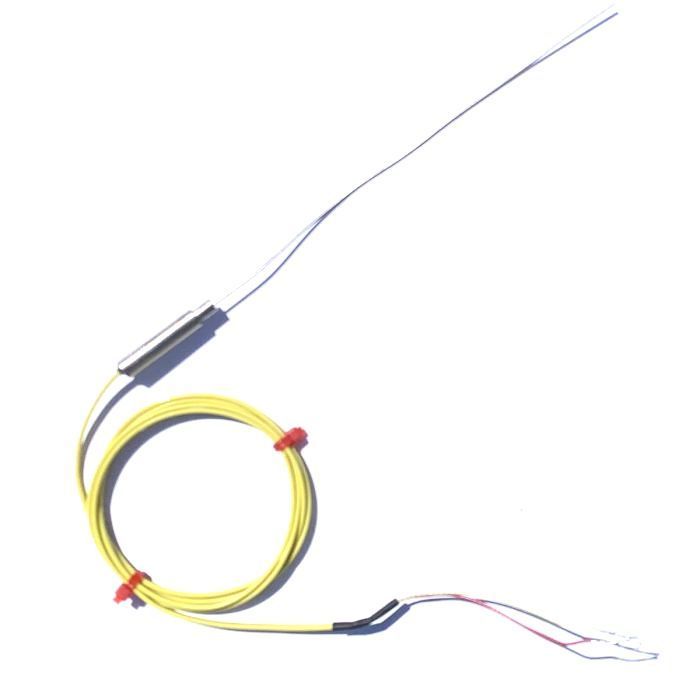

0.25mm Diameter Fast Response Mineral Insulated Thermocouple with Plain Pot & PFA ANSI Tails - Type K - Grounded Junction - 100mm Length
Change Currency
- Buy 5+ for £50.20 £41.83 each
Please use our custom sensor forms to submit your requirements for various lengths of MI and Cable lengths.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Type K ANSI MA STYLE probes 0.25mm |
| Thermocouple Junction | Single element, grounded junction |
| Probe Length | 100mm |
| Sheath Material | Stainless steel 316 sheath |
| Pot Type | Plain pot seal (200°C) |
| Cable Length | 500mm |
| Cable Type | PFA insulated lead |
| Core / Strands | 7/0.2mm |
| Cable Termination | Flat pair with tails |
| Max. Temperature | 260°C |
| Min. Temperature | -40°C |
| Tolerance | A 1%+ Length Tolerance applies |
| Standards Met | ANSI |
