Fabricated and Specialist Thermocouples ANSI

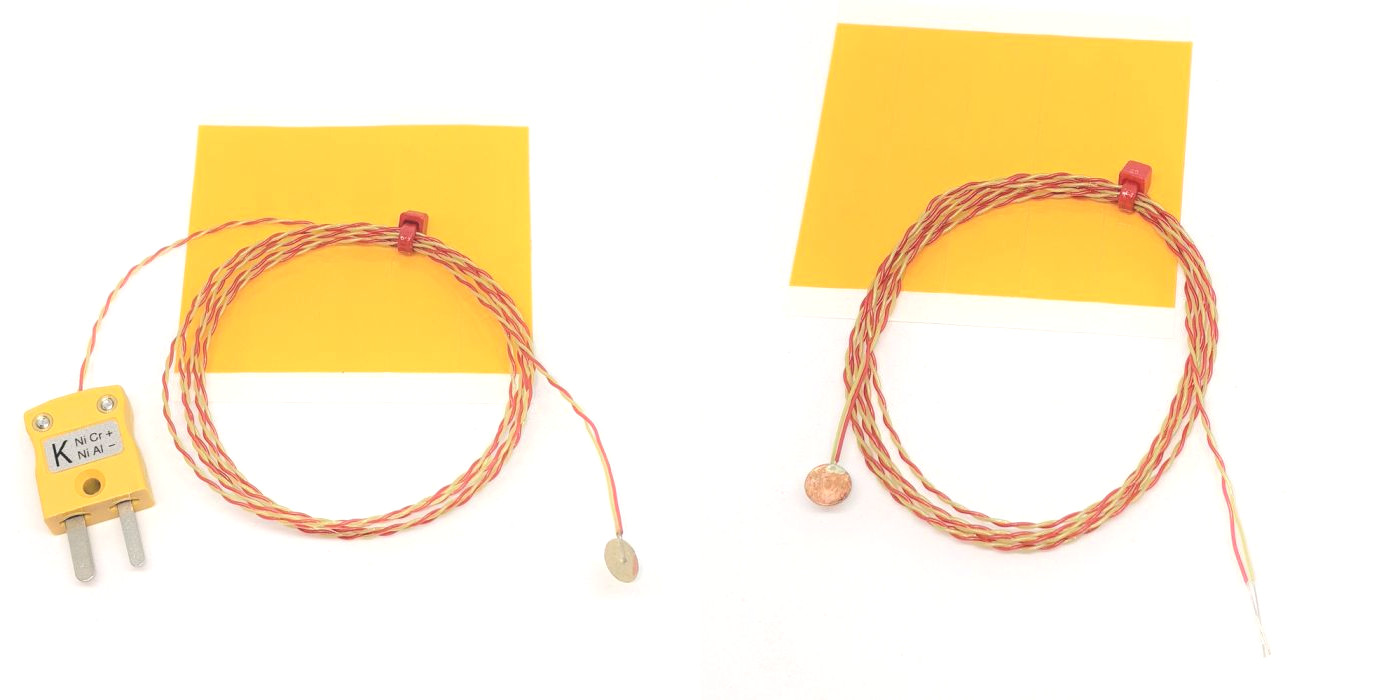

Exposed junction thermocouple with Copper Disc brazed at tip. Copper disc, 6.35mm diameter x 0.3mm thick. ANSI Type K.

Available variations

Bare Tails or Miniature Plug Termination

1M, 2M, 5M Length

Screw in type K temperature sensors with a measuring range of -75 to +250°C and 1 metre PFA flat pair lead wire.

Available for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement.

Available variations

1/4"BSPP, 1/2"BSPP, 1/4"NPT, 1/2"NPT Process Connection Types

50mm, 100mm, 150mm, 200mm Sheath Length

3mm, 6mm Sheath Diameter

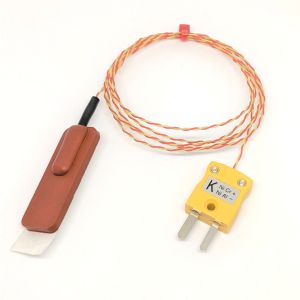

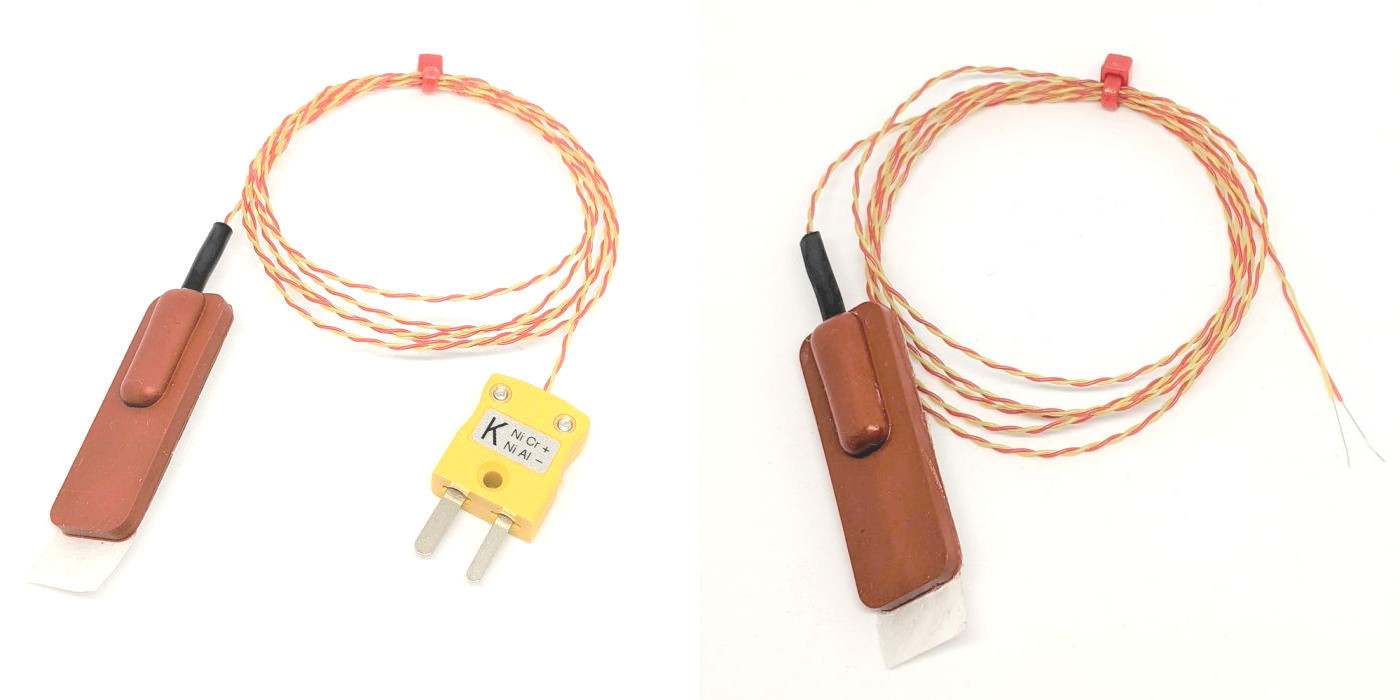

Resistant to many oils & chemicals, thermocouple junction encapsulated in a silicone rubber patch. ANSI Type K.

Available variations

Bare Tails or Miniature Plug Termination

1M, 2M, 5M Length

Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C. ANSI Type K with 1mm pitch.

Available variations

M8, M10, M12 Thread

13mm, 25mm Bolt.

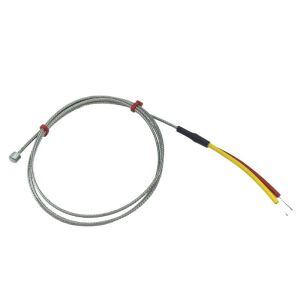

Designed to be embedded into the pads, each sensor has 1m of fibre glass insulated cable, with stainless steel Overbraid. Available in thermocouple type K  and with a choice of tip diameters. Each tip is sealed with a high temperature ceramic paste (Fortafix) which can withstand temperatures up to +400°C. ANSI Type K.

Available variations

3.2mm, 4.0mm, 6.0mm Diameter

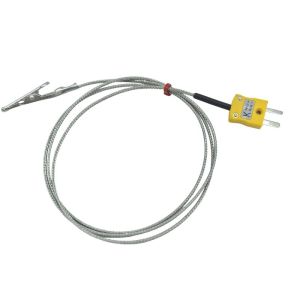

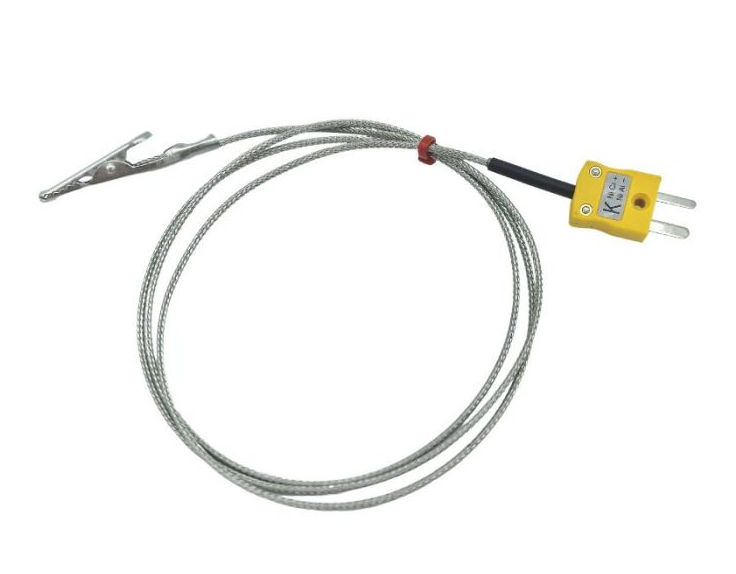

Crocodile Clip Thermocouple with Glassfibre Stainless Steel Overbraided Cable, grounded measuring junction. ANSI Type K.

Available variations

1M, 3M Length

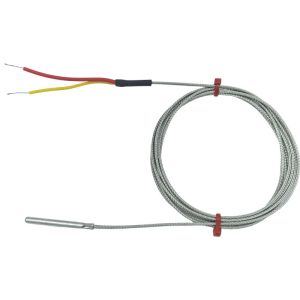

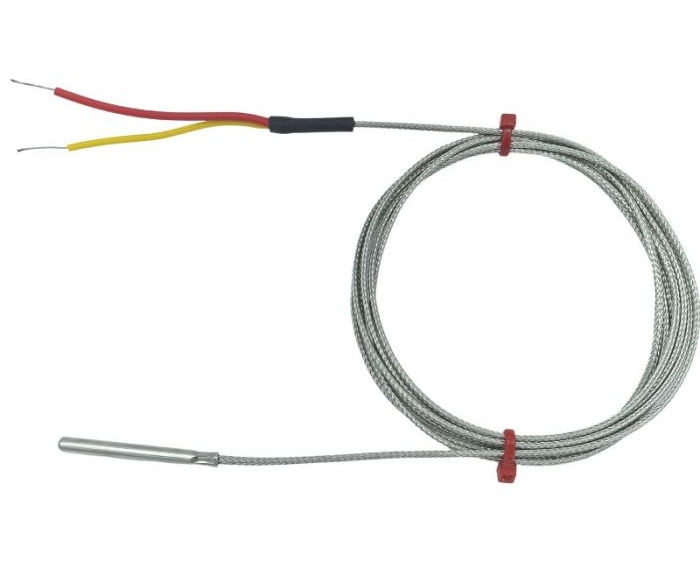

316 stainless steel tube grounded at tip for fast response. ANSI Type K

Available variations

3.18mm, 4.0mm, 4.76mm Diameter

13mm, 25mm, 40mm, 75mm, 100mm Length

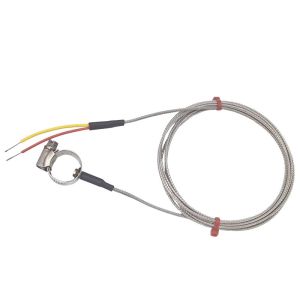

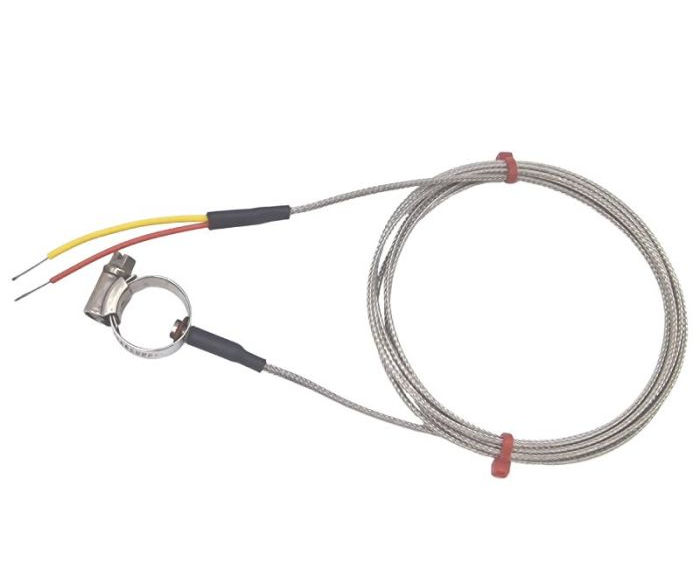

Stainless steel pipe clamp sensor with adjustable diameter, grounded tip for fast response. ANSI Type K.

Available variations

To suit pipe diameters 13-20mm, 22-30mm, 30-45mm, 40-55mm

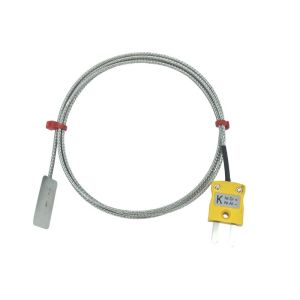

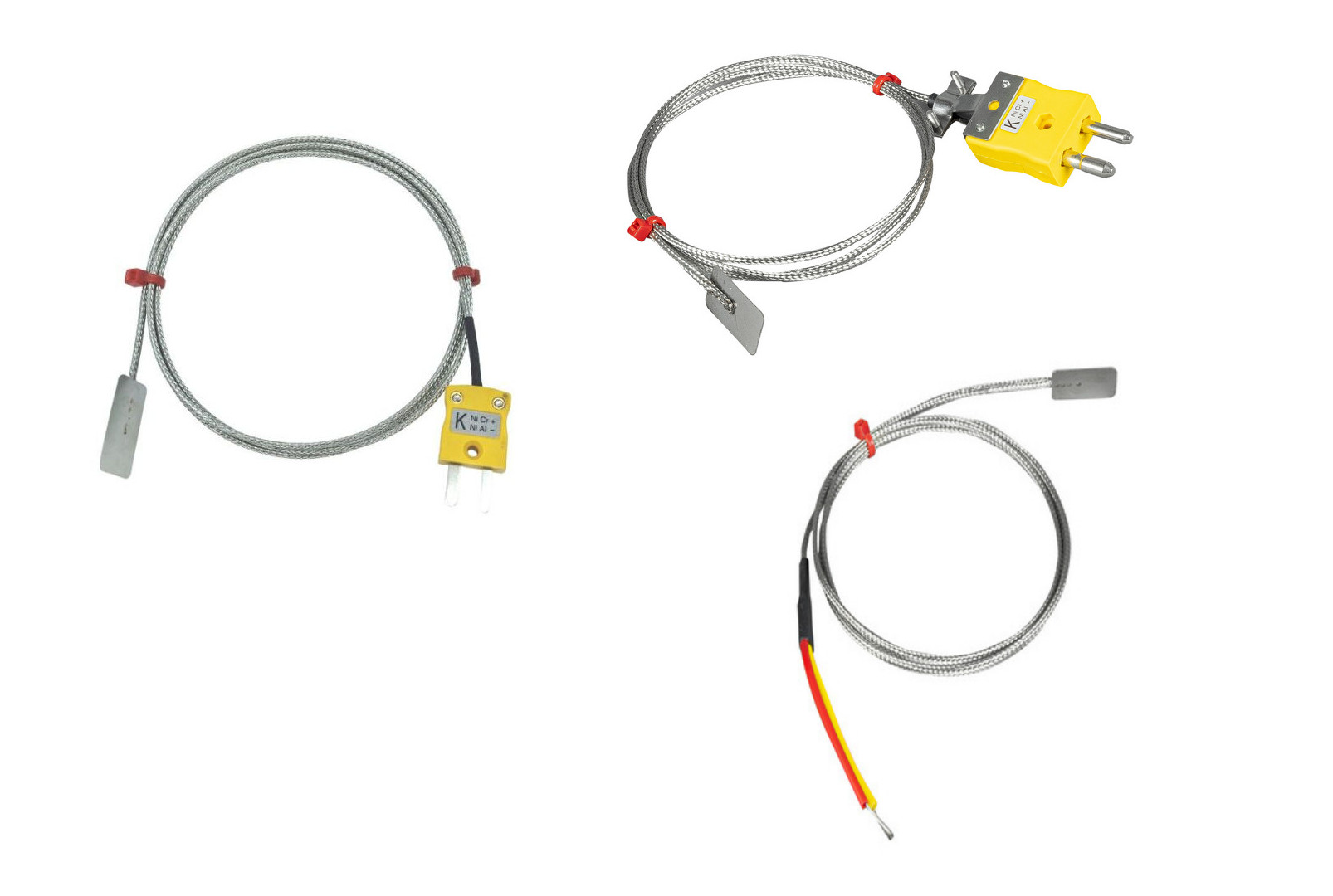

Thermocouple mounted on a stainless steel shim, junction grounded at tip for fast response. ANSI Type K.

Available variations

Bare Tails, Miniature Plug, Standard Plug Termination

1M, 2M, 3M, 5M Length

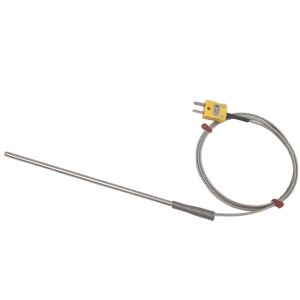

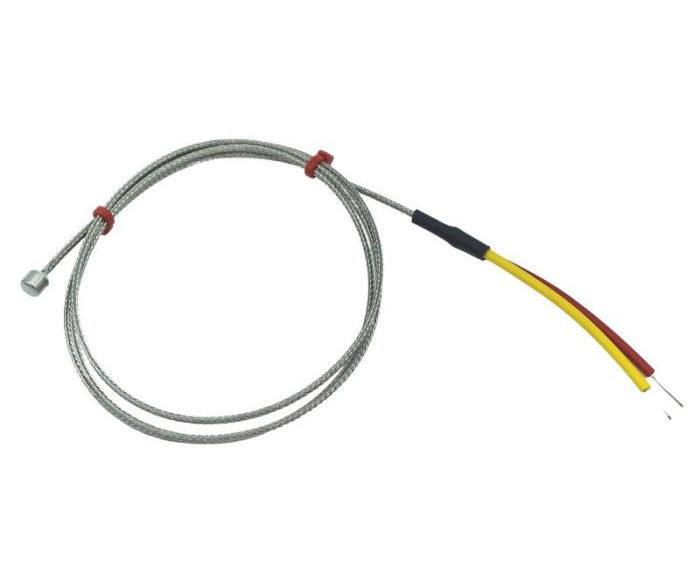

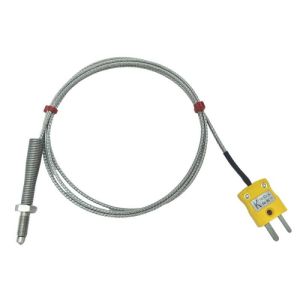

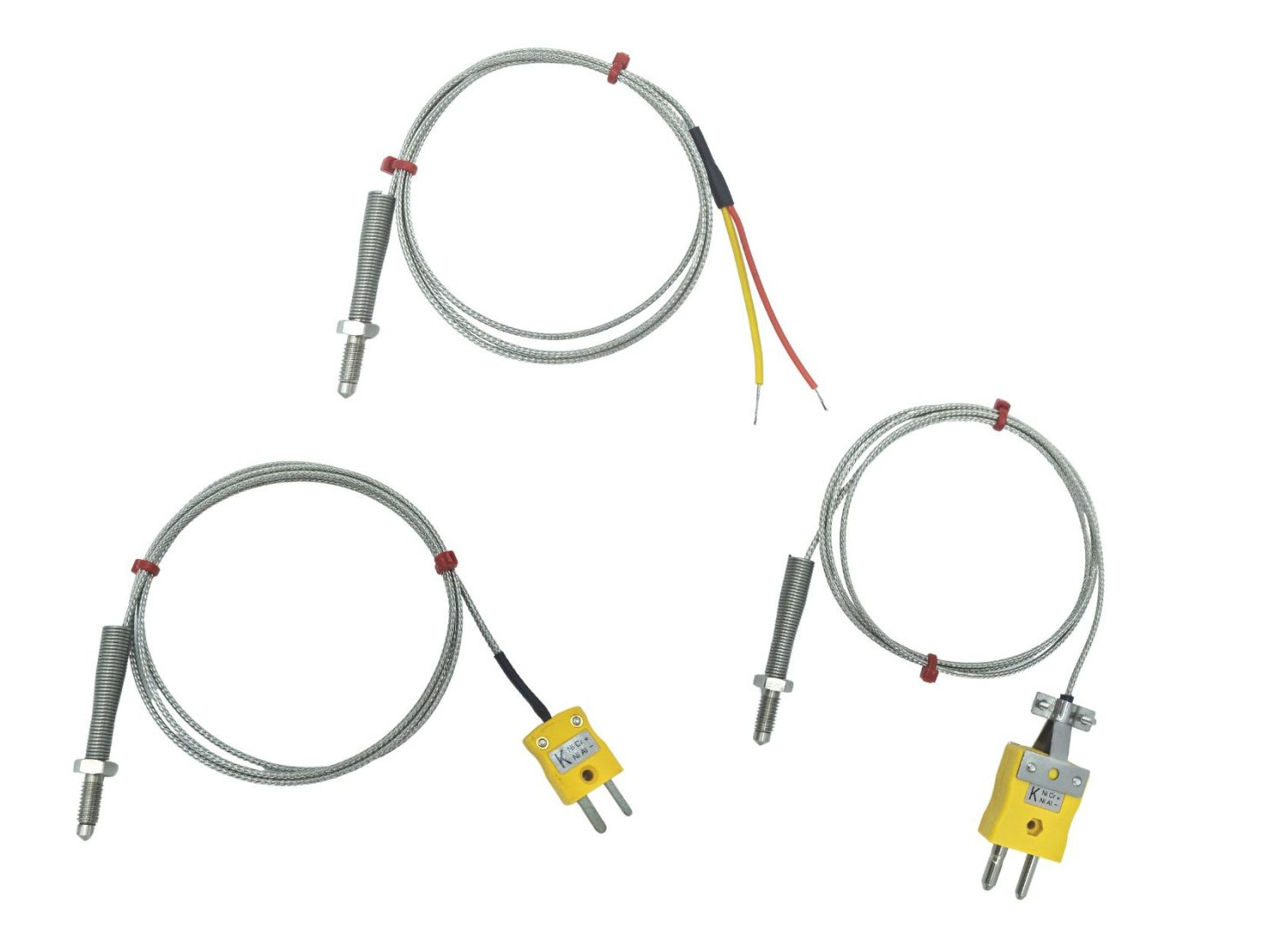

Rugged thermocouple with stainless steel sheath, grounded hot junction for fast response. ANSI Type K.

Available variations

Bare Tails, Miniature and Standard Plug Termination

1M, 2M Length

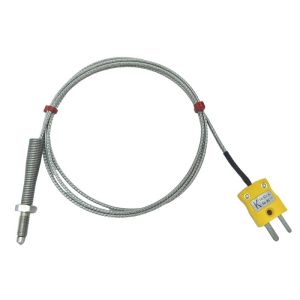

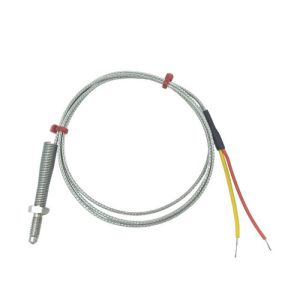

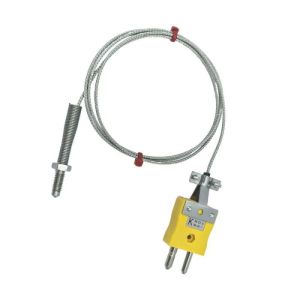

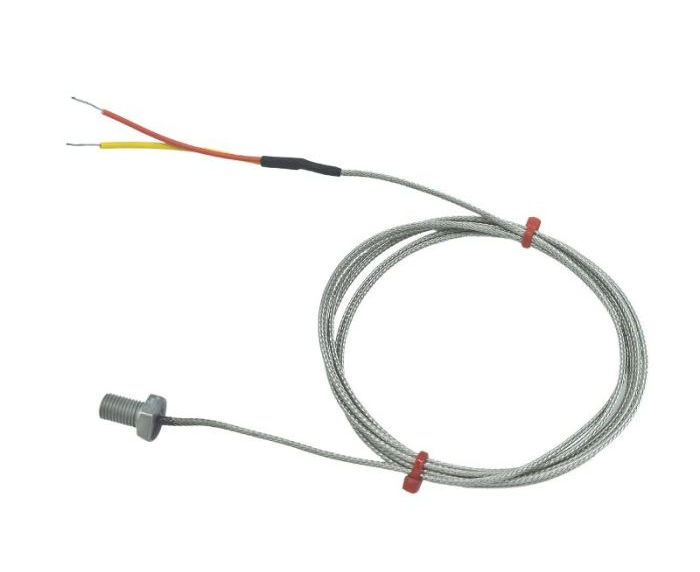

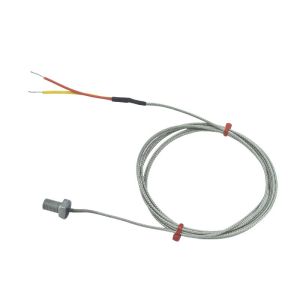

Thermocouple housed in a stainless steel threaded bolt, grounded hot junction for fast response, M6x1mm thread. ANSI Type K.

Available variations

Bare Tails, Miniature or Standard Plug Termination

1M, 2M, 5M Length

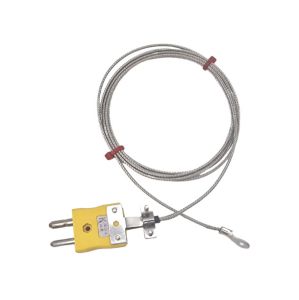

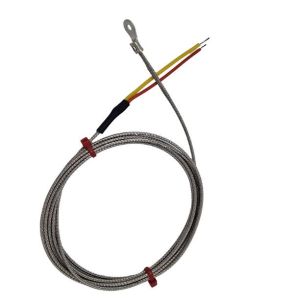

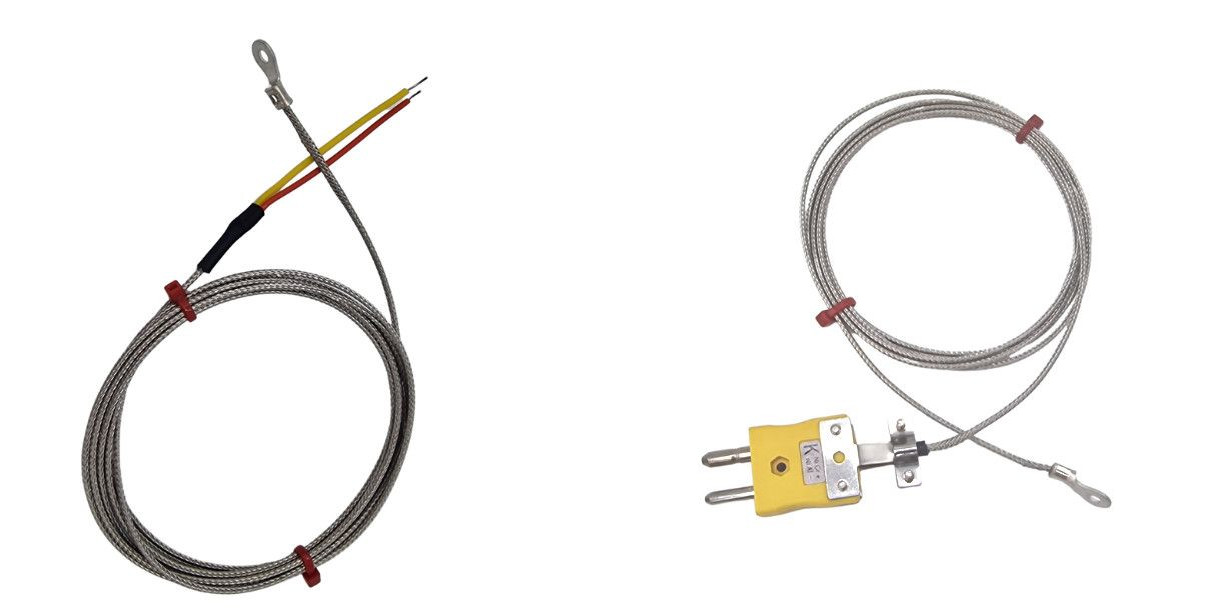

Thermocouple housed in a washer eyelet, grounded tip for quick response. ANSI Type K.

Available variations

Bare Tails or Standard Plug Termination

3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm Washer Hole Size

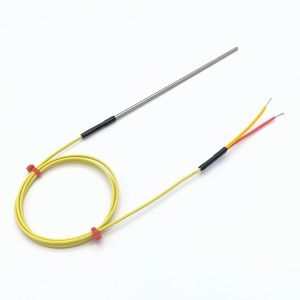

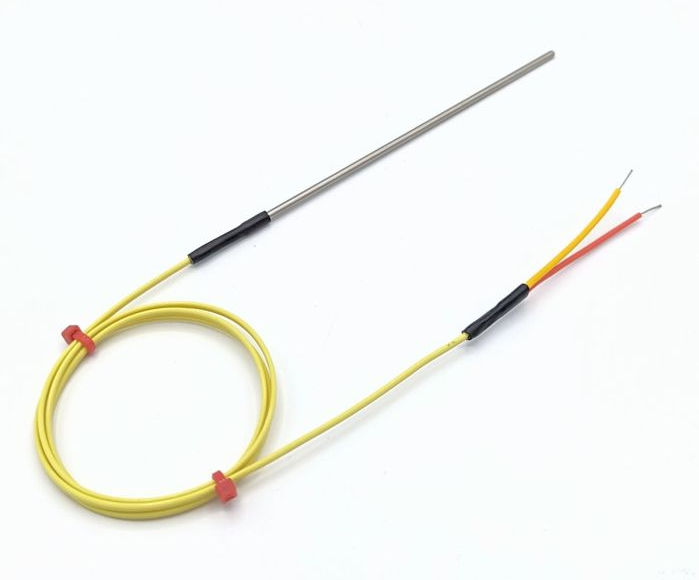

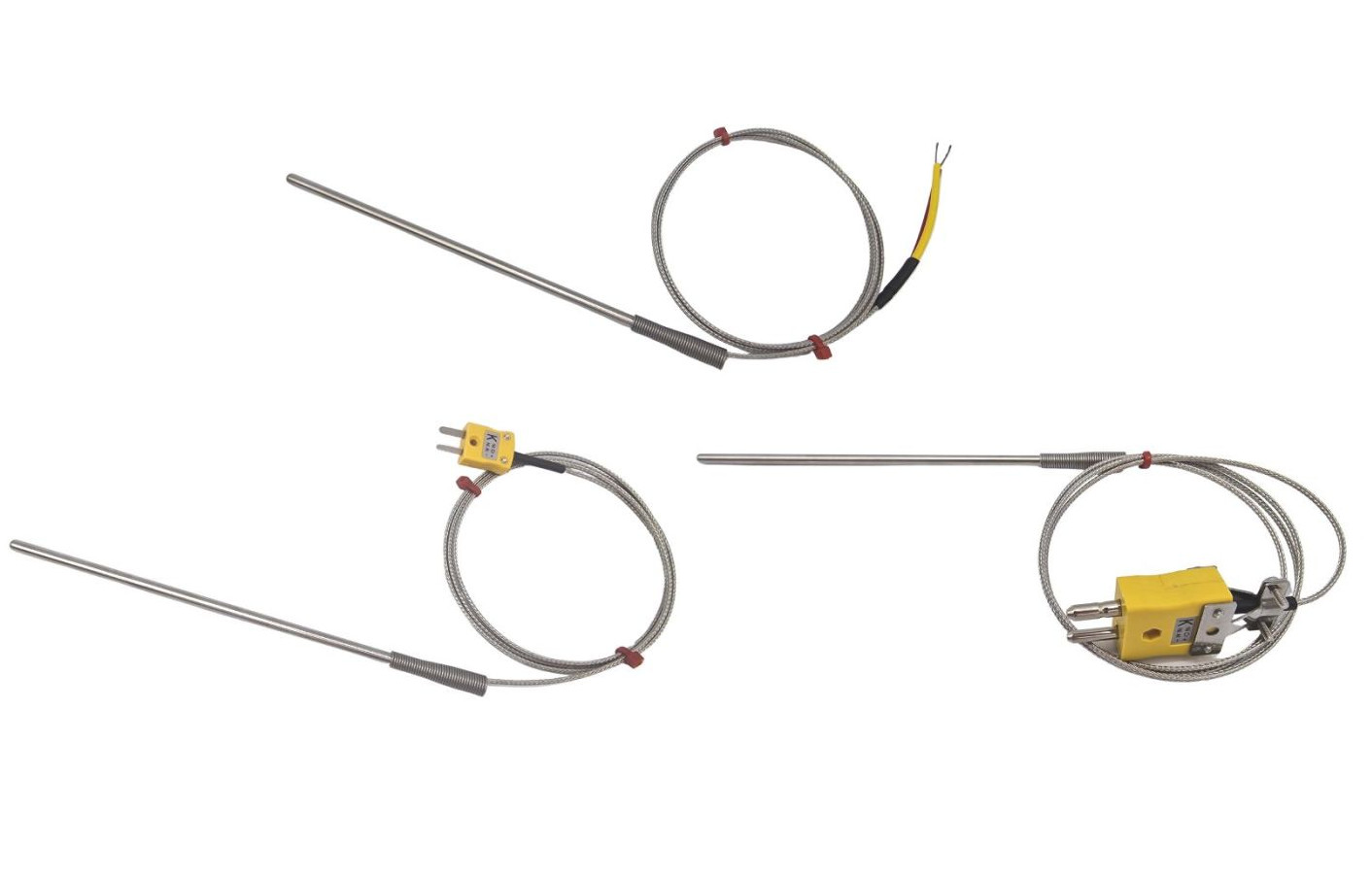

A fabricated ANSI thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire. ANSI Type K.

Available variations

3.0mm, 4.5mm, 6.0mm Sheath Diameter

50mm, 100mm, 150mm, 250mm Sheath Length

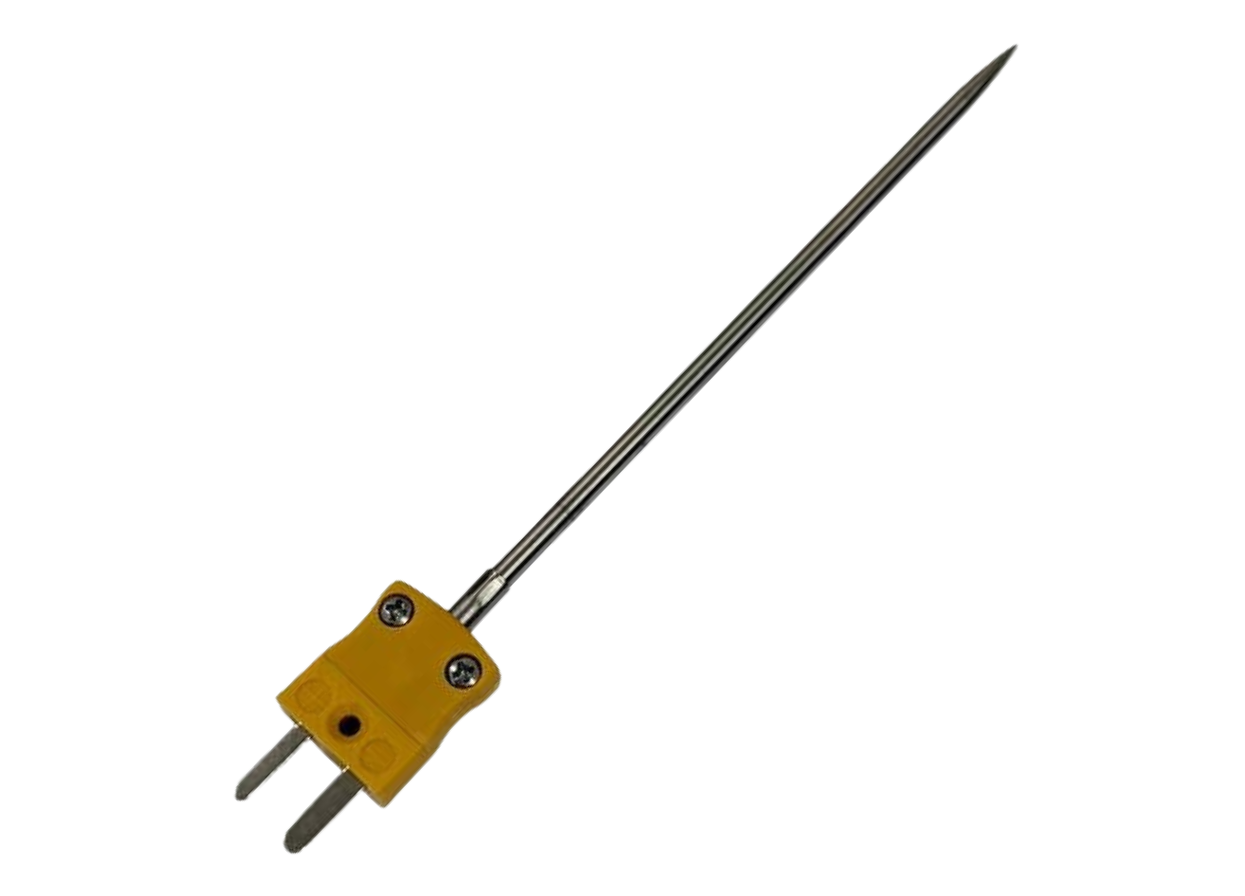

This needle tip Temperature probe (3.3 × 110 mm) with mini plug is designed for fast and accurate temperature measurement in soft and semi-solid materials. The fine stainless-steel needle tip provides a rapid response and allows easy insertion with minimal disturbance to the sample. Durable and versatile, it’s suitable for food testing, laboratory work, and a wide range of general-purpose applications.

Available variations

ANSI Type K

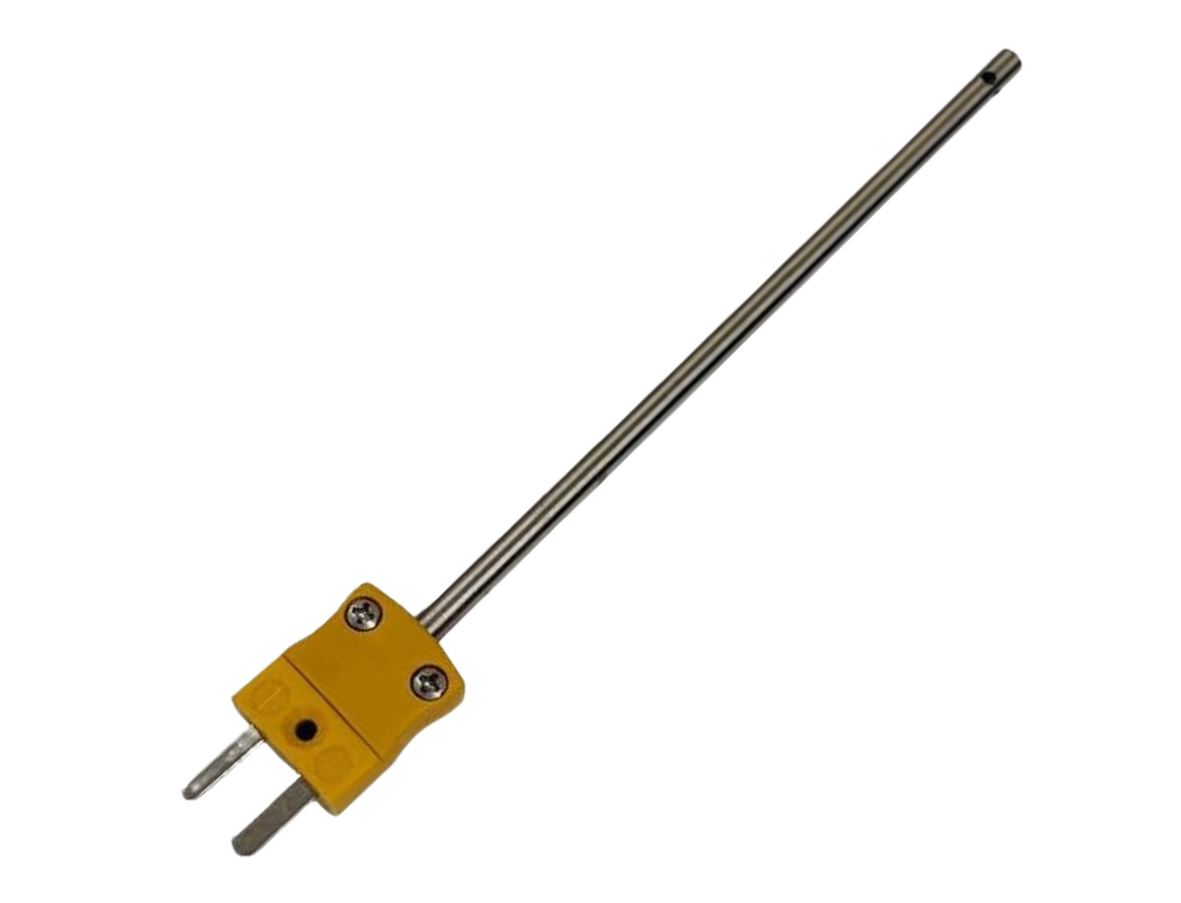

This air tip temperature probe (4 × 110 mm) with mini plug is designed for rapid and accurate measurement of air and gas temperatures. Its perforated or exposed-tip design allows excellent airflow around the sensor, delivering fast response times and stable readings. Robust and versatile, it’s ideal for HVAC testing, environmental monitoring, and a wide range of laboratory or industrial applications.

Available variations

ANSI Type K
