Fabricated and Specialist Thermocouples IEC

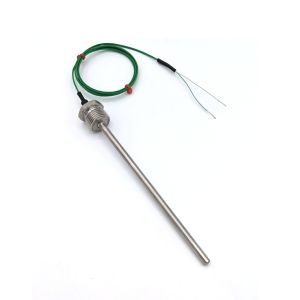

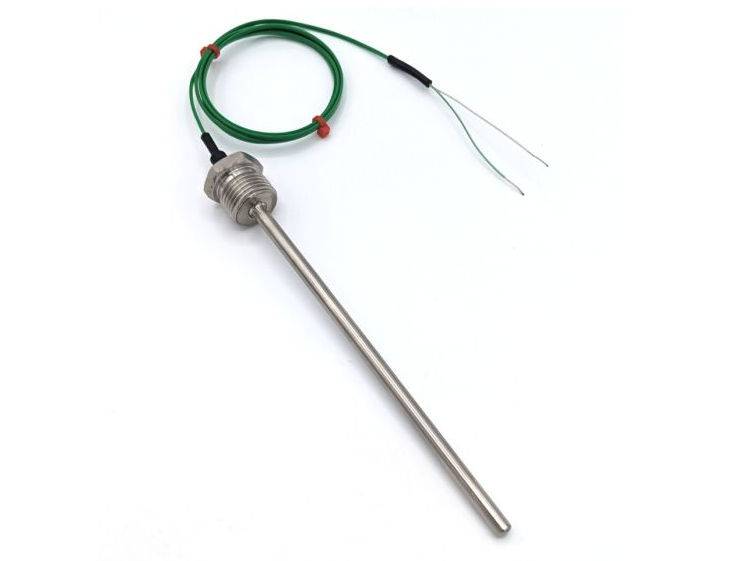

IEC Screw In Thermocouple Temperature Probes - Type K
Screw in type K temperature sensors with a measuring range of -75 to +250°C and 1 metre PFA flat pair lead wire.
Available for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement.
Available variations
1/4"BSPP, 1/2"BSPP, 1/4"NPT, 1/2"NPT Process Connection Types
50mm, 100mm, 150mm, 200mm Sheath Length
3mm, 6mm Sheath Diameter

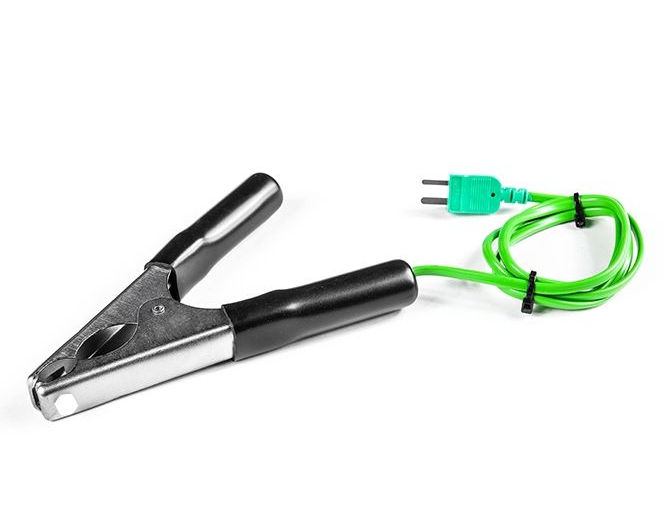

Pipe Clamp Probe
This pipe clamp probe is suitable for measuring the surface temperature of pipes in heating and ventilating systems, refrigeration and many other pipe applications.
Available variations
Type K IEC

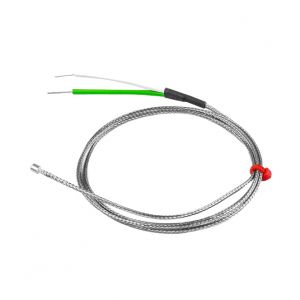

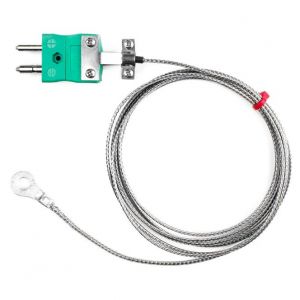

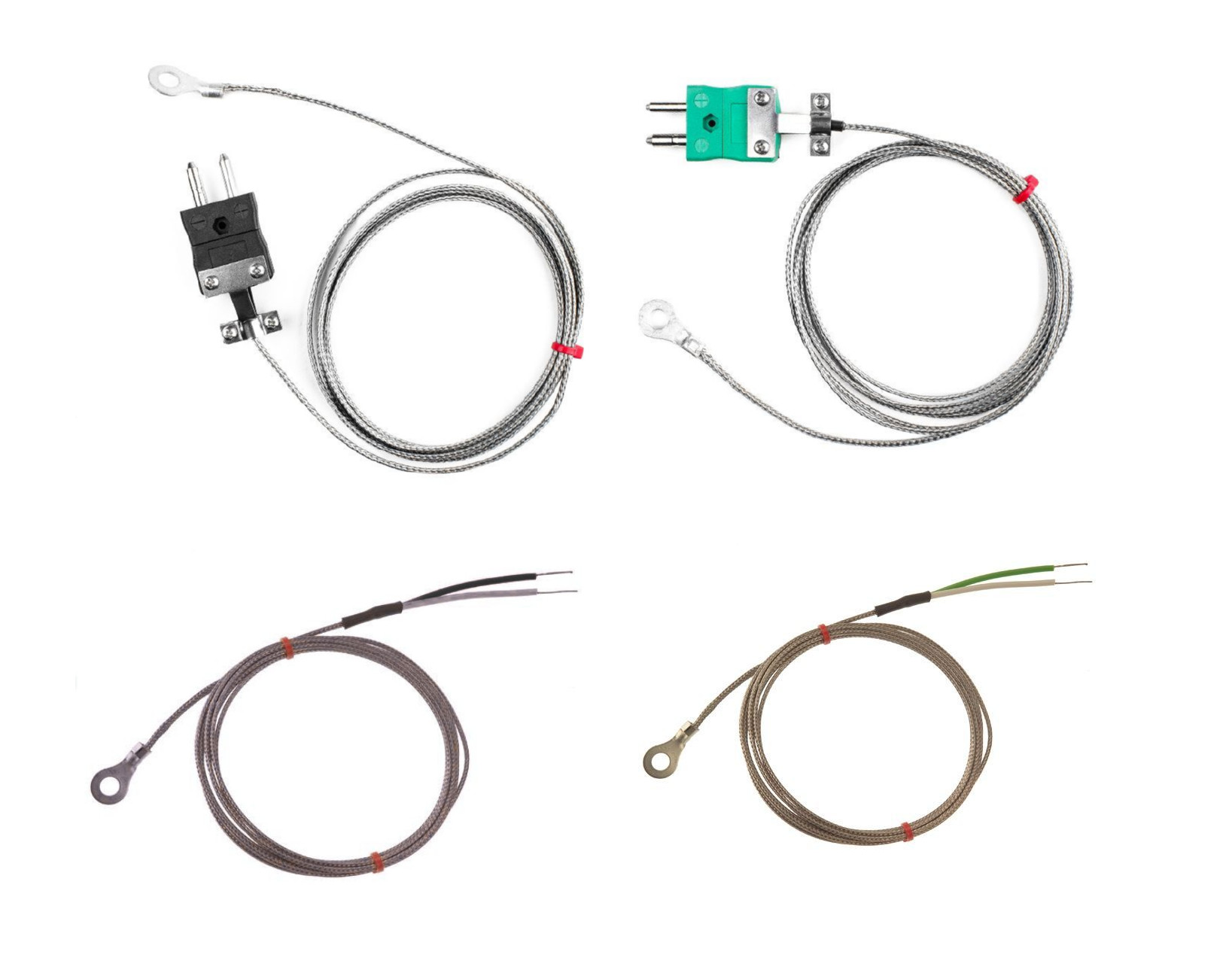

IEC Washer Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid
Thermocouple housed in a washer eyelet, thermocouple junction grounded tip for quick response. Bare tails or standard plug termination options, type K and J IEC.
Available variations
Type K IEC, Type J IEC
Bare Tails or Standard Plug Termination
3.5mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm Washer Hole Size

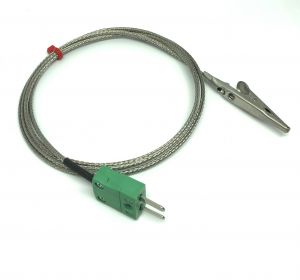

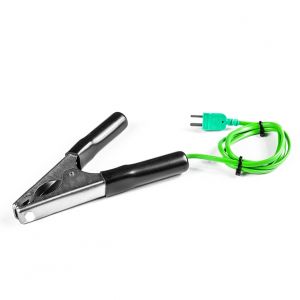

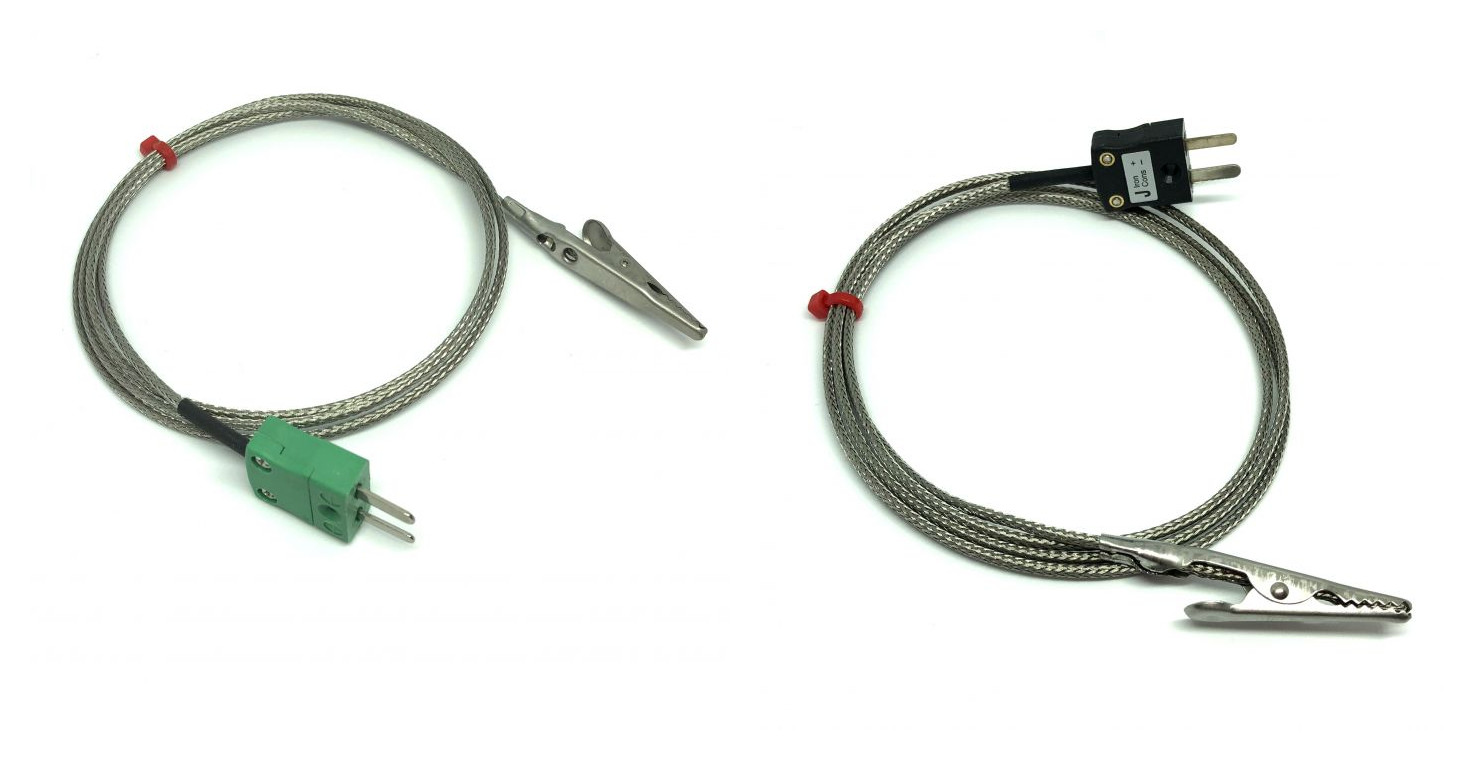

IEC Crocodile Clip Thermocouple with Glassfibre Stainless Steel Overbraided Cable
Crocodile Clip Thermocouple with Glassfibre Stainless Steel Overbraided Cable with grounded measuring junction. Type K or J IEC.
Available variations
Type K IEC, Type J IEC
1M, 3M Length

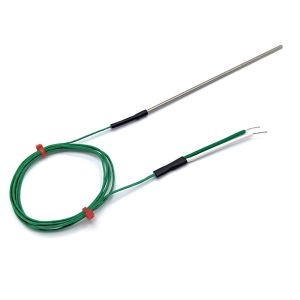

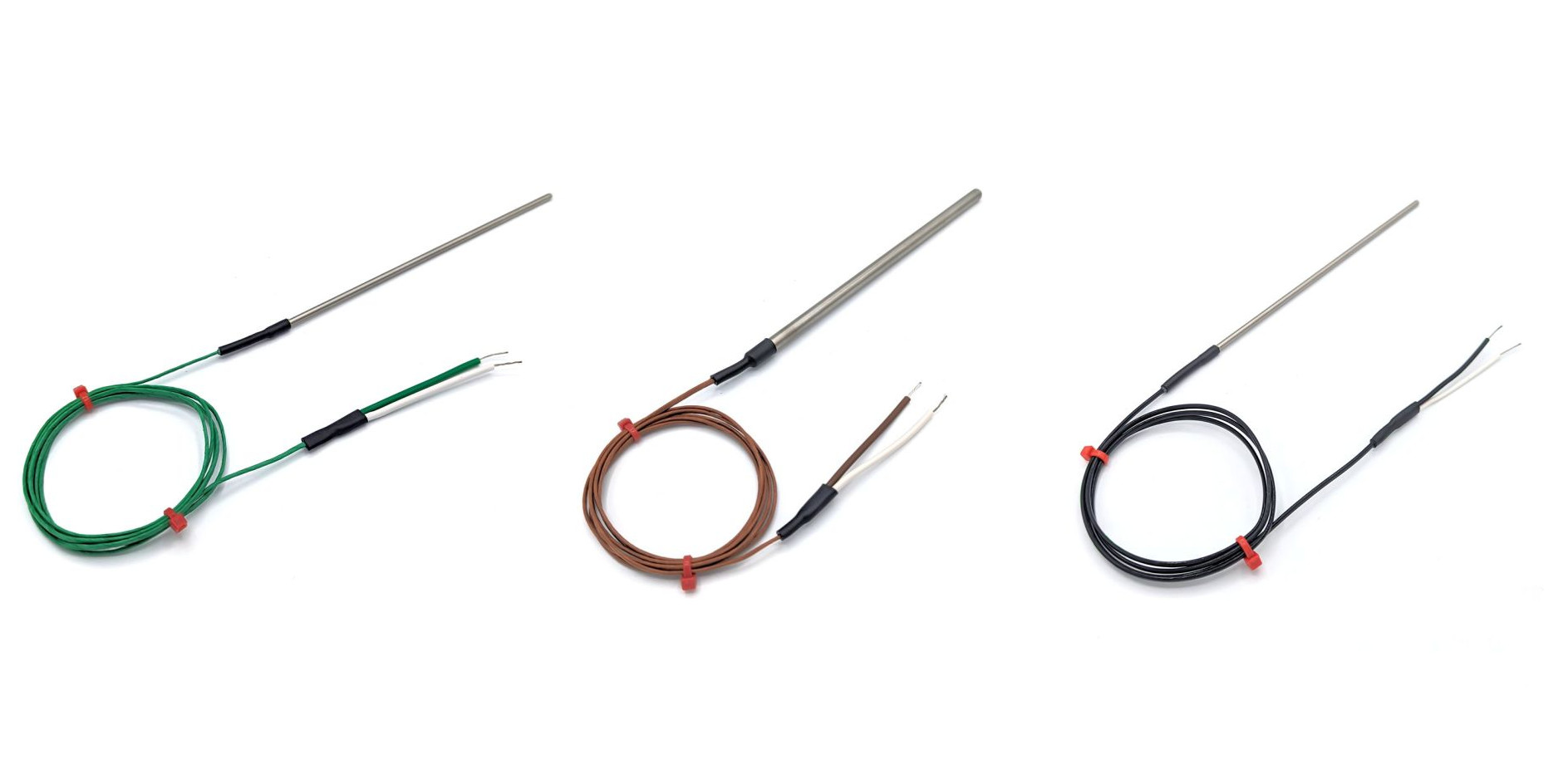

IEC Fabricated Tube Thermocouples with Crimp Seal and Lead Wire
A fabricated IEC thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire, with class 1 thermocouple accuracy.
Available variations
Type K IEC, Type J IEC, Type T IEC
3mm, 4.5mm, 6mm Sheath Diameter
50mm, 100mm, 150mm, 250mm Sheath Length

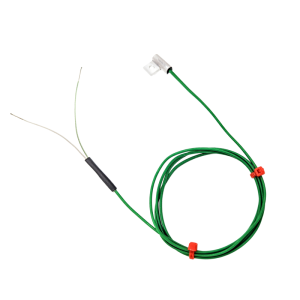

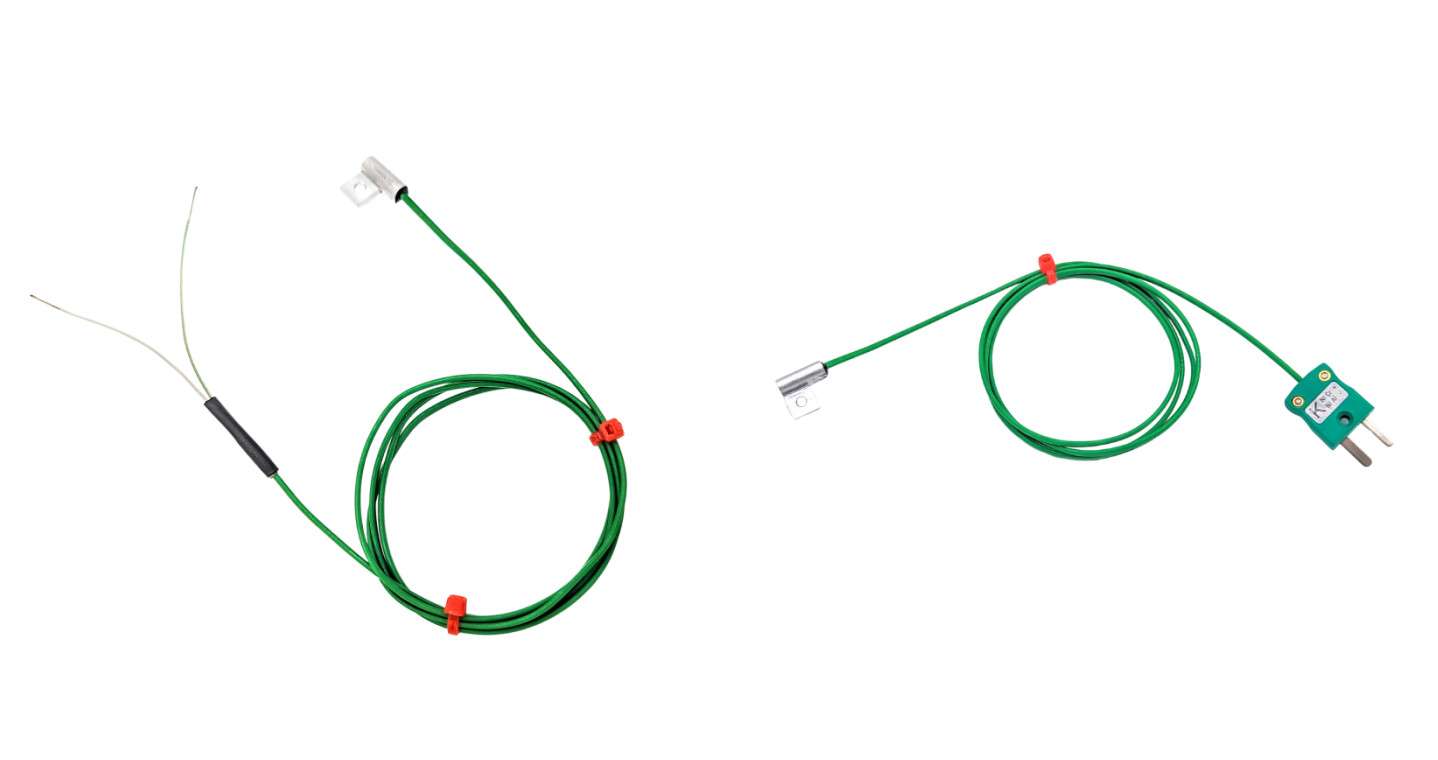

Surface Mount Type K IEC Thermocouple Sensor
A bolt-on type thermocouple with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting. It is a Class 1 accuracy type K thermocouple as standard complete with a PFA lead with tails or mini plug. The sensor can be cemented, glued, screwed, or bolted on most flat surfaces. Type K IEC.
Available variations
Bare Tails or Miniature Plug Termination
1M, 2M, 5M Lead Length

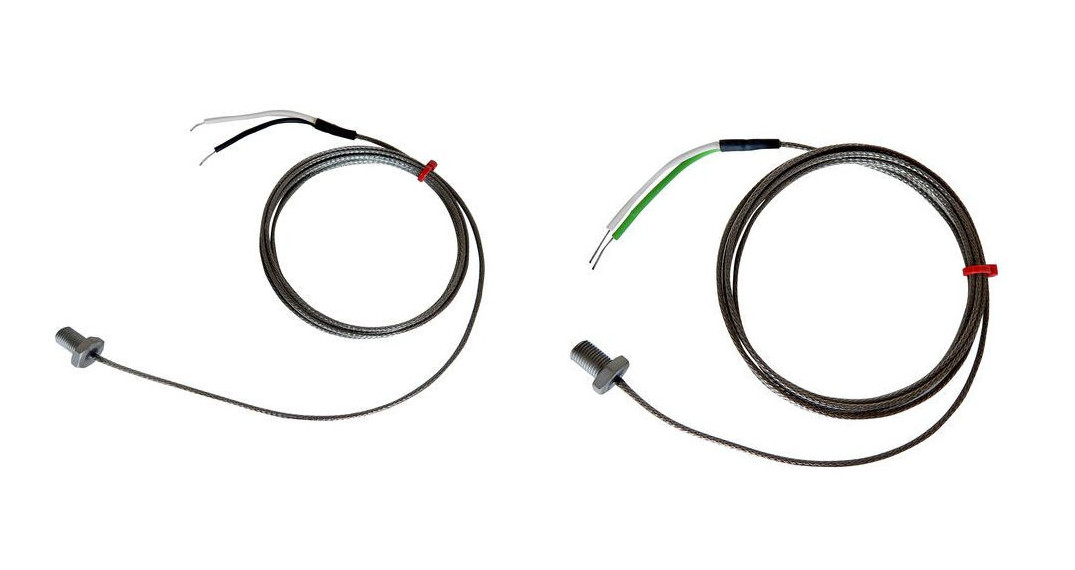

IEC Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable
Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
Available variations
IEC Type K, IEC Type J
M8x1mm, M10x1mm, M12x1mm Thread Pitch
13mm, 25mm Bolt Length

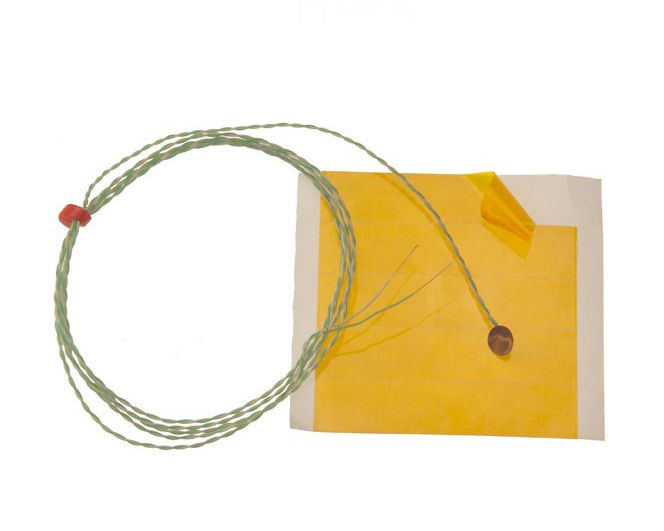

IEC Fine Wire Disc Thermocouple, PTFE
Copper disc thermocouple with high temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process.
Available variations
Type K IEC

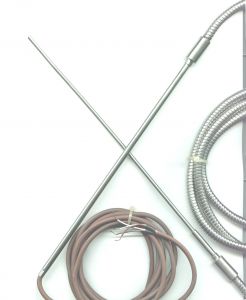

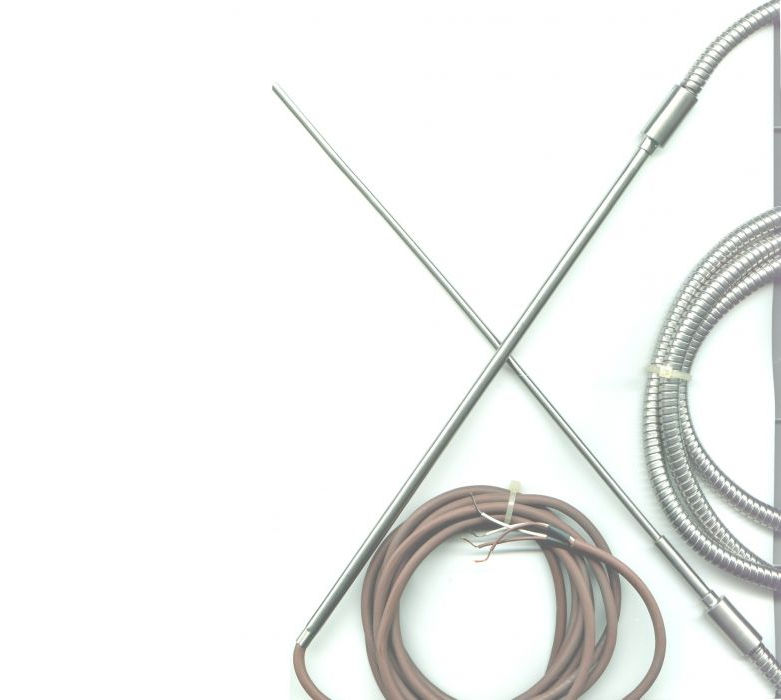

IEC Autoclave Thermocouple - Duplex
This Steriliser Load Probe offers a Duplex Type T sensor, and is suitable for use in harsh conditions, including most steam sterilisers.
Available variations
Type T IEC Duplex

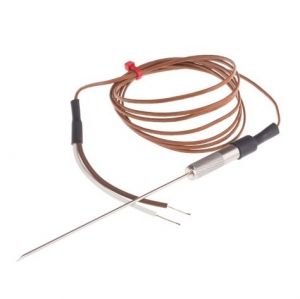

IEC Hypodermic Tip Thermocouple, PTFE
Chisel point thermocouple with PTFE insulated cable and stainless steel sheath.
Available variations
Type T IEC

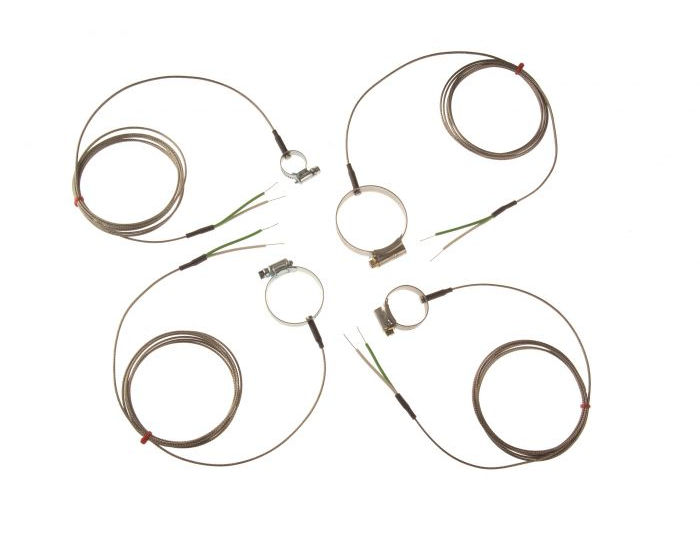

IEC Pipe Surface Jubilee Clip Style Thermocouple, Glassfibre stainless steel overbraid
Stainless steel pipe clamp sensor, jubilee clip style, with adjustable diameter and grounded tip for fast response.
Available variations
IEC Type K, IEC Type J
13-20mm, 22-30mm, 30-45mm, 40-55mm pipe diameter fittings

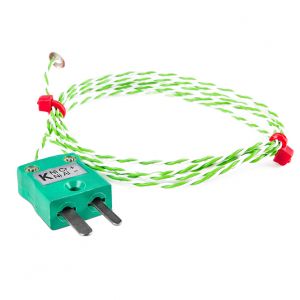

IEC & BS Fine Wire Disc Thermocouple, PTFE with Miniature Plug
Exposed junction thermocouple with Copper Disc brazed at tip, copper disc sensor with grounded measuring junction.
Available variations
IEC Type K, IEC Type J, BS (British Standards) Type K
1M, 2M, 5M Length

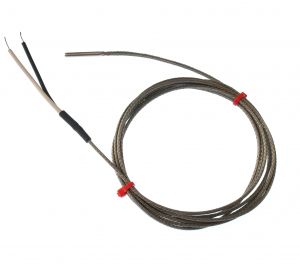

IEC Fabricated Grounded Thermocouple in Stainless Steel Tube, Glassfibre stainless steel Overbraided cable
316 stainless steel tube in various sizes, grounded at tip for fast response.
Available variations
Type K IEC, Type J IEC
3.18mm, 4.0mm, 4.76mm Diameter
13mm, 25mm, 40mm, 75mm, 100mm Length

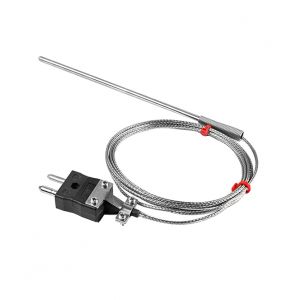

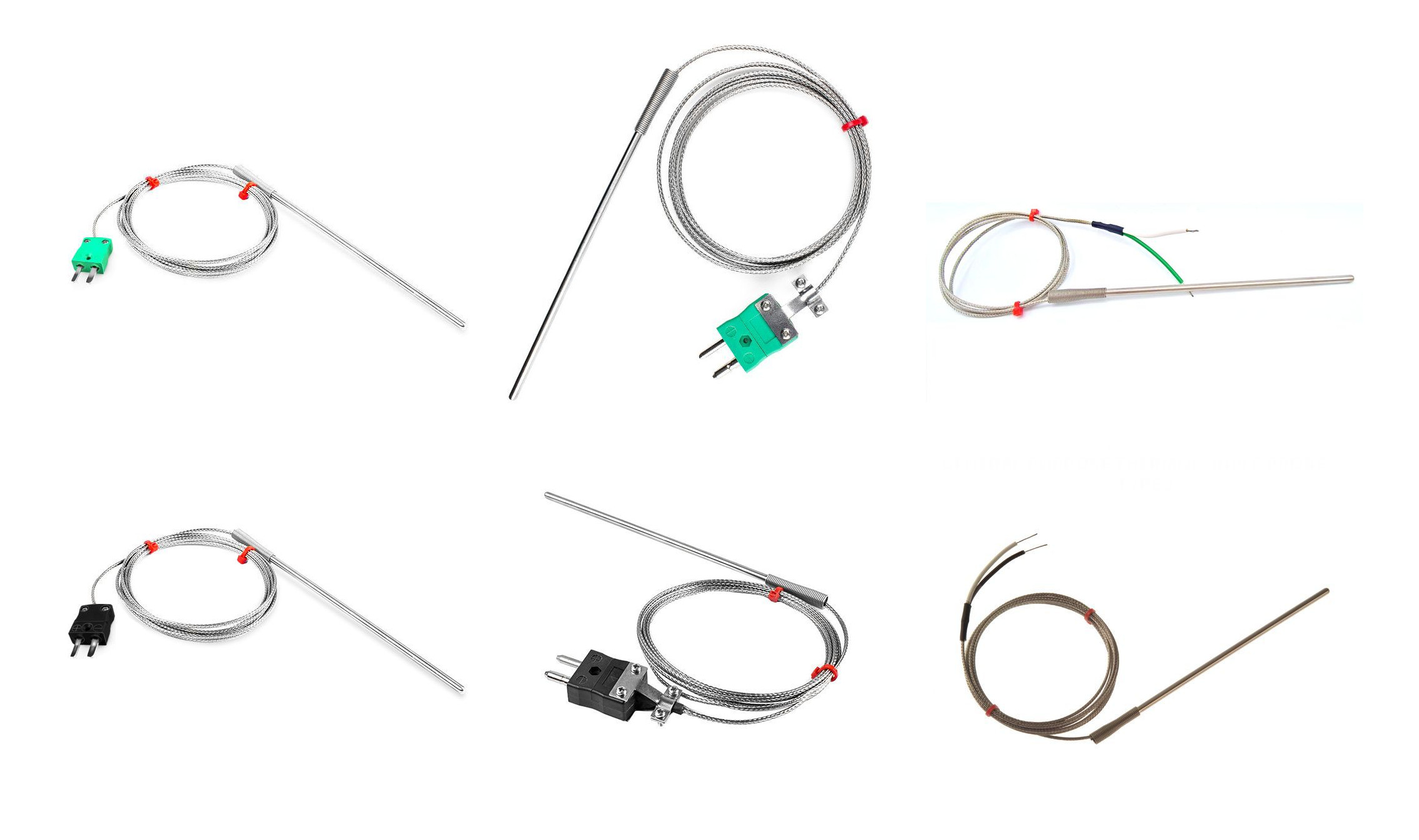

IEC General Purpose Thermocouple Probe, Glassfibre insulated Cable with Stainless Steel Over-Braid
Rugged thermocouple with stainless steel sheath, grounded hot junction for fast response.
Available variations
IEC Type K, IEC Type J
Miniature Plug, Standard Plug or Bare Tails Termination
1M, 2M Length

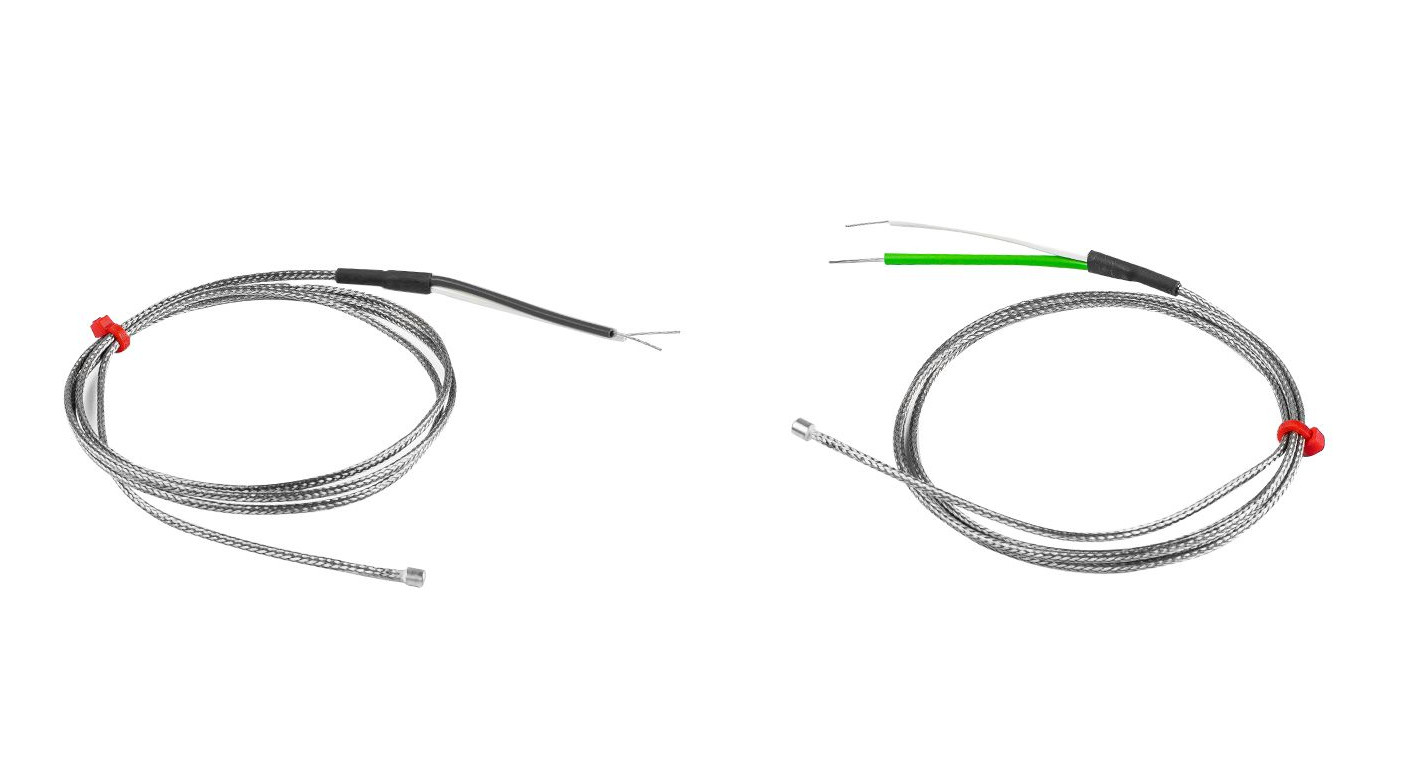

IEC Thermocouple Brake Pad Temperature Sensors
These thermocouple sensors are to be used to monitor the temperature of brake pads up to +400°C. They are designed to be embedded into the pads.
Each sensor has 1m of fibre glass insulated cable, with stainless steel Overbraid. Available in thermocouple type K or J and with a choice of tip diameters. Each tip is sealed with a high temperature ceramic paste (Fortafix) which can withstand temperatures up to +400°C.
Available variations
IEC Type K, IEC Type J
3.2mm, 4.0mm, 6.0mm Diameter

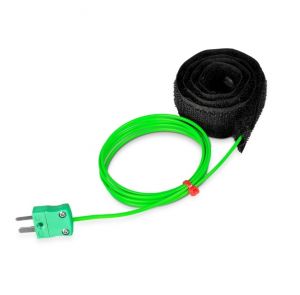

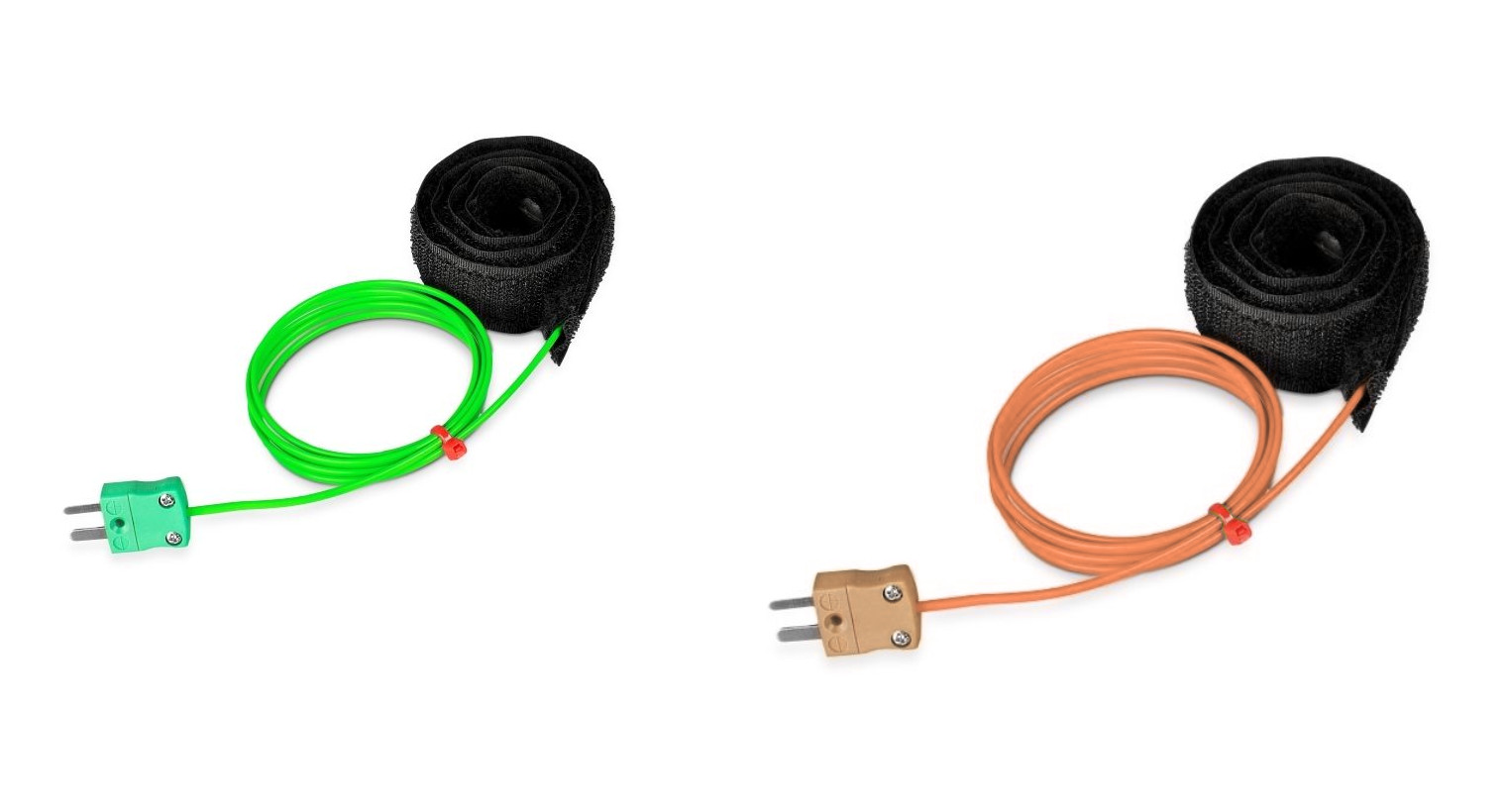

IEC Velcro Thermocouple, PFA with Miniature Plug
Velcro thermocouples can be used as a quick and simple method of measuring the temperature around the surface of a pipe.
Available variations
IEC Type K, IEC Type T
IEC Twist Melt Bolt Thermocouple
Rotational blade style tip allowing correct positioning for reduced resistance in the melt flow. Widely used in plastics extruders and injection moulders
Available variations
IEC Type K, IEC Type J

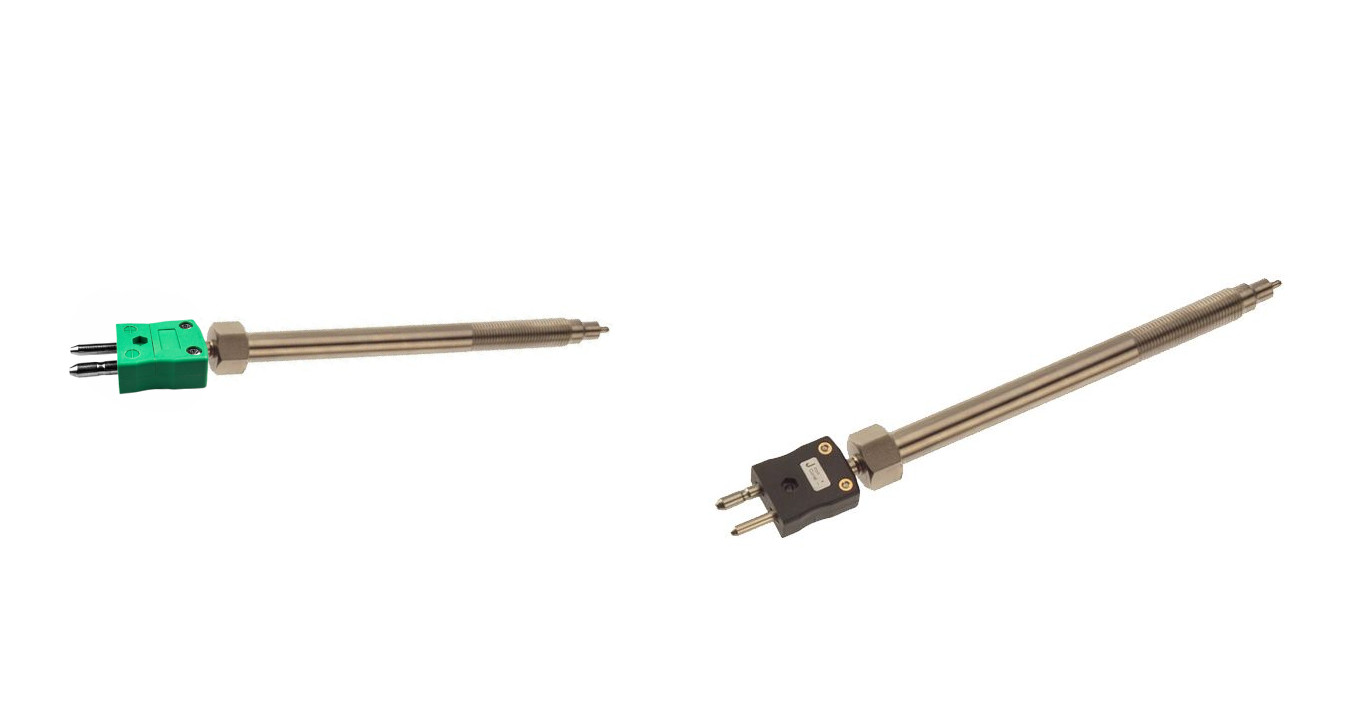

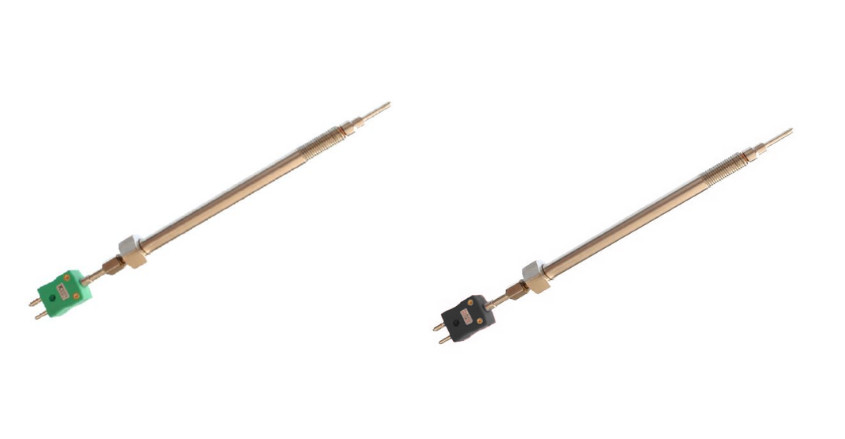

IEC Melt Bolt Thermocouple
Designed to withstand high pressure applications experienced with molten plastics & polymers. Typically used in plastics extruders and injection moulders.
Available variations
IEC Type K, IEC Type J
76mm, 152mm Bolt Length

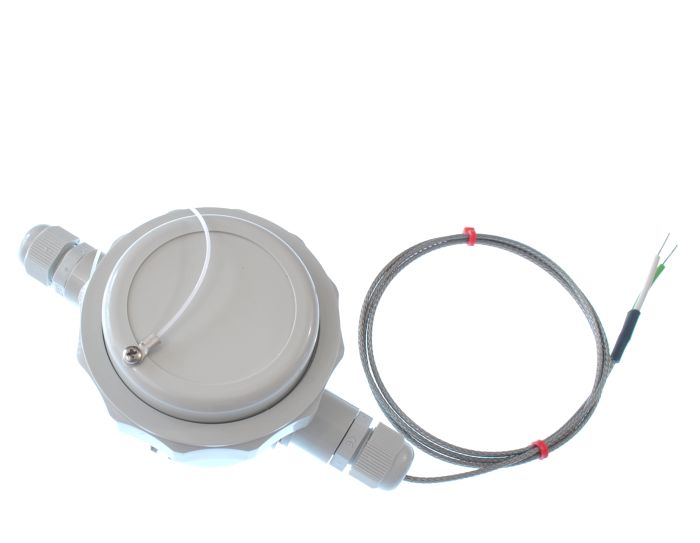

4-20mA remote wall mounted housing, Type K Thermocouple input
Surface Mounting for remote installation.
Compatible with type K (NC/NA) thermocouples.
Available variations
1m of F/G Lead
IEC Silicone Patch Thermocouple, PFA with Miniature Plug - Type K
Resistant to many oils & chemicals, moulded silicone patch thermocouple, 30 x 15mm patch, self adhesive with aluminium foil backing.
Available variations
1M, 2M Length

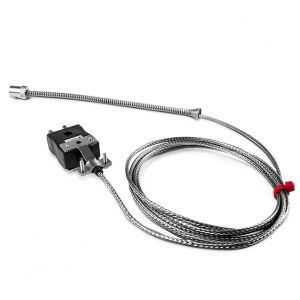

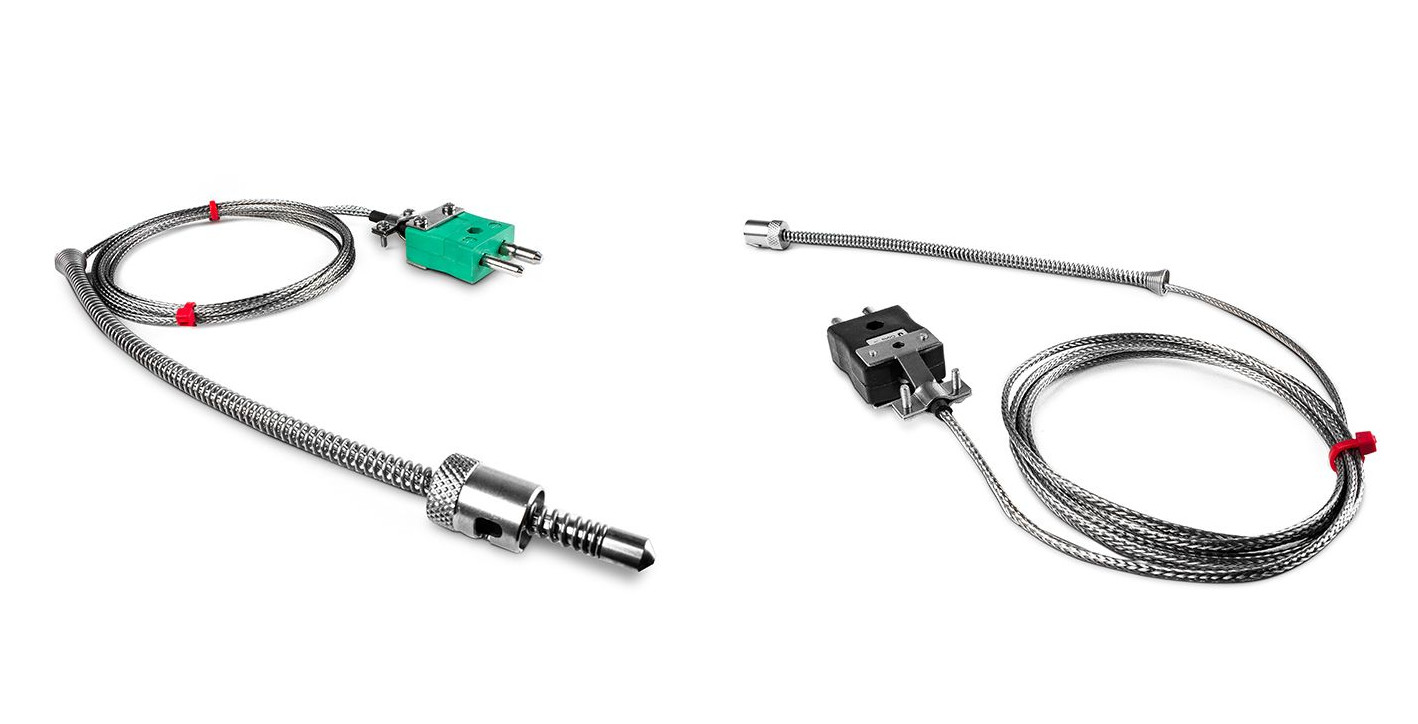

IEC Adjustable Bayonet Thermocouple, Glassfibre Stainless Steel Overbraided Cable
Adjustable Bayonet Thermocouple with 200mm spring with adjustable fixing cap (11.5mm I.D. single slot).
Available variations
IEC Type K, IEC Type J
Bare Tails or Standard Plug with Cable Clamp Termination
2M, 3M Length

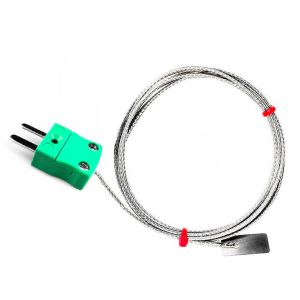

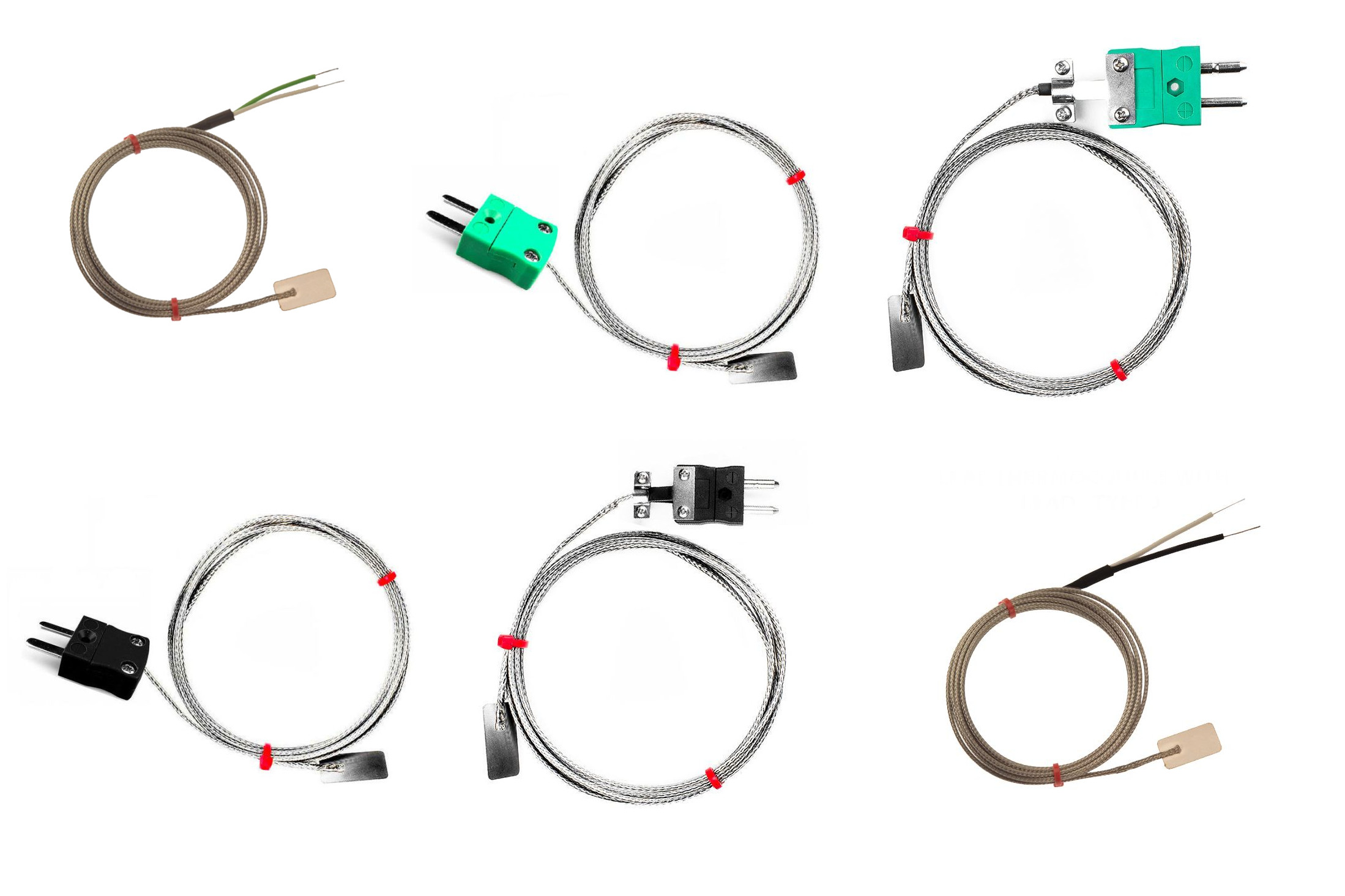

IEC Leaf Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid Terminating in Bare tails, Miniature or Standard Plug
Thermocouple mounted on a stainless steel shim. Junction grounded at tip for fast response.
Available variations
IEC Type K, IEC Type J
Bare Tails, Miniature Plug, Standard Plug Termination
1M, 2M, 3M, 5M Length

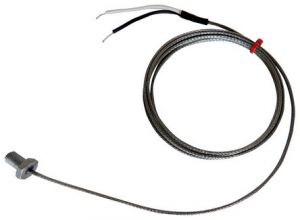

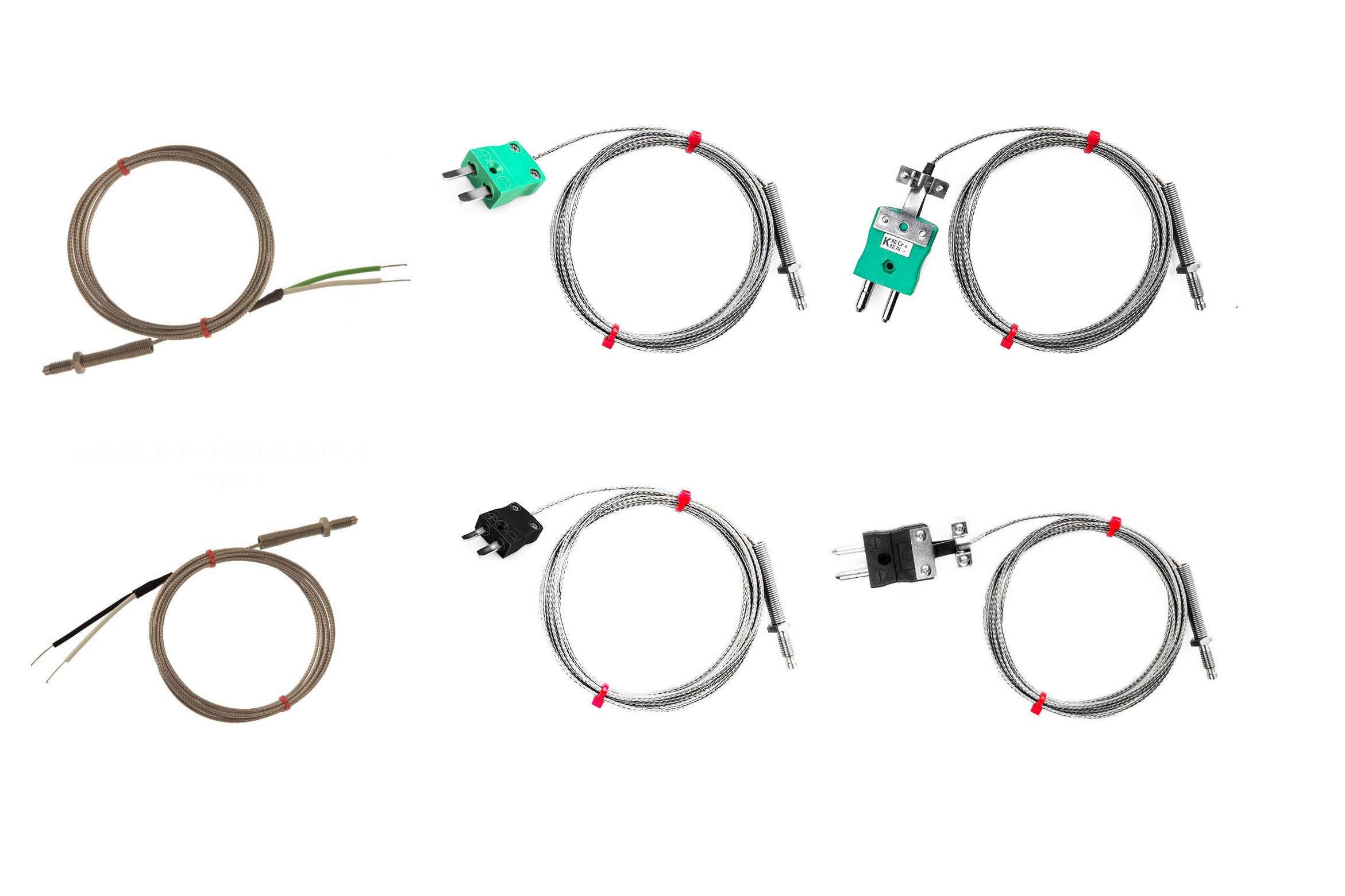

IEC Nozzle Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid
Thermocouple housed in a stainless steel threaded bolt, grounded hot junction for fast response, M6x1mm thread.
Available variations
IEC Type K, IEC Type J
Bare Tails, Miniature Plug, Standard Plug Termination
1M, 2M, 5M Length

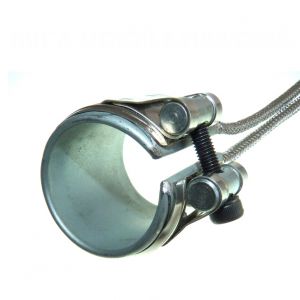

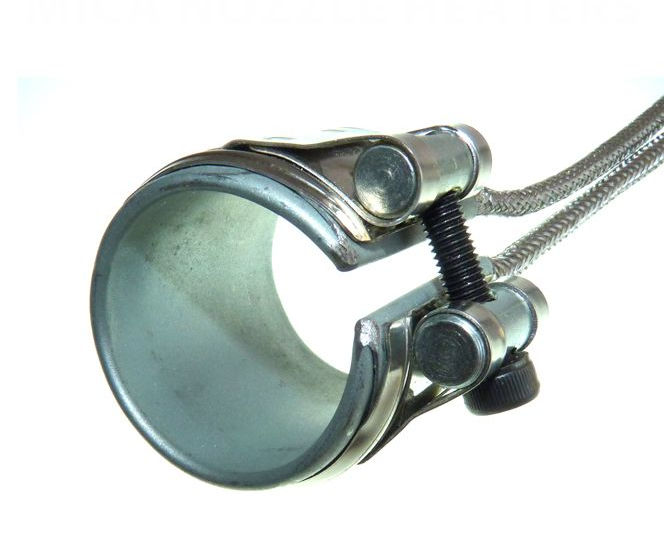

Mica Nozzle Heaters
Best quality Mica for high dielectric strength and maximum heat transfer. High performance precision wound element for superior heat distribution.
Cant find what your looking for?
Please complete our custom configurator forms and send us your specific requirements and build your own sensor.
We are specialists in the design and manufacture of custom-built temperature sensors. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
