Retractable Curly Leads
We offer retractable curly leads in IEC, ANSI and JIS colour codes, as well as PRT style.

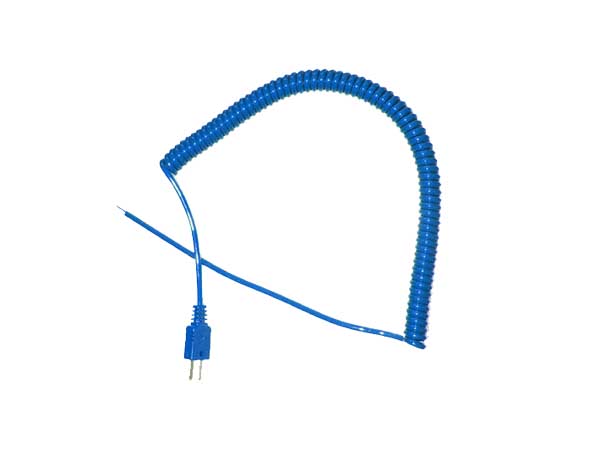

IEC Retractable Curly Leads
Polyurethane outer, 2 Metres in length when fully extended and Terminated with a fitted miniature plug (RTD version is bare tails).
Can’t find what you need? Call or email our technical sales team on +44 (0) 1243 871 280 or sales@labfacility.com for help with product selection and technical support
ANSI Retractable Curly Leads
Polyurethane outer, 2 Metres in length when fully extended and Terminated with a fitted miniature plug (RTD version is bare tails).
Can’t find what you need? Call or email our technical sales team on +44 (0) 1243 871 280 or sales@labfacility.com for help with product selection and technical support
JIS Retractable Curly Leads
Retractable Curly Thermocouple Leads with Polyurethane outer. Available in type K or T. Terminated with a fitted miniature thermocouple plug. Colour coded to JIS
Can’t find what you need? Call or email our technical sales team on +44 (0) 1243 871 280 or sales@labfacility.com for help with product selection and technical support
PRT Retractable Curly Lead
Retractable Curly PRT Leads with Polyurethane outer. Terminated with bare tails
Can’t find what you need? Call or email our technical sales team on +44 (0) 1243 871 280 or sales@labfacility.com for help with product selection and technical support
Guide to Wire and Cable Insulation and Coverings
| Which insulation Material? | usable temperature range | Application Note |
|---|---|---|
| PVC | -10°C to 105°C | Good general-purpose insulation for “light” environments. Waterproof and very flexible. |
| PFA (extruded) |
-75°C to 250°C | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments |
| PTFE (taped & wrapped) |
-75°C to 250/300°C | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
| Glassfibre (varnished) | -60°C to 350/400°C | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
| High temperature glass fibre | -60°C to 700°C | Will withstand temperature up to 700°C but will not prevent ingress of fluids. Fairly flexible, not good protection against physical disturbance. |
| Ceramic Fibre | 0 to 1000°C | Will withstand high temperature, up to 1000°C. Will not protect against fluids or physical disturbance. |
| Glassfibre (varnished) stainless steel overbraid |
-60°C to 350/400°C | Good resistance to physical disturbance and high temperature (up to 400°C). Will not prevent ingress of fluids. |
For maximum accuracy extension cables should be used and terminals and connectors should be of thermocouple materials to maintain continuity.
