Fine Wire Versatile Exposed Junction Thermocouples IEC
PFA insulated Twin Twisted IEC Exposed Junction Thermocouple with Bare Tails
Thermocouple type K,J or T. Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with bare tails termination.
Ideal for test & development applications.
Available variations
IEC Type K, J, T
1/0.2mm, 1/0.315mm, 1/0.5mm, 7/0.2mm Cable Size
1m, 2m, 5m, 10m Cable Lengths
PTFE insulated Twin Twisted IEC Exposed Junction Thermocouple with Bare Tails
Thermocouple type K,J or T. Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with bare tails termination.
Ideal for test & development applications.
Available variations
IEC Type K, J, T
250mm, 300mm, 1M, 2M, 3M, 5M, 10M Cable Lengths

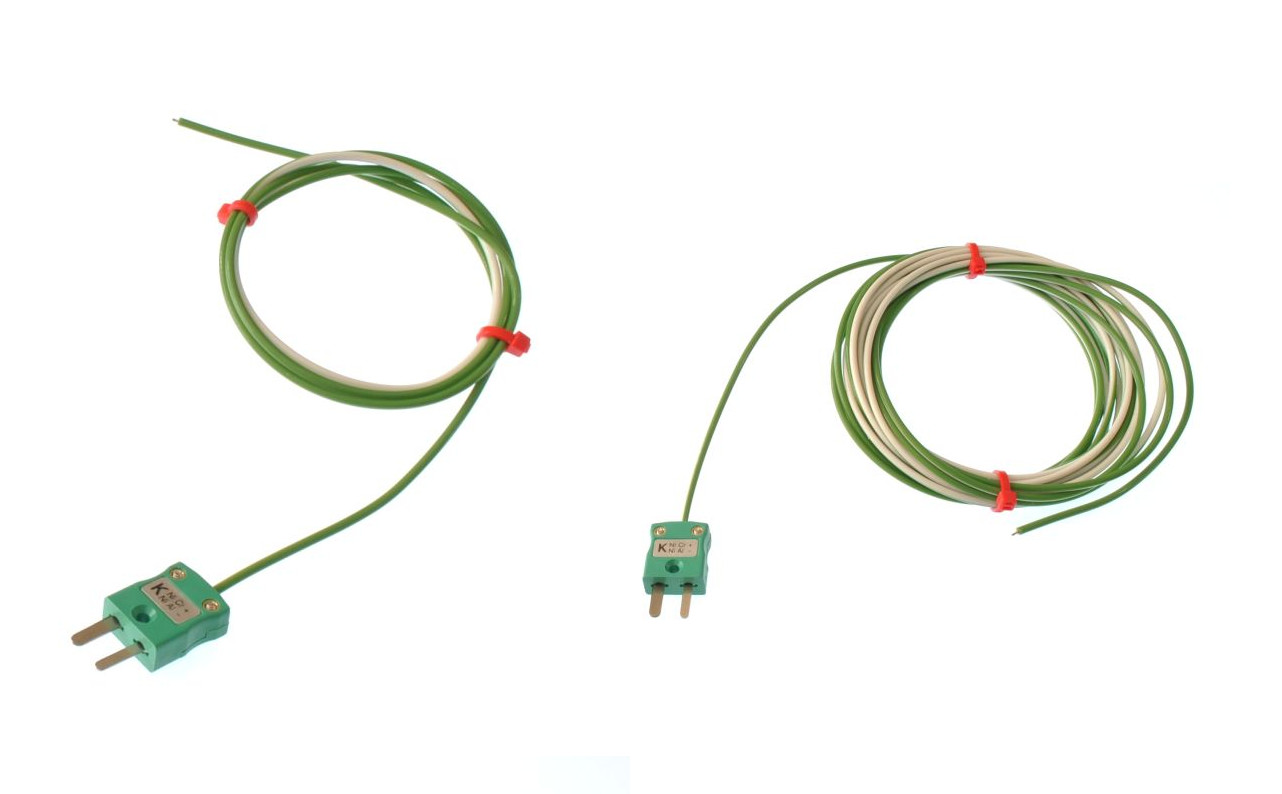

PFA insulated Twin Twisted IEC Exposed Junction Thermocouple with Miniature Plug
Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with a Miniature plug termination.
Ideal for test and development applications.
Available variations
IEC Type K, J, T
7/0.2, 1/0.2, 1/0.5, 1/0.315 Strand Size
300mm, 1M, 2M, 3M, 5M, 10M Length
PTFE insulated Twin Twisted IEC Exposed Junction Thermocouple with Miniature Plug - Types K, J, T
Thermocouple type K,J or T. Fast response, welded exposed junction available in Class 1 cable specification in accordance with BS EN 60584-3:2008 with a Miniature plug termination.
Ideal for test & development applications.
Available variations
IEC Type K, J, T
300mm, 1M, 2M, 5M, 10M Length
PFA Insulated Flat Pair IEC Exposed Junction Thermocouple with Miniature Plug - Type K
Fast response, welded exposed junction with good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.
Availaible variations
1/0.3mm, 1/0.5mm Strand Size
300mm, 1M, 2M, 3M, 5M Length
PFA Insulated IEC Fine Gauge Exposed Junction Thermocouple (0.076mm conductors) - Type K
Thermocouple type K. Fast response, welded exposed junction available with bare tails. Ideal for test & development applications.
Available variations
300mm, 0.5M, 1M, 2M Length
Fine Gauge Bare Wire Exposed Junction Thermocouple Type K
Ultra-fine Type K welded tip Thermocouple for Optimum Sensitivity.
Available variations
Type K, 200mm cable length

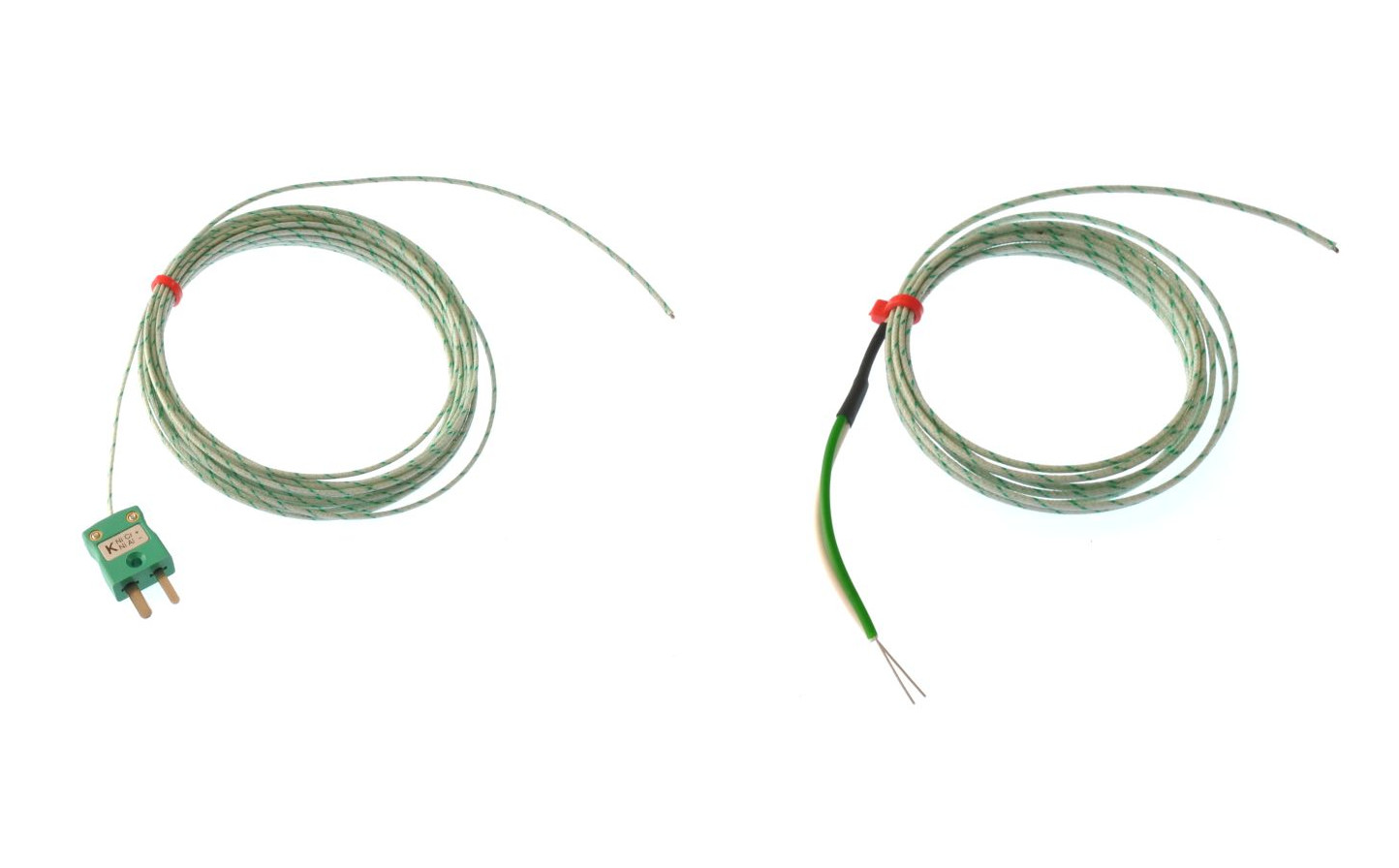

Glassfibre insulated Flat Pair IEC Exposed Junction Thermocouple
Good temperature resistance (not suitable in fluids), exposed Junction. Ideal for test & development applications.
Available variations
IEC Type K, IEC Type J, IEC Type T
Miniature Plug or Bare Tails Termination
1/0.315mm, 1/0.508mm Strand Size
300mm, 1M, 2M, 5M, 10M Length
IEC PTFE Single Shot Exposed Junction Thermocouple with Moulded-on Miniature Plug - Type K
A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable.
This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications.
Available variations
1M, 2M, 5M, 10M Length
PFA Cable Tidy IEC Exposed Junction Thermocouple with Fitted Mini Plug
Cable Tidy Thermocouple with Fitted Miniature IEC Plug, PFA Twin Twisted or Flat Pair.
A complete precision fine wire, high sensitivity exposed junction thermocouple, with a fitted miniature connector.
Available variations
IEC Type K, T
PFA Flair Pair, PFA Twin Twisted
1M, 2M Length
PTFE Single Shot IEC Exposed Junction Thermocouple with Miniature Plug
A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable.
This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications.
Available variations
IEC Type K, IEC Type T
300mm, 1M, 2M, 5M, 10M Length
Thermo Attachment Pads
Self-adhesive pads in PTFE glass cloth for locating welded tip thermocouples
Available variations
PTFE glass cloth
Probe Disinfectant Wipes for Exposed Junction Thermocouples
Probe Disinfectant Wipes are effective against 99.9% of gram-positive and gram-negative bacteria, as well as most viruses, fungi and other micro-organisms including spores. They are pre-dosed with a dual active formulation ideal for providing effective infection control and preventing cross contamination of probes and utensils.
Cant find what your looking for?
Please complete our custom configurator forms and send us your specific requirements and build your own sensor.
We are specialists in the design and manufacture of custom-built temperature sensors. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
