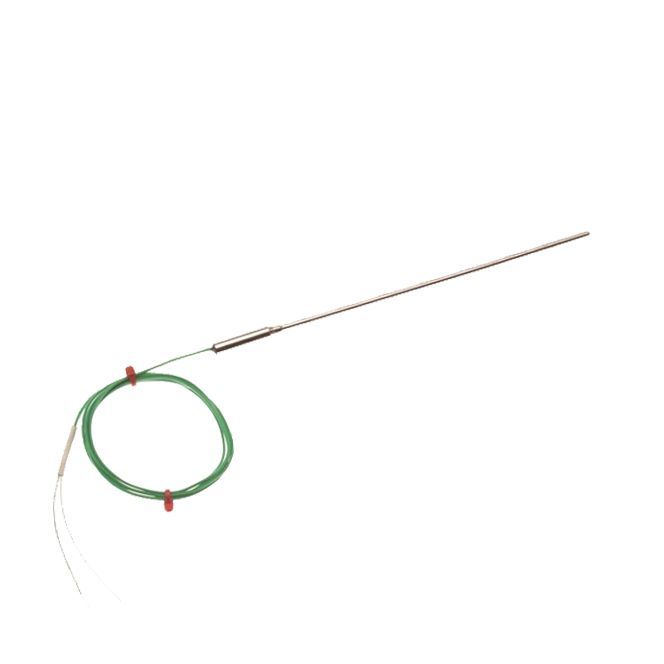

0.5mm Diameter Plain pot seal with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails - Insulated Junction - 150mm

Change Currency

SKU
XE-0158-001
£36.42 £30.35
  • Buy 2+ for £36.31 £30.26 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Fast Response Mineral insulated thermocouple in type K. Various lengths available terminating with an IEC miniature plug (220°C) for quick, simple connection.

For 0.25mm, 0.75mm & 0.81mm diameter and for Inconel® Alloy 600 sheath versions, please use our custom sensor forms to submit your requirements  or email sales@labfacility.com / telephone our sales line 01243 871280

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.

Specifications

General Description Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails.
Sensor Type Mineral Insulated
Thermocouple Type K
Element/hot junction Single element, junction insulated
Probe Diameter 0.5mm
Probe Length 150mm
Sheath Material K - Stainless steel 310
Pot Type Plain (+200°C)
Cable Length 1M
Cable Type PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584)
Core / Strands 7/0.2mm
Termination Type Bare Tails
Max. Temperature K +650°C
Min. Temperature K -40°C
Tolerance Class 1
Standards Met In accordance with IEC 584
