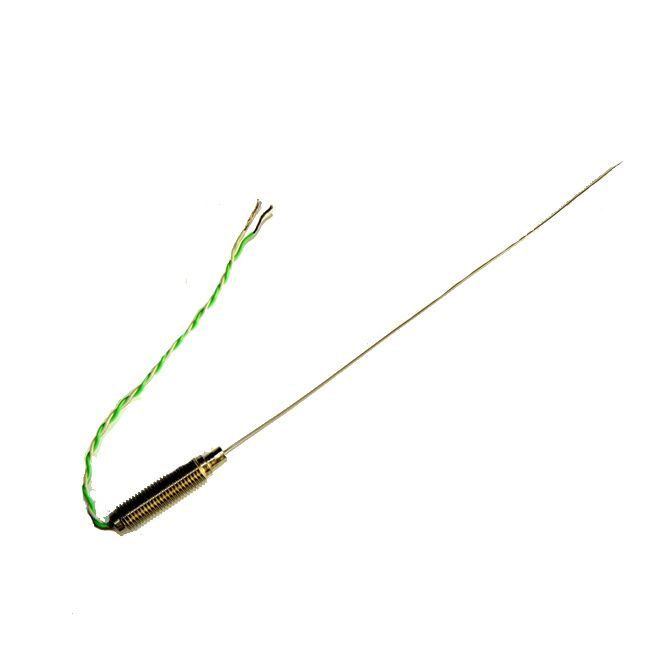

0.5mm Diameter Fast Respsone Thermocouple with threaded pot & tails IEC Type K - Grounded Junction - 150mm
Change Currency
SKU
XE-3291-001
£44.42
£37.02
- Buy 2+ for £36.31 £30.26 each
Type K with threaded pot & tails in 310 stainless steel
For 0.25mm, 0.75mm & 0.81mm diameter and for Inconel® Alloy 600 sheath versions, please use our custom sensor forms to submit your requirements or email sales@labfacility.com / telephone our sales line 01243 871280
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Type K with threaded pot & tails in 310 stainless steel |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction grounded from sheath |
| Probe Diameter | 0.5mm |
| Probe Length | 150mm |
| Sheath Material | 310 stainless steel |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm |
| Cable Type | PFA insulated twin twisted IEC |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | +650°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
