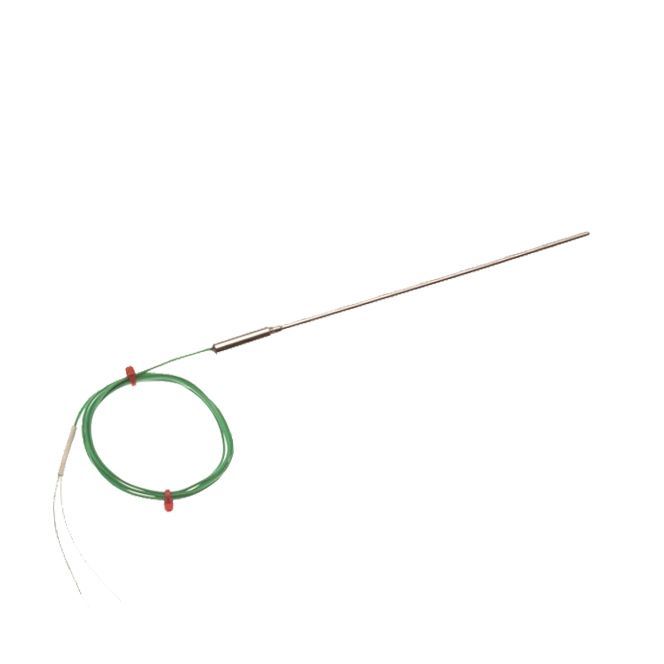

0.75mm Diameter Plain pot seal with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with IEC tails - Grounded Junction - 150mm

Change Currency

SKU
XE-0183-001
£34.84 £29.03
  • Buy 2+ for £34.76 £28.97 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Plain pot seal with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails.

Fine diameter transition joint thermocouple probes have the sheath crimped to a stainless steel barrel which is sealed with epoxy and has a PFA insulated lead wire.

Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.

If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.

Specifications

General Description Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails.
Sensor Type Mineral Insulated
Thermocouple Type K
Element/hot junction Single element, junction grounded from sheath
Probe Diameter 0.75mm
Probe Length 150mm
Sheath Material K - Stainless steel 316
Pot Type Plain (+200°C)
Cable Length 1M
Cable Type PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584)(Max Temp 250°C)
Core / Strands 7/0.2mm
Termination Type Bare Tails
Max. Temperature +750°C
Min. Temperature -100°C
Tolerance Class 1
Standards Met In accordance with IEC 584
