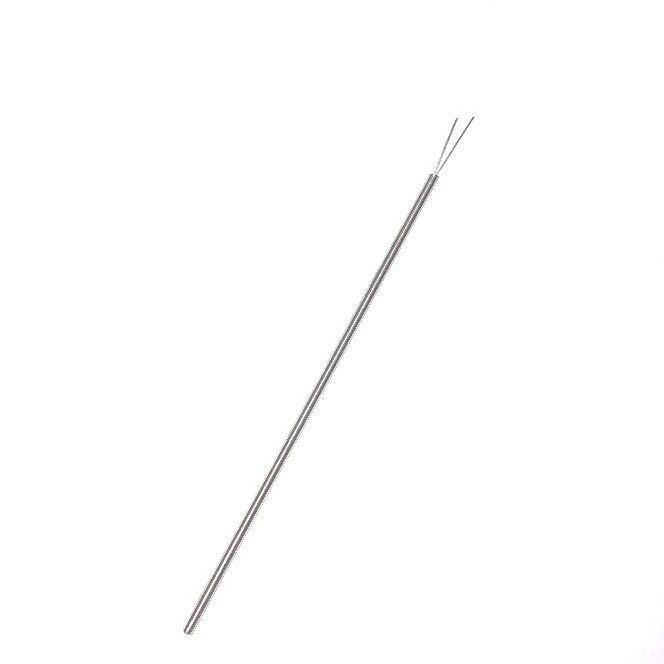

0.75mm Diameter Fast Response Thermocouple with IEC Bare Tails - Grounded Junction - 100mm
Change Currency
SKU
XE-0191-001
£27.31
£22.76
- Buy 2+ for £27.24 £22.70 each
Fine diameter transition joint thermocouple probes
Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Industrial use Infrared Thermometer |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Battery | 2 x 1.5 volt LR44 coin cell (included) |
| Element/hot junction | Single element, junction grounded from sheath |
| Display | 6mm LCD |
| Probe Diameter | 0.75mm |
| Probe Length | 100mm |
| Sheath Material | K - Stainless steel 316 |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (Max Temp 200°C) |
| Cable Length | 100mm |
| Cable Type | PFA insulated twin twisted IEC (Temp -75 to +250°C) |
| Core / Strands | 7/0.2mm |
| Termination Type | Fortfix sealed with = +VE leg 15mm long and -VE leg 10mm long |
| Resolution | 0.1°C (switchable) |
| Max. Temperature | +650°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
| Accuracy | +/-2°C |
| Dimensions | 18 x 90 mm |
| Weight | 20 grams |
| Important Information | Please Note: these are industrial IR thermometers, so please check the specifications before purchasing as a restocking fee of 20% will apply to unused products. |
