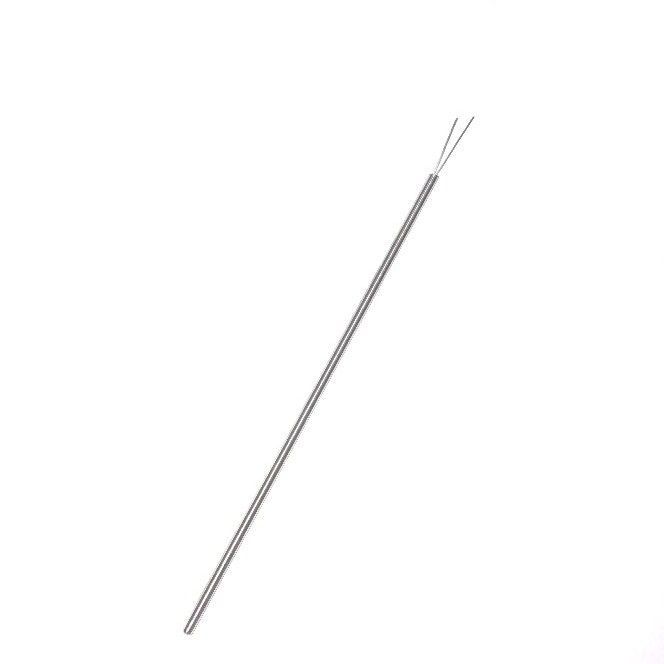

0.75mm Diameter Fast Response Thermocouple with IEC Bare Tails - Insulated Junction - 150mm

Change Currency

SKU
XE-0204-001
£28.61 £23.84
  • Buy 2+ for £28.54 £23.78 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Fine diameter transition joint thermocouple probes

Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.

If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.



Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.

Specifications

Sensor Type Mineral Insulated
Thermocouple Type K
Element/hot junction Single element, junction insulated from sheath
Probe Diameter 0.75mm
Probe Length 150mm
Sheath Material K - Stainless steel 316
Termination Type Fortfix sealed with = +VE leg 15mm long and -VE leg 10mm long
Max. Temperature +650°C
Min. Temperature -40°C
Tolerance Class 1
Standards Met In accordance with IEC 584
