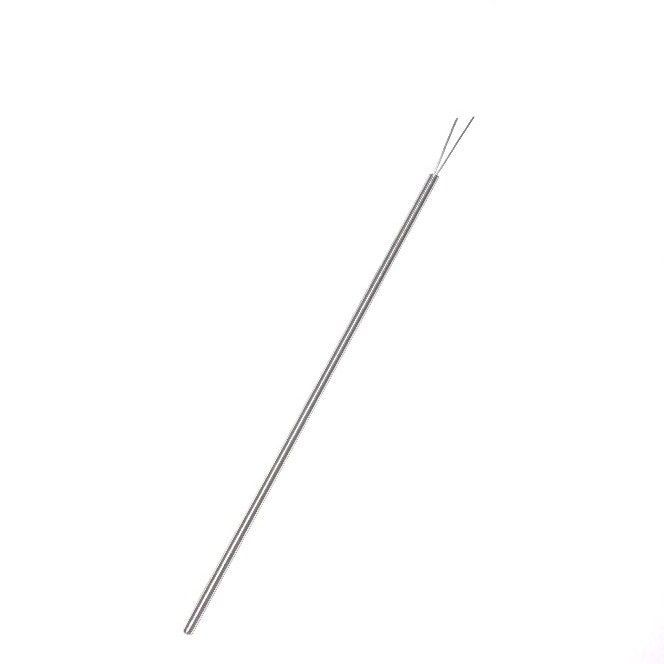

0.75mm Diameter Fast Response Thermocouple with IEC Bare Tails - Insulated Junction - 250mm
Change Currency
- Buy 2+ for £29.83 £24.86 each
Fine diameter transition joint thermocouple probes
Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| Sensor Type | Mineral Insulated |
|---|---|
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated from sheath |
| Probe Diameter | 0.75mm |
| Probe Length | 250mm |
| Sheath Material | K - Stainless steel 316 |
| Termination Type | Fortfix sealed with = +VE leg 15mm long and -VE leg 10mm long |
| Max. Temperature | +650°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
