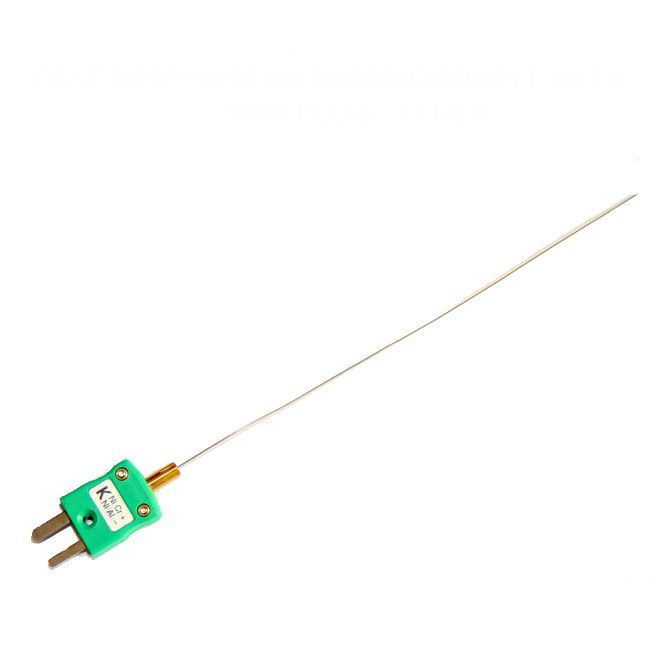

0.75mm Diameter Fast Response Thermocouple with Miniature IEC Plug - Insulated Junction - 150mm
Change Currency
SKU
XE-0198-001
£33.55
£27.96
- Buy 2+ for £33.47 £27.89 each
Type K Mineral Insulated 316 stainless steel, Fitted with miniplug
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Type K 316 stainless steel, Fitted with miniplug |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated from sheath |
| Probe Diameter | 0.75mm |
| Probe Length | 150mm |
| Sheath Material | 316 stainless steel |
| Termination Type | Thermocouple IEC Mini plug (Max Temp 200°C) |
| Max. Temperature | +750°C |
| Min. Temperature | -100°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
