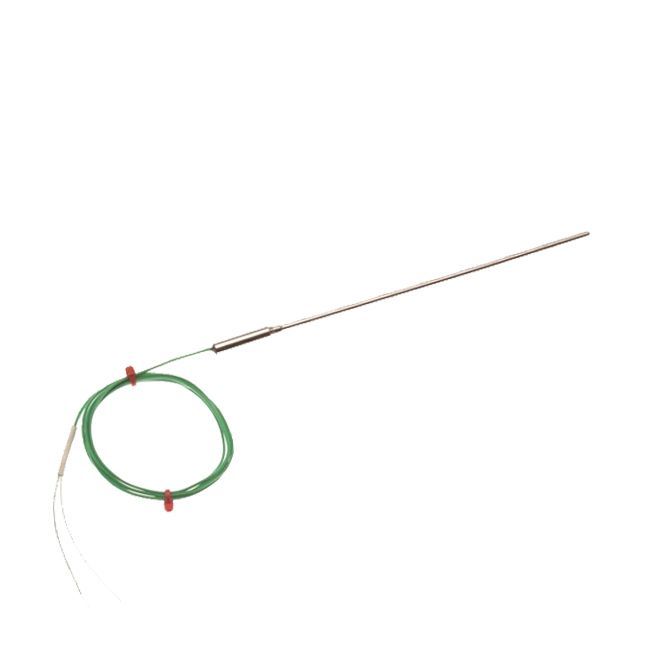

0.81mm Diameter Fast Response IEC Thermocouple Plain pot seal with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails - Grounded Junction - 100mm
Change Currency
SKU
XE-0224-001
£35.51
£29.59
Specifications
| General Description | Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails. |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction grounded from sheath |
| Probe Diameter | 0.81mm |
| Probe Length | 100mm |
| Sheath Material | K - Stainless steel 316 |
| Pot Type | Plain (+200°C) |
| Cable Length | 1M |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584) (Max Temp 250°C) |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | K +650°C |
| Min. Temperature | K -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
| Probe Material | 304 stainless steel |
