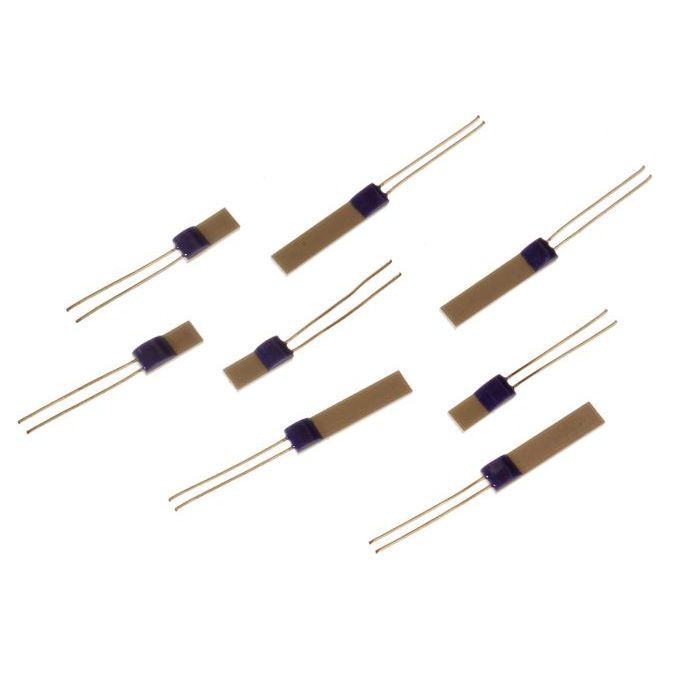

100 Ohm Flat Film Detectors - Class B - 1.2mm x 4mm
Change Currency
Labfacility are currently multi-sourcing flat film detectors in order to ensure we can maintain a supply service to our customers without affecting the quality or functionality for the foreseeable future.
All flat film detectors supplied, although differing in appearance and packaging in some cases, will meet the specifications as published on our data sheets.
Specifications
| Sensor Type | Pt100 (100 Ohms @ 0°C) |
|---|---|
| Element | Thin film, 10mm tails |
| Max. Temperature | 500°C |
| Min. Temperature | -50°C |
| Tolerance | Class B in accordance with IEC 60751 |
| Dimensions | 1.2mm Width x 4.0mm Length |
| Fundamental interval | 38.5 ohms (nominal) |
| Ice point resistance | 100 ohms |
| Self-heating | <0.5°C/mW |
| Stability | ±0.05% |
| Thermal response | <0.4s @ t0.9 (in water at 0.4m/sec) |
| Important Information | Resists vibration & shock |
