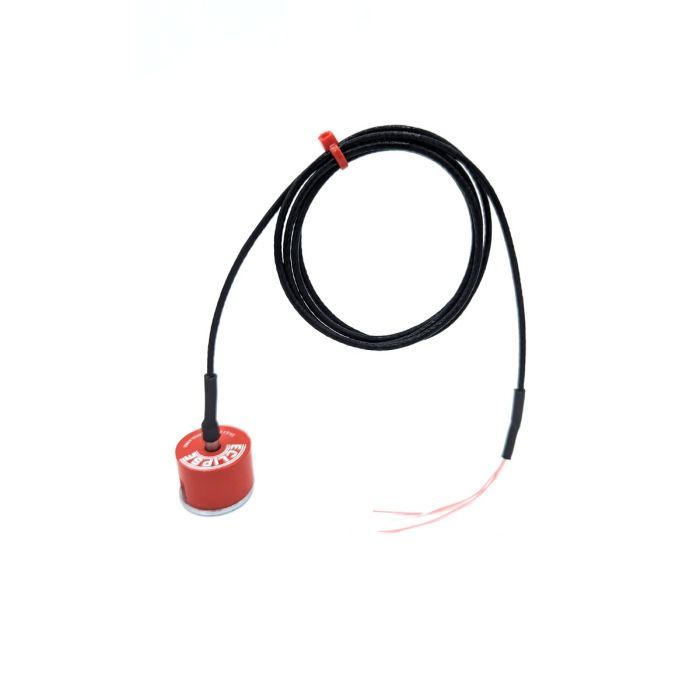

3.4Kg Magnetic surface Pt100 RTD 4 wire RTD sensor with PFA lead and tails - 3m length

Change Currency

SKU
XE-7801-001
£89.88 £74.90
  • Buy 2 - 14 for £80.89 £67.41 each
  • Buy 15+ for £76.40 £63.67 each
Series:
Magnetic RTD
Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

A surface mount magnet temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD). With 1 and 3 metres as standard PFA insulated flexible lead wire and stripped tails

  • 4Kg pull strength button magnet with 25.5mm diameter
  • Magnet will hold 90% of its pull strength at 250°C
  • Spring loaded tip for good contact
  • Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
  • Surface temperature measurement of Ferrous metals
  • Sensor temperature rating -50 to +250°C
General Description Surface temperature measurement of Ferrous metals
Sensor Type RTD
Magnet 3.4Kg pull strength button magnet with 25.5mm diameter. Magnet will hold 90% of its pull strength at 250°C
Cable Length 1m
Cable Type PFA insulated flexible lead wire and stripped tails
Cable Termination Bare Tails
Max. Temperature 250°C
Min. Temperature -50°C
Standards Met Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
Tip Spring loaded tip for good contact
