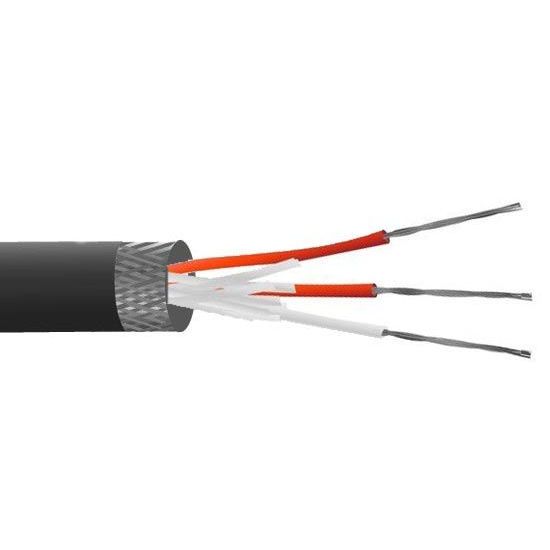

3 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire

Change Currency

SKU
XE-2735
£18.60 £15.50
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

3 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire

High temperature to 260°C, extruded PFA Teflon® construction. Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω

Specifications

General Description PFA insulated 7/0.2mm tin plated copper conductors, twisted cores with nylon cord, tin plated copper braided screen with PFA insulated outer jacket
Cable Length 10, 25, 50, 100m
Cable Type PFA Teflon® construction
Core / Strands 7/0.2mm
Insulation Material PFA Insulated
Max. Temperature +260°C
Min. Temperature -75°C
Number of Wires 3
Standards Met Cores colour coded Red & White in accordance with IEC-751, black outer jacket
