4-20mA analogue transmitter
Overall Height of only 23mm for low profile enclosures.

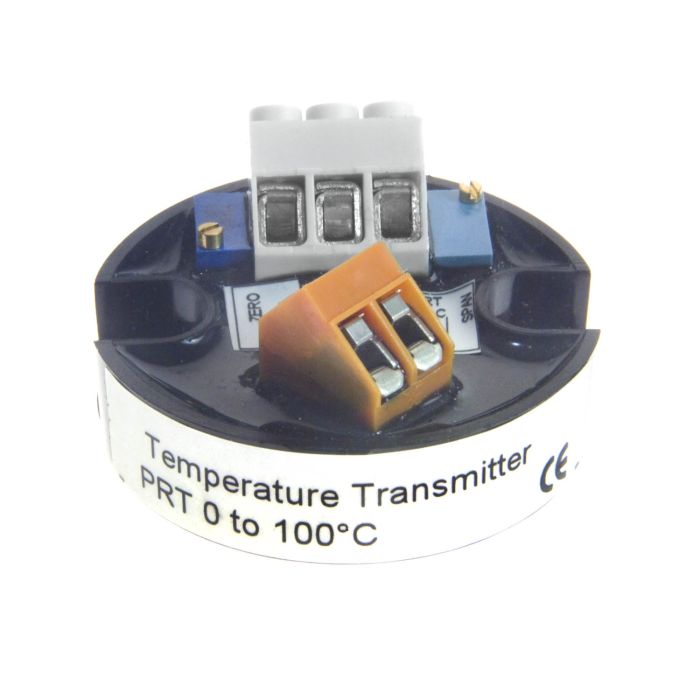

The 300TXL is a 4-20mA analogue temperature transmitter, which can be housed in a probe terminal head suitable for a DIN standard block.
The overall height is only 23mm allowing it also to be housed in low-profile enclosures.
With ranges for thermocouple and Pt100 sensors, the units offer an exceptionally wide range of span adjustment, which reduces the need for stockholding different temperature ranges.
A novel feature is the minimal interaction span and zero potentiometer action, which is time saving and convenient when calibrating or re-scaling.
- 4-20mA, 2 wire loop
- High accuracy & stability
- In-head mounting, DIN standard fixing
- Pt100 or thermocouple type J and K
- Effective input 'noise' rejection
- CE compliant
- RoHS compliant
