4-20mA Remote Wall Mounted Housing, Pt100 input 1 metre lead RTD / PRT

Change Currency

SKU
XE-5520
£77.28 £64.40
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Housing moulded in general purpose ABS, the external fixing points provide a simple and rapid means of mounting sensors directly onto ducts, dispensing with the need for separate mounting plates.

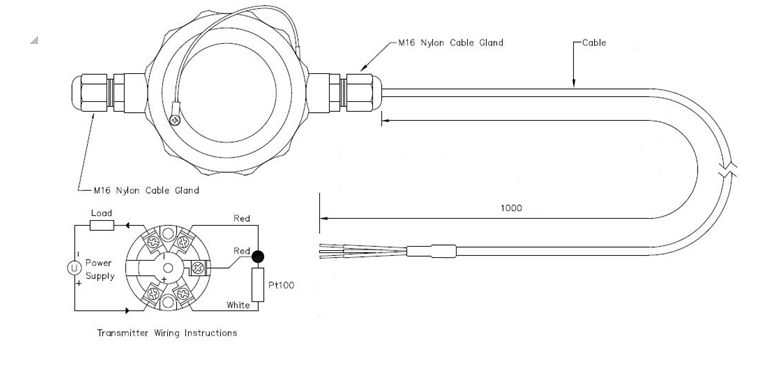

xe-5520 schemtic

General Description Compatible with Pt100 platinum resistance thermometers
Sensor Type Surface Mounting for remote installtion
Cable Length 1m
Core / Strands 7/0.2mm
Cable Termination Bare tails
Thread Entry Threads M16
Transmitter Yes
Range -50°C to +150°C or 0°C to +400°C (either can be re-ranged if desired)
Output 4-20 mA output
