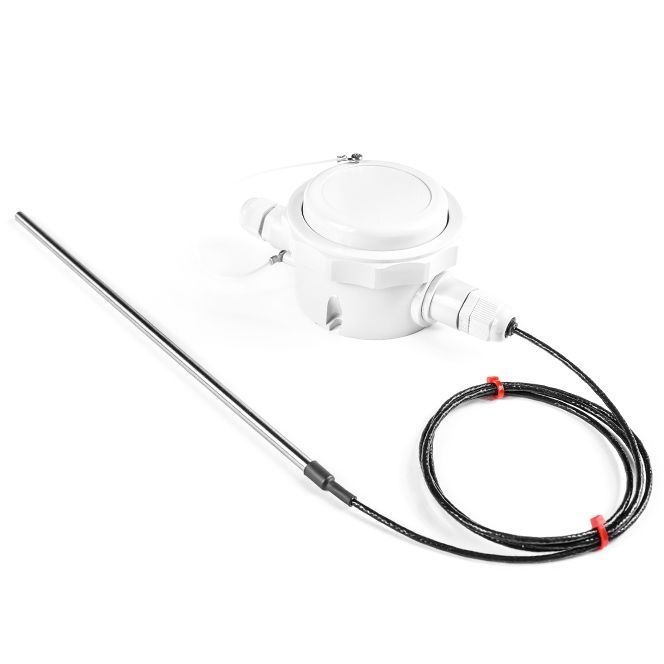

4-20mA remote wall mounted housing, Pt100 input with PFA cable & PRT sensor - 2M cable length
Change Currency
Housing moulded in general purpose ABS, the external fixing points provide a simple and rapid means of mounting sensors directly onto ducts, dispensing with the need for separate mounting plates.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Compatible with Pt100 platinum resistance thermometers |
|---|---|
| Sensor Type | Surface Mounting for remote installation |
| Probe Diameter | 6mm |
| Probe Length | 250mm |
| Cable Length | 2M |
| Cable Type | PFA screened |
| Core / Strands | 7/0.2mm |
| Head Type | High Impact ABS Plastic Construction |
| Thread | Entry Threads M16 |
| Transmitter | Yes |
| Range | -50°C to +150° |
| Output | 4-20 mA output |
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
