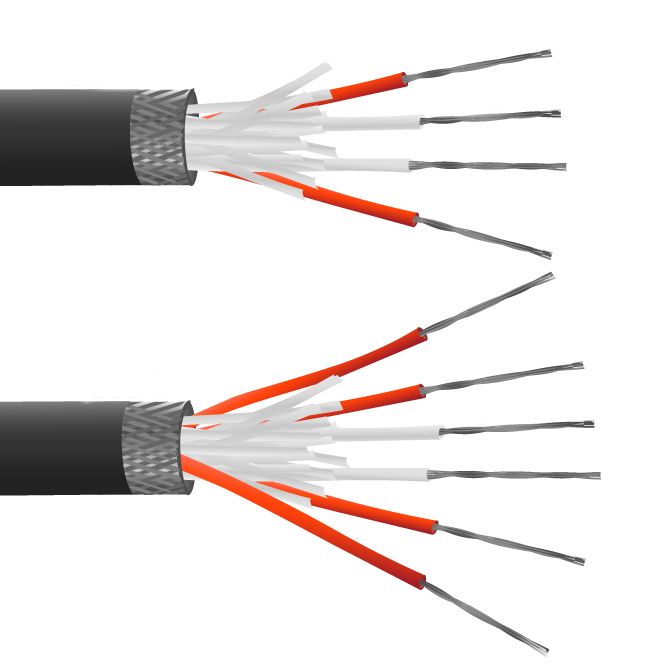

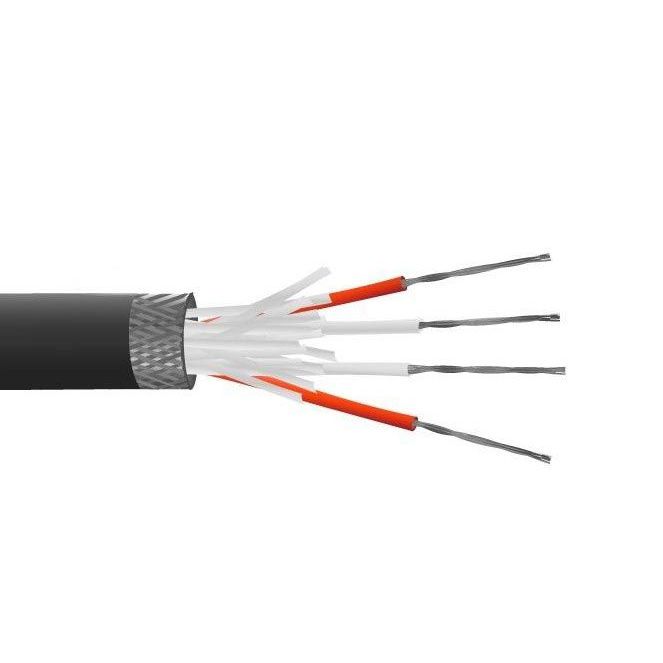

4 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire
High temperature to 260°C, extruded PFA Teflon® construction. Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω
Specifications
General Description | PFA insulated 7/0.2mm tin plated copper conductors, twisted cores with nylon cord, tin plated copper braided screen with PFA insulated outer jacket |
---|---|
Cable Length | 10, 25m |
Cable Type | PFA Teflon® construction |
Core / Strands | 7/0.2mm |
Insulation Material | PFA Insulated |
Max. Temperature | +260°C |
Min. Temperature | -75°C |
Number of Wires | 4 |
Standards Met | Cores colour coded Red & White in accordance with IEC-751, black outer jacket |
