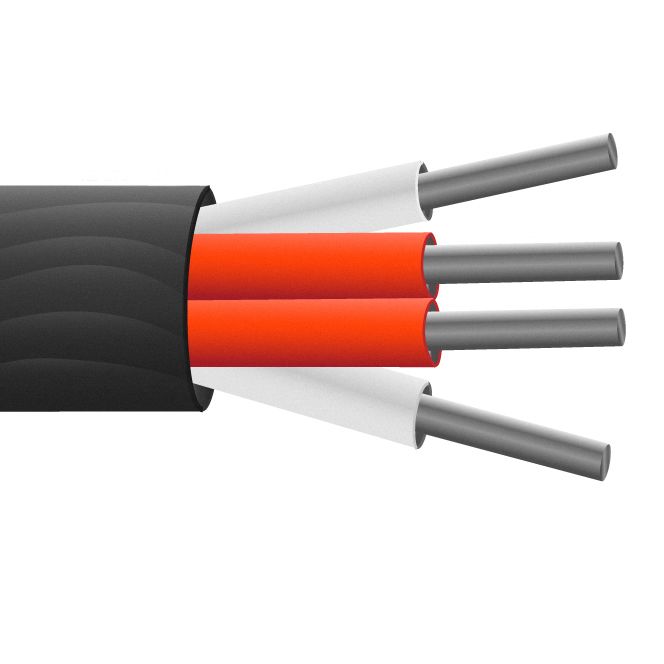

4 Core PTFE Insulated, Silver Plated Copper Screen, PRT Sensor Cable / Wire
Can be used to extend 2, 3 or 4 wire RTD configurations. Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω
Specifications
General Description | 4 core PTFE insulated 7/0.2mm silver plated copper conductors, twisted cores, kapton tape, silver plated copper braided screen with PTFE insulated outer jacket |
---|---|
Cable Length | 10, 25m |
Cable Type | wrapped PTFE tape construction |
Core / Strands | 7/0.2mm |
Insulation Material | Overall black PTFE insulation |
Max. Temperature | +260°C |
Min. Temperature | -75°C |
Number of Wires | 4 |
Standards Met | Cores colour coded 2 x Red / 2 x White to IEC-751 + black outer jacket |
