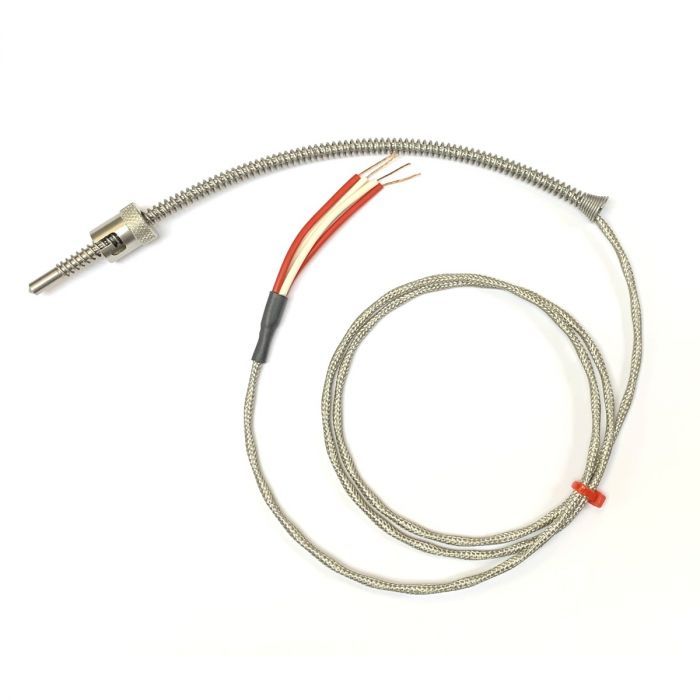

Adjustable Bayonet, Glassfibre Stainless Steel Overbraided Cable - Type PRT - 1M Length
Change Currency
SKU
XE-5654-001
£36.85
£30.71
Adjustable Bayonet with 200mm spring with adjustable fixing cap (11.5mm I.D. single slot).
Specifications
| General Description | PRT with adjustable insertion depth |
|---|---|
| Sensor Type | Pt100 4-wire |
| Cable Length | 1M |
| Cable Type | Glassfibre insulated lead with stainless steel Overbraid |
| Core / Strands | 4 core 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | 350°C |
| Min. Temperature | -50°C |
| Standards Met | IEC-60751 Class B |
| Bayonet cap | 11.5mm I.D. single slot |
| Spring | 6.0mm diameter x 200mm long |
