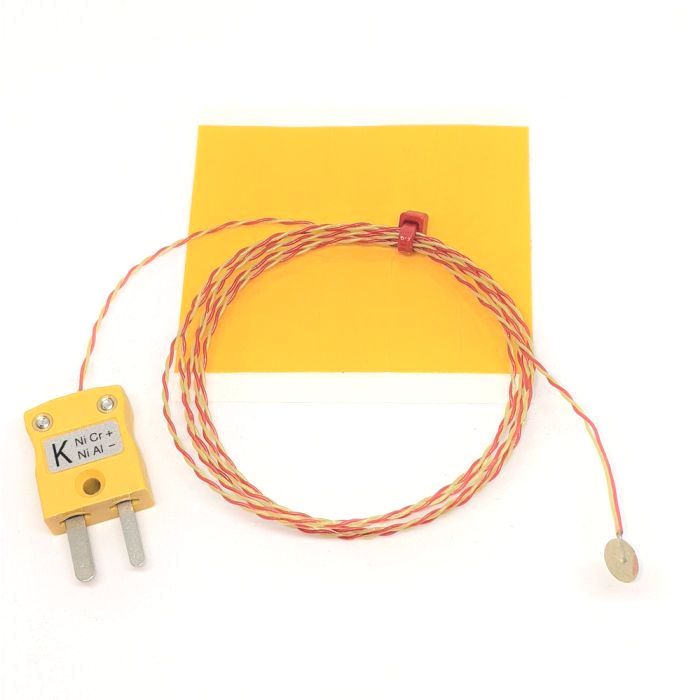

ANSI Fine Wire Disc Thermocouple, PFA with Miniature Plug - Type K with Miniature Plug Termination - 5M
Change Currency
SKU
XE-0569-001
£30.94
£25.78
- Buy 2 - 4 for £27.84 £23.20 each
- Buy 5+ for £24.76 £20.63 each
Specifications
| General Description | Exposed junction thermocouple with Copper Disc brazed at tip |
|---|---|
| Sensor Type | Copper disc, 6.35mm diameter x 0.3mm thick |
| Thermocouple Type | K |
| Thermocouple Junction | Grounded measuring junction |
| Cable Length | 5M |
| Cable Type | 1/0.2mm PFA Teflon® insulated twisted wire |
| Termination Type | Miniature Plug |
| Max. Temperature | 200°C |
| Min. Temperature | 0°C |
| Standards Met | ANSI MC96.1 |
| Colour | Positive: Red / Negative: Yellow |
| Accessories | Supplied with high temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process |
