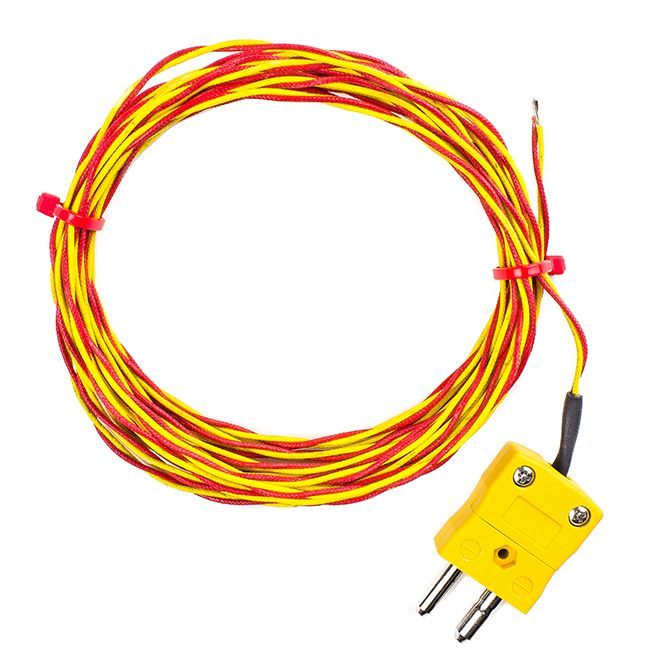

ANSI High Temperature Glassfibre Twin Twisted Exposed Welded Tip Thermocouple Type K with Standard Plug Termination - 10M Length
Change Currency
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Fast response, welded exposed junction. Good temperature resistance (not suitable in fluids) |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K |
| Cable Length | 10M |
| Cable Type | high temperature glassfibre insulated twisted cable |
| Core / Strands | 1/0.711mm conductors (21awg) |
| Cable Termination | Standard Plug |
| Max. Temperature | 700°C |
| Min. Temperature | 0°C |
| Tolerance | Tolerance to ANSI MC96.1 Class 2 |
| Standards Met | Colour code to ANSI MC96.1 |
| Connector Type | Plug |
| Connector Size | Standard |
| Colour | Yellow |
