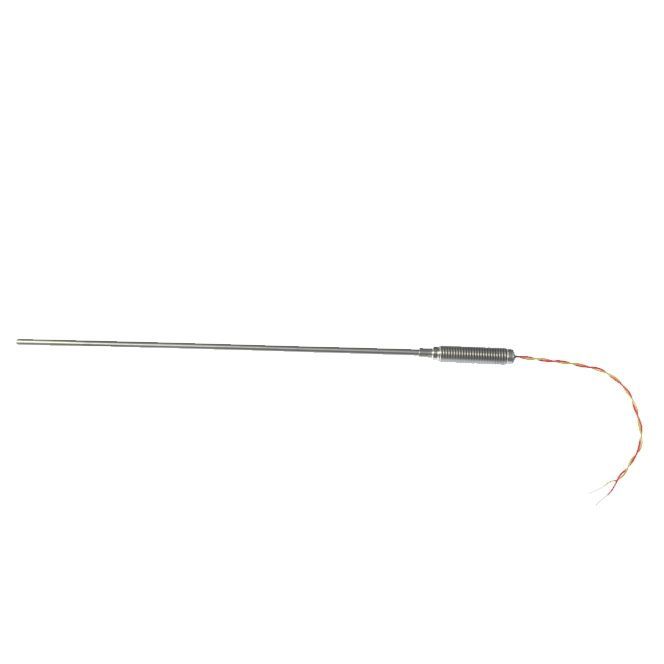

ANSI Mineral Insulated Thermocouple with Threaded Pot and 100mm of PFA insulated Twin Twisted ANSI lead - Type K - SS310 Sheath - 6.0mm x 500mm
Change Currency
- Buy 2 - 14 for £41.58 £34.65 each
- Buy 15+ for £40.73 £33.94 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Thermocouple Type | K |
| Thermocouple Junction | Insulated hot junction |
| Probe Diameter | 6.0mm |
| Probe Length | 500mm |
| Sheath Material | 310 stainless steel |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm |
| Cable Type | PFA twin twisted |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | 1100°C |
| Standards Met | colour coded to ANSI MC96.1 |
