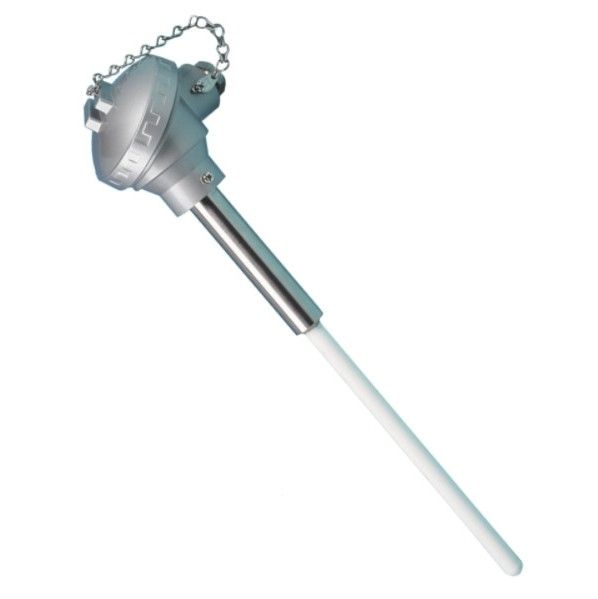

Ceramic Kiln Thermocouples For High Temperature (1400°C) with Aluminous Porcelain sheaths - Types K,N
Change Currency
The 100 mm long stainless steel support tube attaches the ceramic sheath to the industrial head and is included in the overall sheath length.
General Description | Ceramic thermocouples for furnaces, kilns and other high temperature applications |
---|---|
Sensor Type | Made with rugged 20 gauge (0.8mm dia) thermocouple wire for long-term performance |
Thermocouple Type | Types K and N with Aluminous Porcelain sheaths, rated to 1400°C |
Sheath Material | 12 mm diameter ceramic sheath |
Max. Temperature | +1400°C |
IP Rating | IP67 rated industrial protection head with cable entry and screw terminal block |
Support Tube | 21 mm O.D. support tube, 100 mm long |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
