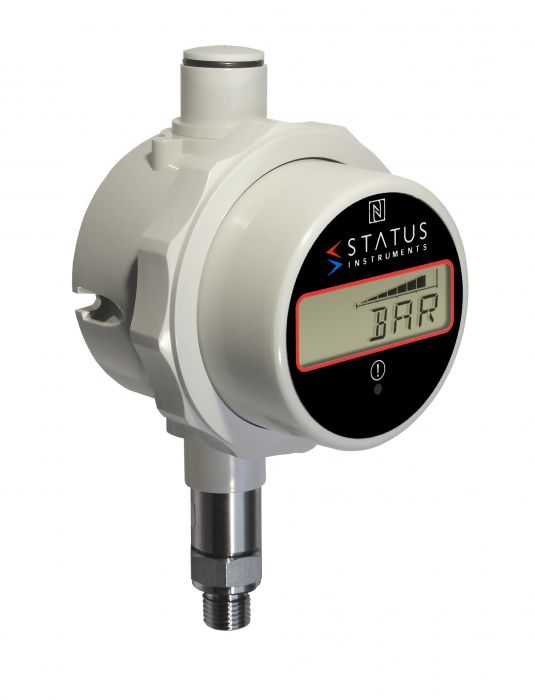

Status DM650PM - Side Mounted 0-100 bar Pressure & Temperature Indicator With Data Logging, Alarm & Messaging

Change Currency

SKU
XE-6153-003
£270.60 £225.50
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90330000
Manufacturer:
Status
Country of Origin:
GB
  Case Style Input Range Base Entry Side Entry 1 Side Entry 2
DM650PM Side Mounted Sensor Can Be Wall Mounted B 0-100 bar (G) N/A (00) M16 (16) M20 (20)

DM650PM / B / G / 00 / 16 / 20



  • UP TO 100 BAR PRESSURE/ TEMPERATURE DISPLAY WITH SCALING/ LINEARISATION
  • BATTERY POWERED
  • ALARM RELAY, MAX/ MIN INFORMATION
  • USER SET DISPLAY MESSAGING
  • 5000 POINT DATA LOGGER WITH USB AND NFC INTERFACE


The DM650PM battery powered pressure switch accepts gauge pressure inputs up to 100 bar and displays the sensor pressure in BAR, PSI or the user’s engineering unit on a 6-digit LCD display. The instrument offers an advanced display mode allowing the user to also display one or two (1 to 32) character messages. Additional to the messages, the user may select an alert event to occur when the pressure is within a band. A change-over relay can be used together with the messaging and alerts to provide switching at user set points. In addition to this on board datalogging is also available to record process details at up to 5000 points. Force calculations (Ram force for example) can also be performed and displayed.
