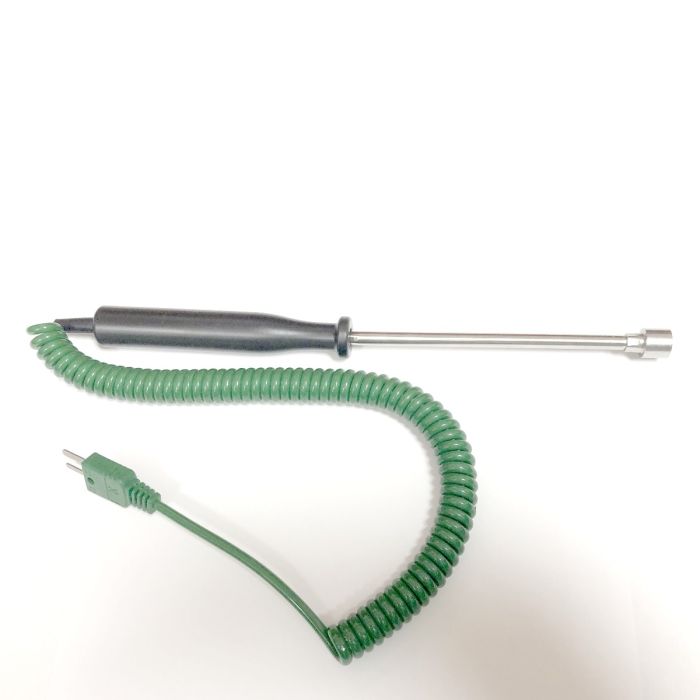

Dual Surface Immersion (Waterproof) Probe - Type K
Change Currency
An ideal probe for water temperature testing to aid legionella prevention.
Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.
- K Type Thermocouple Class I (±1.5°C ±0.25%)
- Measurement Range: -10 to + 200°C
- Probe measures Ø12 x 120mm long stem with Ø12 x 10mm tip.
- Dual Purpose for liquid and surface temperature measurement
- Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof.
General Description | Dual Purpose for liquid and surface temperature measurement |
---|---|
Thermocouple Type | K Type Thermocouple Class I (±1.5°C ±0.25%) |
Calibration | IEC |
Probe Diameter | 12mm |
Probe Length | 120mm long stem with Ø12 x 10mm tip |
Sheath Material | Stainless steel sheath |
Cable Length | 1m of straight polyurethane with moulded connector |
Cable Type | polyurethane |
Cable Termination | moulded connector |
Max. Temperature | +200°C |
Min. Temperature | -10°C |
Standards Met | Colour code (cores & jacket) to IEC-584-3 |
IP Rating | IP67 |
Connector Type | Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification |
Connection Type | Plug |
Connector Size | Miniature (moulded-on) |
Features #1 | Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof. |
