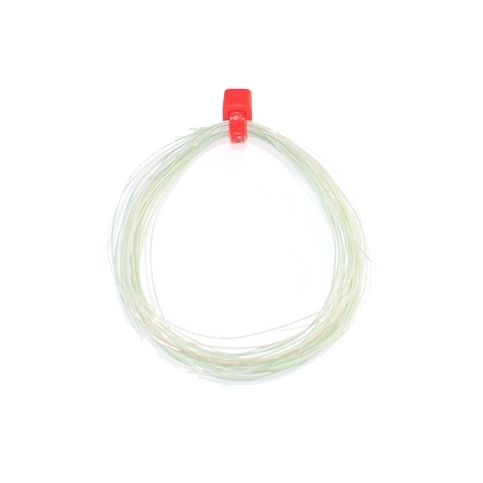

PFA Insulated IEC Fine Gauge Exposed Junction Thermocouple (0.076mm conductors) - Type K - 1M Length
Change Currency
SKU
XE-3510-001
£24.80
£20.67
- Buy 2 - 4 for £18.42 £15.35 each
- Buy 5 - 298 for £14.70 £12.25 each
- Buy 299 - 498 for £10.24 £8.53 each
- Buy 499+ for £8.68 £7.23 each
Thermocouple type K. Fast response, welded exposed junction available with bare tails. Ideal for test & development applications.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Fast response, welded tip exposed junction |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K IEC |
| Cable Length | 1M |
| Cable Type | Teflon® PFA insulated wires |
| Core / Strands | 0.003" (0.076mm) conductors |
| Termination Type | Bare Tails |
| Max. Temperature | 260°C |
| Min. Temperature | -75°C |
| Standards Met | IEC-584-3 |
