PFA Insulated IEC Fine Gauge Exposed Junction Thermocouple (0.076mm conductors) - Type K - 300mm Length

Change Currency

SKU
XE-0453-001
£11.51 £9.59
  • Buy 2 - 4 for £10.86 £9.05 each
  • Buy 5+ for £10.22 £8.52 each

Maximum 30 characters

Maximum 40 characters

Series:
Exposed Junctions
Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

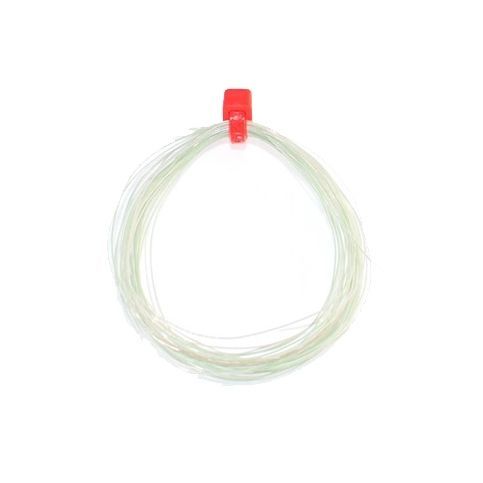

Thermocouple type K. Fast response, welded exposed junction available with bare tails. Ideal for test & development applications.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information

Specifications

General Description Fast response, welded tip exposed junction
Sensor Type Exposed Junction
Thermocouple Type K IEC
Cable Length 300mm
Cable Type Teflon® PFA insulated wires
Core / Strands 0.003" (0.076mm) conductors
Termination Type Bare Tails
Max. Temperature 260°C
Min. Temperature -75°C
Standards Met IEC-584-3
