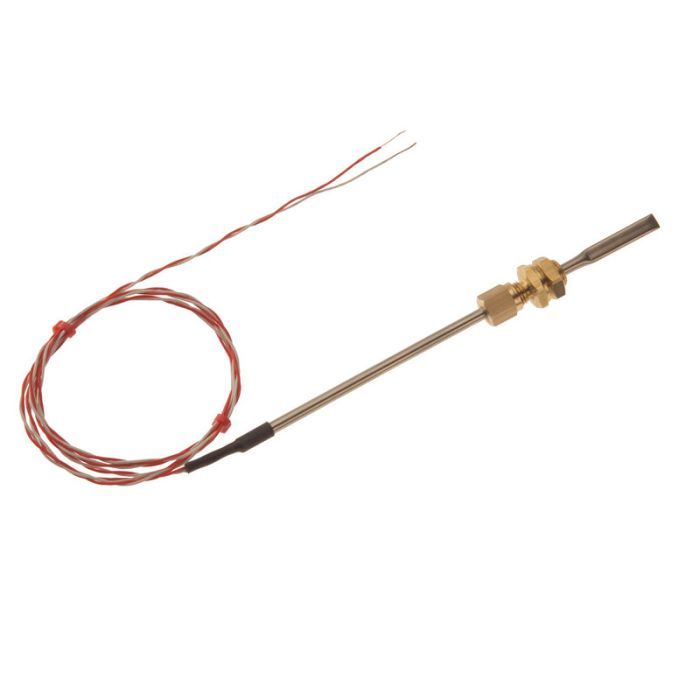

Flat Tip Probe – Type RTD / PRT - 2M Length

Change Currency

SKU
XE-3698-001
£30.55 £25.46
  • Buy 2 - 4 for £29.02 £24.18 each
  • Buy 5+ for £27.49 £22.91 each
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:
  • General purpose Pt100 probe
  • Flattened at tip for improved thermal response
  • 2 wire configuration
  • Class B, to IEC 751
  • 316 stainless steel sheath, 4.0mm diameter x 150mm long
  • 1-metre-long 7/0.2mm Teflon® insulated 2 core twisted lead
  • Includes 1/8” BSPP brass male compression fitting with locking nut
  • Temperature range -50°C to + 250°C

Specifications

General Description 316 stainless steel probe, 4.0mm diameter (6mm max. across flat area of tip) x 150mm long overall
Sensor Type Pt100 (100 Ohms @ 0°C) to IEC 751, Class B
Probe Temperature Range -50°C to +250°C
Cable Length 2M
Cable Type 7/0.2mm Teflon® insulated 2 core twisted leads
Termination Type 2-wire tails
Accessories 1/8” BSPP brass male compression fitting with locknut included
