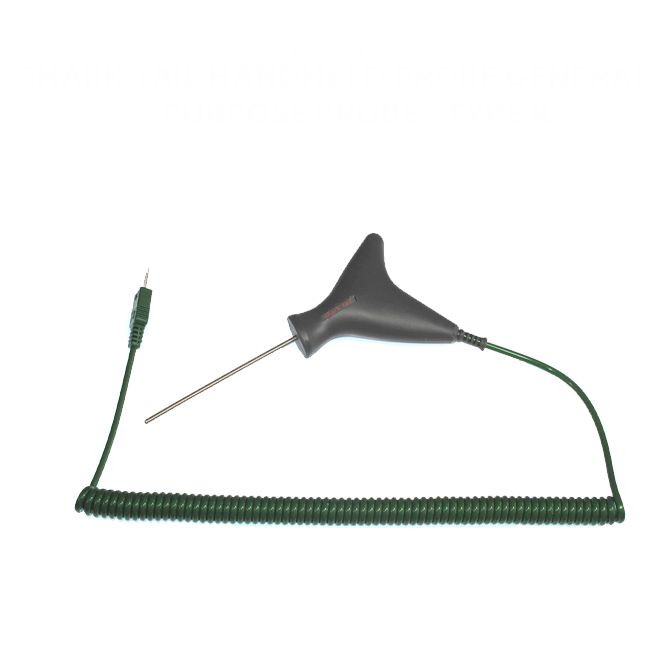

Antimicrobial General Purpose Ergonomic Probe - Type K,T,PRT
These general purpose handheld sensors have an ergonomical shaped handle for ease of use. The handle also contains an antimicrobial substance which kills microorganisms, making it ideal for the food industry or applications where cleanliness is paramount.
- IP67 rated
- Torque & Tensile Strength tested
- Antimicrobial handle
- Ergonomically designed
- The solid handle and cable have also been tested for torque and tensile strength. The curly polyurethane cable is 2 metres long (extended) with a moulded on connector in IEC colours.
The handle has been tested to IP67, which means it is totally protected against dust ingress and protected against short periods of immersion in water.
- Probe length: 100 or 300mm
- Probe Diameter: 1.5 or 3mm (4mm PRT Probe)
- Cable Length: 2 metres (extended)
- Cable termination: K or T Miniature plug (IEC 584) PRT bare wires (4 wires) (IEC 751)
- Probe temp range: Type ‘K’ -50°C to +1100°C
- Probe temp range: Type ‘T’ -50° to + 400°C
- Probe temp range: PRT -50°C to +260°C
- Sensor type: General purpose, Type K, T or PRT
- Construction: Mineral insulated Thermocouple, 316 stainless steel
- Element/hot junction: Single element, junction insulated from sheath (Offers protection against spurious electrical signals)
- Cable: 2 metre Polyurethane (extended), colour coded in accordance with IEC with moulded on miniature plug.
- PRT version is supplied with bare tails, NO PLUG FITTED.
