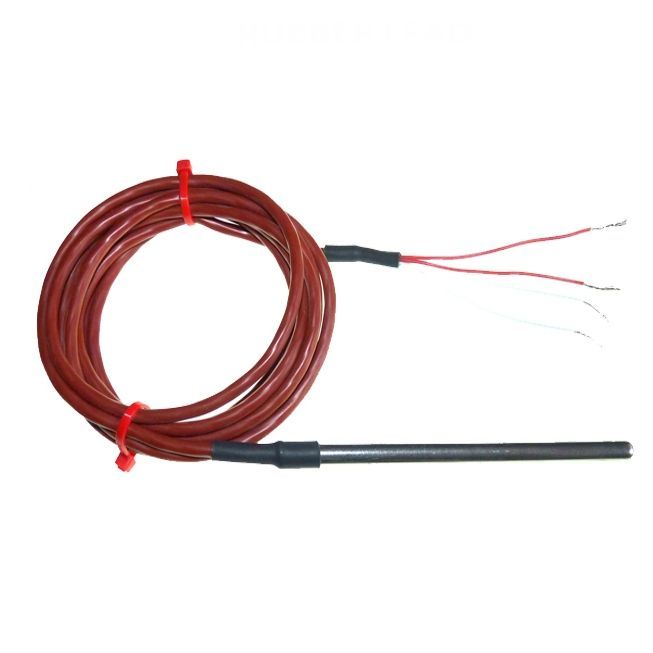

General Purpose Pt100 Silicone Rubber Lead - Type PRT - 6.0mm Diameter - 50mm Length
Change Currency
SKU
XE-3630-001
£67.02
£55.85
- Buy 2 - 14 for £53.16 £44.30 each
- Buy 15+ for £50.48 £42.07 each
Specifications
| General Description | Suitable for general purpose industrial & commercial use |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
| Probe Diameter | 6.0mm |
| Probe Length | 50mm |
| Sheath Material | 316 stainless steel sheath |
| Cable Length | 2M |
| Cable Type | Flexible silicone rubber insulated |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Termination Type | 4-wire tails allows connection to any PT100 instrument 2, 3 or 4 wire |
| Max. Temperature | 200°C |
| Min. Temperature | -50°C |
| Accuracy | Class B |
| Number of Wires | 4 |
