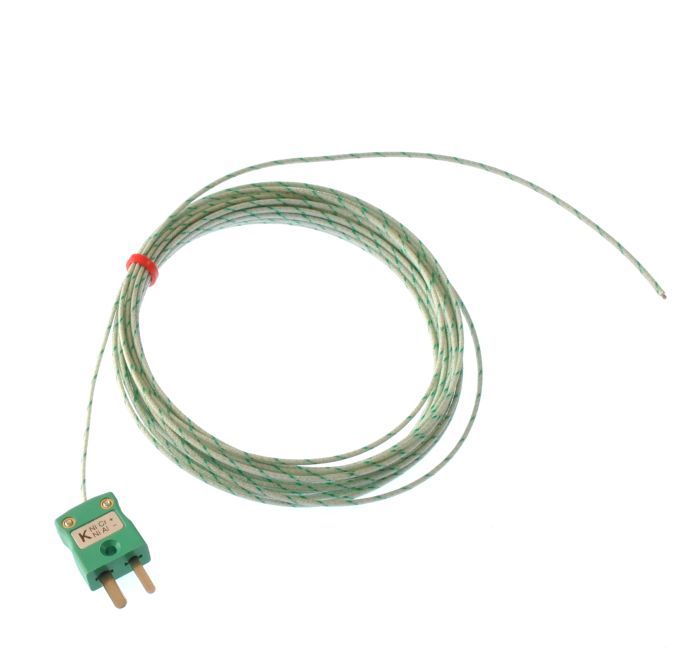

Glassfibre insulated Flat Pair IEC Exposed Junction Thermocouple - Type K with Miniature Plug Termination - 1/0.315mm x 1M
Change Currency
SKU
XE-5571-001
£13.76
£11.47
- Buy 2 - 4 for £10.88 £9.07 each
- Buy 5+ for £10.36 £8.63 each
Specifications
| General Description | Good temperature resistance (not suitable in fluids) |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K |
| Cable Length | 1M |
| Cable Type | Glassfibre |
| Termination Type | Miniature flat pin plug colour coded in accordance IEC 584 |
| Max. Temperature | +350°C (short periods up to 400°C) |
| Min. Temperature | -60°C |
| Tolerance | Class 2 |
| Standards Met | IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Green |
