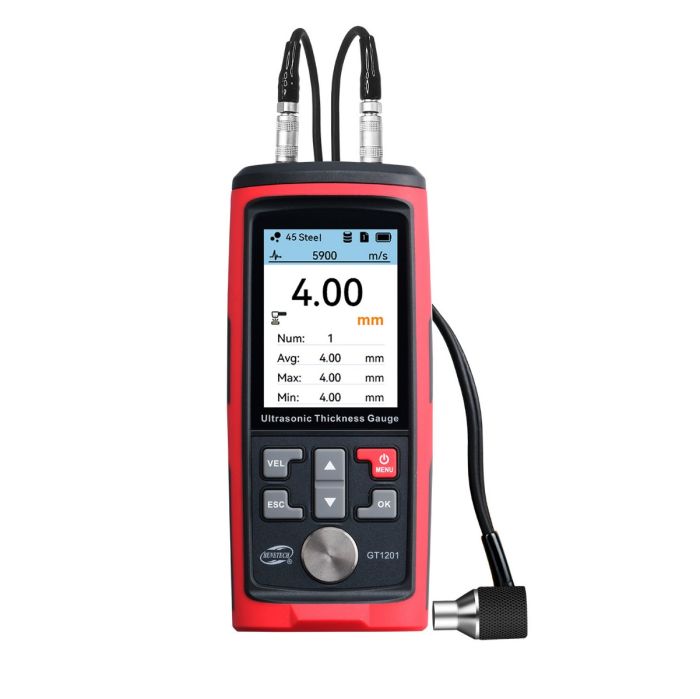

GT1201 Ultrasonic Thickness Gauge

Change Currency

SKU
XE-4150-001
£107.98 £89.98
Lead Time:
In-Stock
Weight:
500g
Tariff Code:
90330000
Country of Manufacture:
CN
RoHS Compliant:
Product Compliance:
Postage & Delivery:

The hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement.

This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use.

It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument.

Specifications

Model GT1201
General Description Ultrasonic Thickness Gauge
Accuracy +/- (0.5% H +0.05)mm
Readings 1500 storage
Resolution 0.01mm (1.00-99.99mm) / 0.1mm (100-300mm)
Battery 1000mAh 3.7V Lithium Battery
Dimensions 150.6mm x 65.3mm x 35mm
Function #1 Measurement range: 1.00 - 300.0mm (steel)
Function #2 Operation Frequency: 5MHz / 2.5MHz
Function #3 Sound Speed Measurement: 1000 - 9999 m/s
Operating Temperature 0-40°C
Weight 158g
Power Supply USB charging 5V 1A
