Hygienic Pt100 Resistance Thermometer, 1.5'' RJT Style Fitting RTD / PRT

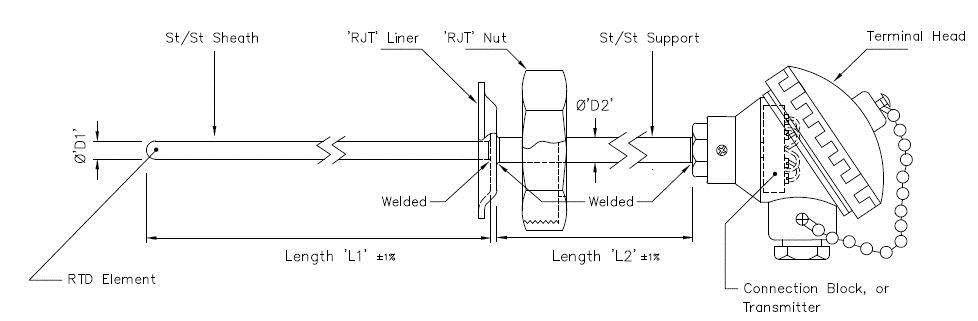

Schematic drawing RJT


RJT unions (Ring Joint Type) are often referred to as a standard union. The compromise of an o-ring style gasket which leaves a small crevice where the liner and male part of the union overlap.

Ideal for hygienic processes including dairy, brewery and pharmaceutical applications.

Specification

  • Sensor Type: Pt100, 3 or 4 wire single element class A
  • Connection Type: RJT 316SS nut and liner
  • Terminal Head: KNEF
  • Transmitter: Optional SEM-203p transmitter, ranged -50°C to +150°C
  • Support Dia (D2): 8.0mm*
  • Support Length (L2): 50mm*

*see schematic under 'Product Literature' tab for full details



GBP EUR USD JPY
Excl. VAT: £115.13 Incl. VAT: £138.16

* Required Fields

Labfacility Part No:
XE-5525
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
United Kingdom
RoHS Compliant:
