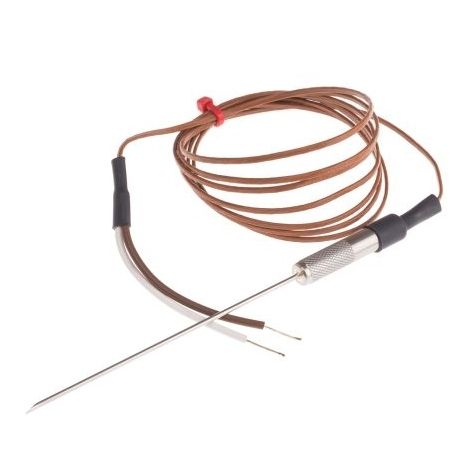

IEC Hypodermic Tip Thermocouple, PTFE - Type T
Change Currency
- Buy 2 - 14 for £33.49 £27.91 each
- Buy 15+ for £30.12 £25.10 each
| Sensor Type | chisel point Thermocouple |
|---|---|
| Thermocouple Type | T |
| Thermocouple Junction | Grounded hot junction |
| Probe Diameter | 1.6mm |
| Probe Length | 100mm |
| Sheath Material | 316 stainless steel sheath |
| Cable Length | 1.5m |
| Cable Type | PTFE insulated cable |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare wire tails (+Brown/-White) |
| Max. Temperature | +250°C |
| Min. Temperature | -75°C |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
