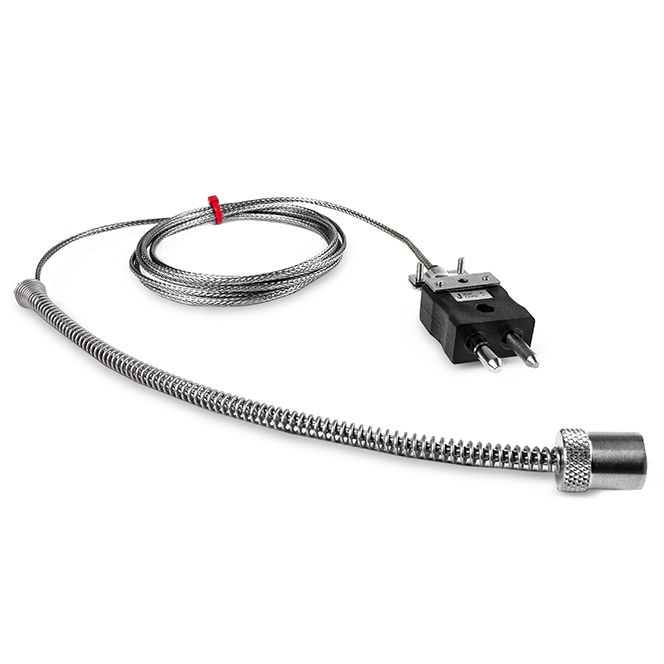

IEC Adjustable Bayonet Thermocouple, Glassfibre Stainless Steel Overbraided Cable - Type J - Standard Plug Termination with Cable Clamp - 2M
Change Currency
SKU
XE-5635-001
£47.64
£39.70
- Buy 2 - 14 for £42.02 £35.02 each
- Buy 15+ for £39.80 £33.17 each
Specifications
| General Description | Thermocouple with adjustable insertion depth |
|---|---|
| Sensor Type | 6.0mm diameter tip |
| Thermocouple Type | J |
| Thermocouple Junction | Grounded tip for fast response |
| Cable Length | 2M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Cable Termination | Standard Plug |
| Max. Temperature | 350°C |
| Min. Temperature | -60°C |
| Standards Met | IEC-584-3 |
| Bayonet cap | 11.5mm I.D. single slot |
| Connector Type | Plug |
| Connector Size | Standard |
| Thread | M6 x 1mm thread |
| Spring | 200mm |
