IEC Fine Wire Disc Thermocouple, PTFE - Type K

Change Currency

SKU
XE-3515
£13.19 £10.99
Lead Time:
Select Options
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

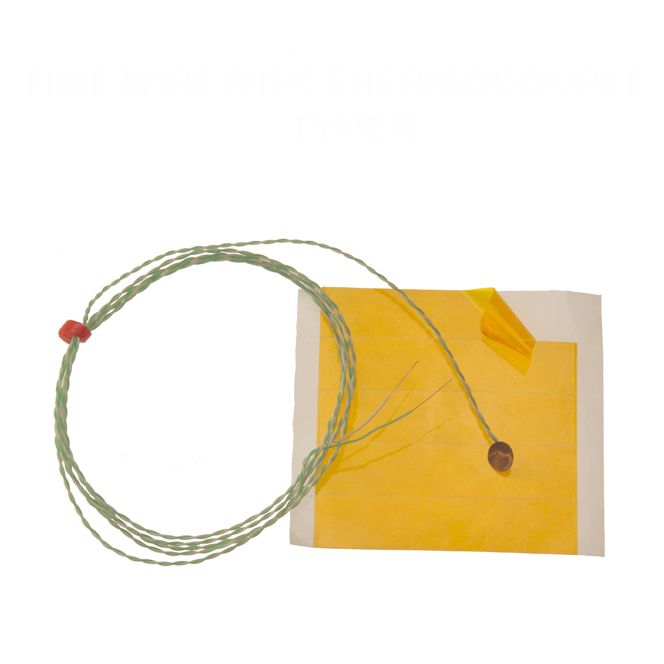

Copper disc thermocouple with high temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process.



General Description Fast response – ideal for surface measurement
Sensor Type Copper disc, 6.35mm diameter x 0.3mm thick
Thermocouple Type K
Cable Length 1m
Cable Type PTFE insulated twisted wire
Core / Strands 1/0.2mm
Termination Type Bare tails
Max. Temperature +200°C
Min. Temperature -0°C
Standards Met IEC-584-3
