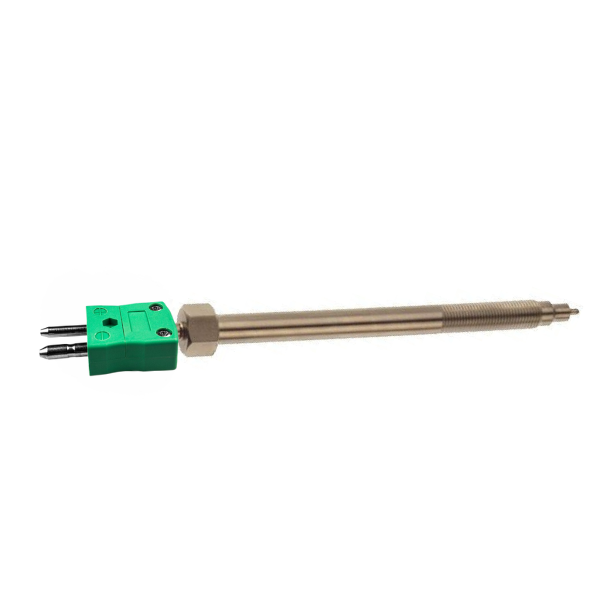

IEC Melt Bolt Thermocouple - Type K - 152mm Bolt Length

Change Currency

SKU
XE-3923-001
£78.24 £65.20
  • Buy 5+ for £69.98 £58.32 each
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Product Compliance:
Postage & Delivery:

Specifications

General Description Designed to withstand high pressure applications experienced with molten plastics & polymers
Sensor Type Typically used in plastics extruders and injection moulders
Thermocouple Type K
Thermocouple Junction Insulated hot junction
Probe Diameter 3mm
Probe Length 5mm with 152mm bolt length
Sheath Material Stainless steel
Termination Type Standard plug termination (round pin)
Max. Temperature 500°C
Tolerance Tolerance & colour code in accordance with IEC-584 specification
Standards Met IEC
Thread 1/2”UNF-20 thread
