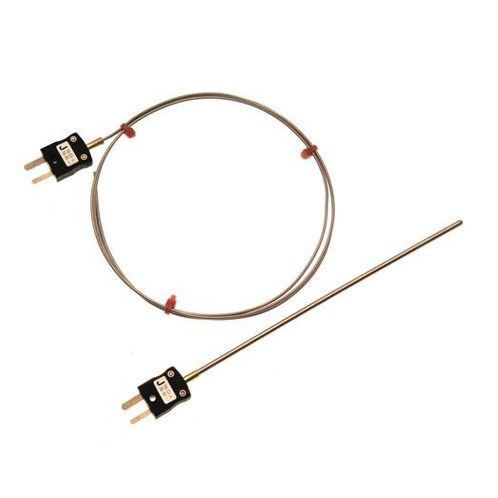

IEC Mineral Insulated Thermocouple with Miniature Plug - Type J - 3.0mm x 2000mm
Change Currency
SKU
XE-3275-001
£52.13
£43.44
- Buy 2 - 14 for £45.41 £37.84 each
- Buy 15+ for £44.03 £36.69 each
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | J |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 3.0mm |
| Probe Length | 2000mm |
| Sheath Material | Stainless steel 321 |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | 760°C |
| Min. Temperature | -100°C |
| Standards Met | IEC 584 |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Black |
