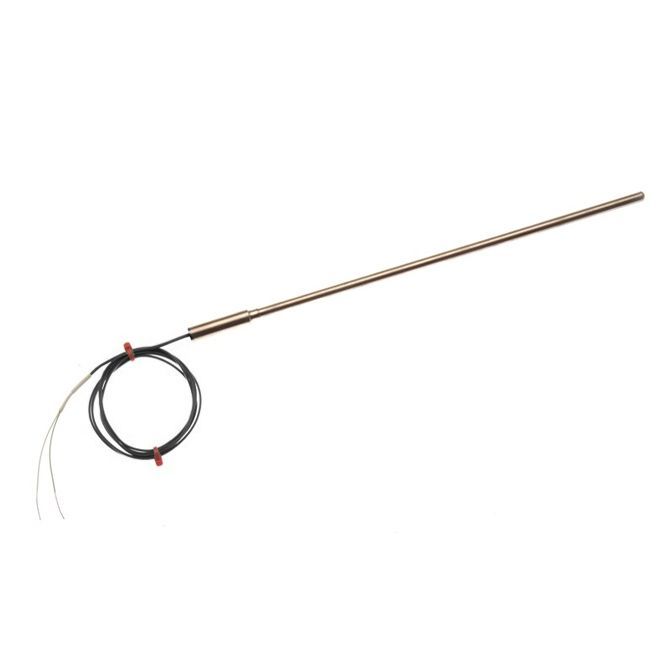

IEC Mineral Insulated Thermocouple with Plain Pot Seal and 1m of PFA Insulated IEC Lead - Type J - 3.0mm x 500mm
Change Currency
- Buy 2 - 14 for £37.43 £31.19 each
- Buy 15+ for £36.29 £30.24 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails. |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | J |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 3.0mm |
| Probe Length | 500mm |
| Sheath Material | 321 Stainless Steel |
| Pot Type | Plain (+200°C) |
| Cable Length | 1M |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584) |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | 760°C |
| Min. Temperature | -100°C |
| Tolerance | Class 1 |
| Standards Met | IEC 584 |
