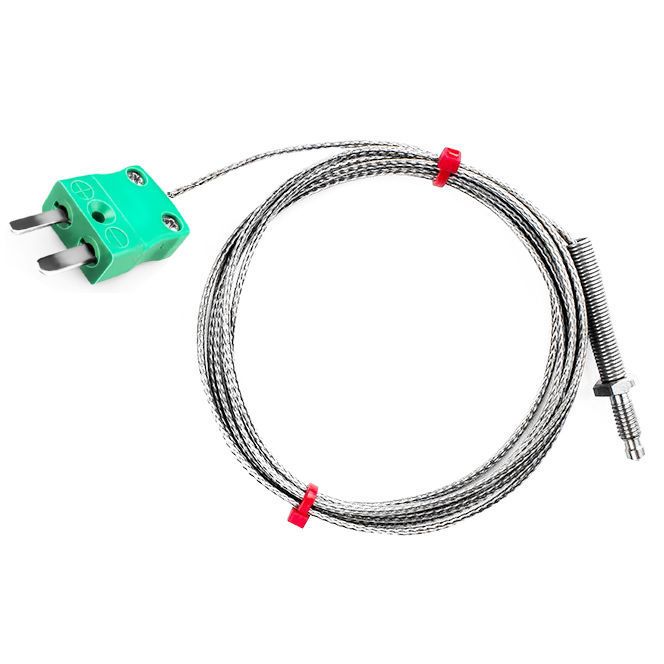

IEC Nozzle Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K - Miniature Plug Termination - 5M
Change Currency
SKU
XE-0882-001
£50.86
£42.38
- Buy 2 - 4 for £43.22 £36.02 each
- Buy 5+ for £36.74 £30.62 each
Specifications
| General Description | Thermocouple housed in a stainless steel threaded bolt |
|---|---|
| Thermocouple Type | K |
| Thermocouple Junction | Grounded hot junction for fast response, M6x1mm thread |
| Probe Diameter | 4.5mm |
| Probe Length | 150mm |
| Cable Length | 5M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Cable Termination | Miniature Plug |
| Termination Type | Grounded hot junction for fast response, M6x1mm thread |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | IEC |
| Connector Type | Plug |
| Connector Size | Miniature |
| Dimensions | 25x13mm shim (0.2mm thick) |
| Thread | M6 x 1mm thread |
