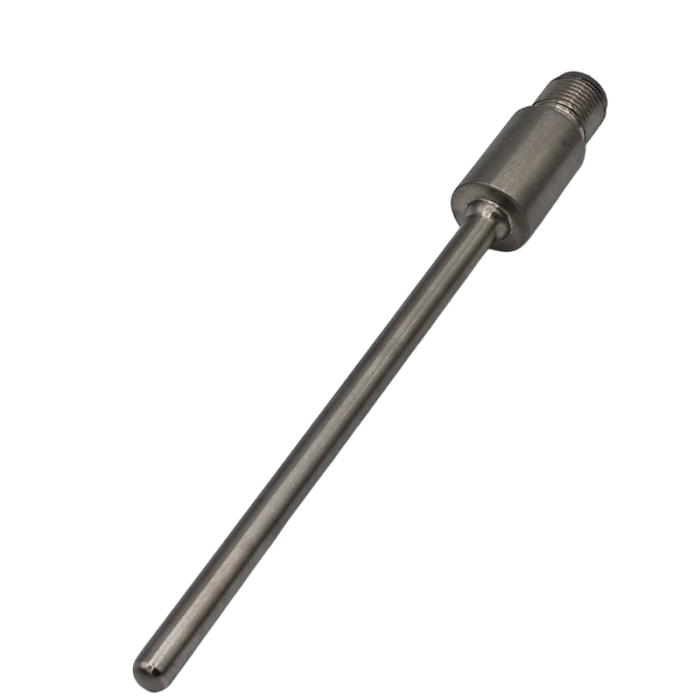

Industrial Automation Pt100 RTD Sensor with M12 connector - Plain Barrel Process Connection Type - 6m Sheath Diameter - 150mm Sheath Length

Change Currency

SKU
XE-7205-001
£82.20 £68.50
  • Buy 2 - 14 for £78.10 £65.08 each
  • Buy 15+ for £73.99 £61.66 each

Maximum 30 characters

Maximum 40 characters

Series:
M12 Pt100
Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

An industrial automation temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD).

Available in 3 & 6mm diameter 316 Stainless steel sheath with standard lengths of 100, 150, 200 & 250mm. Supplied with plain barrel or screw in options 1/4 BSP, 1/2 BSPP & 1/4 & 1/2 NPT process threads.

The Sensor features an industry standard 4 pin M12 A coded instrument connection, suitable for new industrial process control & automation applications and field replacement of sensors.

  • Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
  • Sensor temperature rating -50 to +250°C
  • 4 pin M12 A coded instrument connection
  • 3 & 6mm 316 stainless steel sheath
  • 100, 150, 200 & 250mm standard lengths
  • Plain barrel or screw in options 1/4 BSP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
  • For use with M12 female connectors & extension cables.

Typical Applications

  • Automation Applications
  • Field Replacement of Sensors
  • Industrial Process Control
  • Pharmaceuticals & Chemical Plants

Specifications

General Description Pt100 RTD Class A 4-wire resistance thermometer as per IEC 751
Sensor Type Pt100
Sheath Material 316 Stainless Steel
Termination Type M12 Male
Sheath Length (mm) 150mm
Sheath Diameter (mm) 6mm
Process Connection options Plain Barrel process thread
Max. Temperature 250°C
Min. Temperature -75°C
Number of Wires 4 wire
Important Information Typical Applications: Automation Applications / Field Replacement of Sensors / Industrial Process Control / Pharmaceuticals & Chemical Plants
