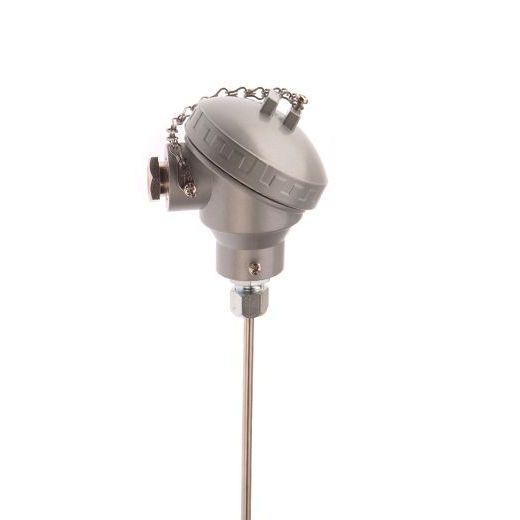

Industrial Style Mineral Insulated Thermocouple with KNE Terminal Head - Type J - 6.0mm Diameter - 500mm Length
Change Currency
SKU
XE-3261-001
£105.90
£88.25
- Buy 2 - 14 for £89.82 £74.85 each
- Buy 15+ for £79.46 £66.22 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral insulated Thermocouple fitted with KNE terminal head |
| Thermocouple Type | J |
| Thermocouple Junction | Insulated hot junction |
| Probe Diameter | 6.0mm |
| Probe Length | 500mm |
| Sheath Material | 310 stainless steel sheath |
| Head Type | KNE, Cast aluminium finish, screw type lid with chain |
| Gland | M16 x 1.5mm Plated brass gland fitted |
| Max. Temperature | 1100°C |
| Min. Temperature | -40°C |
| IP Rating | IP67 |
