Fabricated Tube Thermocouples with Crimp Seal and Lead Wire Type K JIS with 100mm Sheath Length - 4.5mm Sheath Diameter

Change Currency

SKU
XE-7977-001
£48.60 £40.50
  • Buy 2 - 4 for £36.46 £30.38 each
  • Buy 5+ for £24.40 £20.33 each
Series:
Fabricated Tube Thermocouple
Lead Time:
7 - 10 working days
Weight:
100g
Tariff Code:
90330000
Manufacturer:
Labfacility
RoHS Compliant:
Product Compliance:
Postage & Delivery:

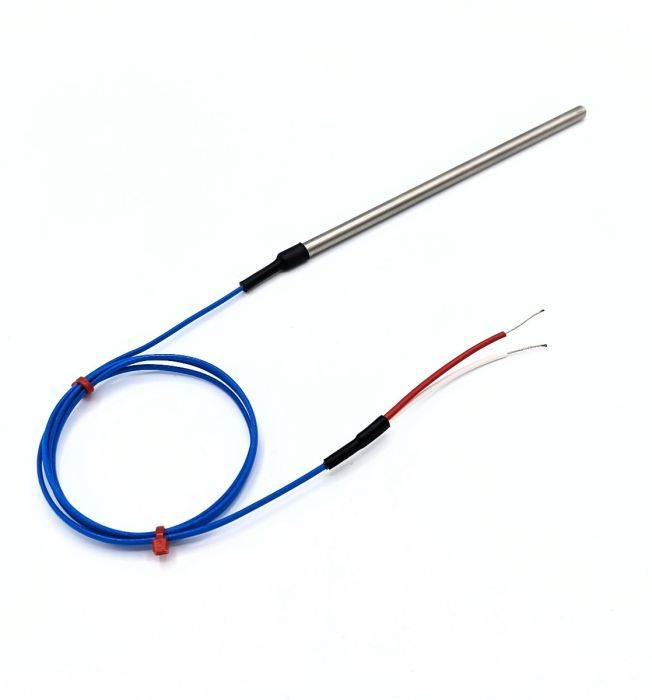

A fabricated JIS thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.

These items have a measuring range of -75 to +250°C and are available in JIS Type K thermocouple calibration, with diameters of 3, 4.5 & 6mm 316 Stainless steel sheath, and standard lengths of 50, 100, 150 & 250 mm.

  • Class 1 Thermocouple accuracy
  • Sensor temperature rating -75 to +250°C
  • 3, 4.5mm & 6mm 316 stainless steel sheath
  • 50, 100, 150 & 200mm standard lengths

Typical Applications

  • Industrial Process Control
  • Pipes or Ducts
  • Ovens and heating
  • General purpose

Specifications

General Description Fabricated Type K Thermocouple with Rigid Stainless Steel Sheath with 1 metre PFA lead
Thermocouple Type K JIS
Cable Length 1M
Cable Type PFA
Termination Type Stripped Wires
Sheath Length (mm) 100mm
Sheath Diameter (mm) 4.5mm
Max. Temperature 250°C
Min. Temperature -75°C
Standards Met Class 1
Number of Wires 2
