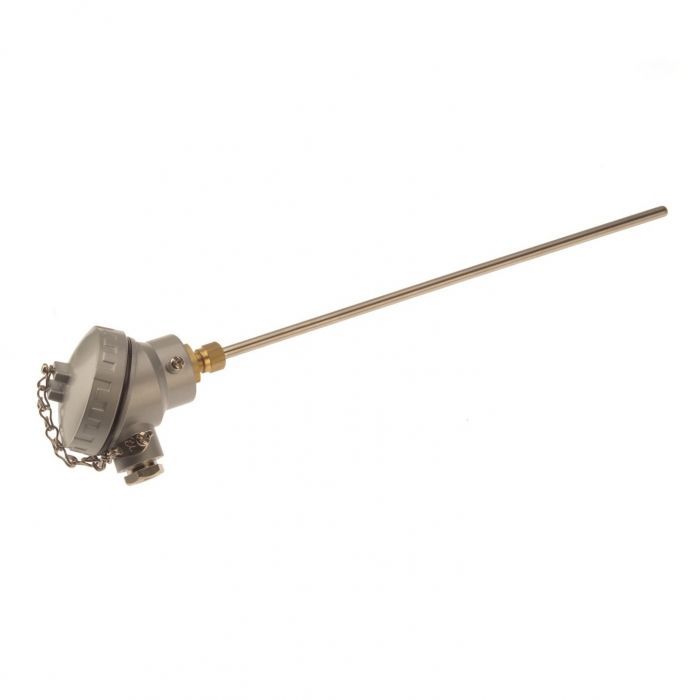

Mineral Insulated Thermocouple with Compact KNS Terminal Head - Type K - 6.0mm Diameter - 200mm Length
Change Currency
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Flexible mineral insulated probe with 310 stainless steel sheath |
|---|---|
| Sensor Type | Type ‘K’ (Nickel Chromium/Nickel Aluminium) to IEC 584 |
| Thermocouple Junction | Insulated hot junction |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 6.0mm |
| Probe Length | 200mm |
| Sheath Material | 310 stainless steel sheath |
| Head Type | KNS, Cast aluminium finish, screw type lid with chain. Head fitted 2-way ceramic block |
| Gland | M16 x 1.5mm Plated brass gland fitted |
| Max. Temperature | +1100°C (Max temp of head is 170°C) |
| Min. Temperature | -40°C |
| IP Rating | IP67 |
